Tascam DR-60D-MKII Audio Recorder for DSLR Cameras

195.00 (including VAT @ 23%)

Available for orderDelivery Information

Item available to order

This item is available to order, and we do not currently have the item in stock.

When you place your order, we will request the item from our supplier as soon as possible. We will dispatch this product to you as soon as it is received from our supplier.

"Estimated delivery to you" is our estimate of when we will be able to deliver the product to you, based on our supplier's normal delivery timescales. If we become aware it is going to take significantly longer than normal to deliver this item, we will let you know, otherwise, we will advise by email or text message when the item has been dispatched from our distribution centre.

Estimated delivery to you: 10th November 2016

Add to Basket

30 day money back guarantee included

30 day money back guarantee included

Once the product is delivered, you have 30 days to decide that you definitely want to keep it. If you decide it is not suitable for any reason, you can return it back to us for replacement or full refund, including standard delivery charges.

All Products are new unless stated, and include a minimum of one year warranty.

Some items are only eligible for money back guarantee if they are returned to us unused and sealed in the original packaging, and in the case of software, unregistered. These items include:

  • Software
  • CDs & DVDs
  • In-ear Monitors
  • Earplugs and Ear Protection
  • Mouthpieces, Reeds etc… for Woodwind and Brass instruments
  • Mouth / Lip Care Products

We are unable to accept returns of any custom made items designed to work together as a unique package, such as computer system built to a customer’s personal specifications. Exceptions may only be possible with prior agreement of the vendor, and may be subject to a cancellation fee.

Optional: 5 year warranty: €12.70
(Includes 90 day money back guarantee)


The product price includes a one year warranty and 30 day money back guarantee.

However, the Gear4music extended warranty scheme provides an enhanced service, and is designed to offer a higher level of protection than many 'free' warranties offered by some retailers and manufacturers.

The highlights of this enhanced warranty service are:

  • Warranty is extended to 5 years from the date of delivery.
  • Our Money Back guarantee is extended from 30 days to 90 days (terms apply after 30 days)
  • Collection and delivery costs are included for the first two years
  • Claim 50% cash back on the cost of the policy after 5 years if it has not been used!
  • Warranty is transferable if the item is re-sold
  • Loan or replacement equipment will be provided if the product isn't repaired within 30 days
  • If an item can not be repaired, a similar alternative product or cash discount (as defined in this policy) will be offered
  • The policy can be cancelled within 30 days, and at any time after that for a pro-rata discount

Please note that this extended warranty is currently only available on products sold within the EU or EEA, and is subject to the terms and conditions as detailed on the extended warranty certificate provided.

For customers in outlying areas of the country, the price of the Extended Warranty may be marginally higher, due to the potential for higher collection and redelivery transport costs.

This enhanced warranty is in addition to the standard Gear4music and manufacturer warranty policies, and the Gear4music terms and conditions of trade. No statement or condition of sale contained within these terms affects or restricts your statutory rights as defined under the Consumer Contracts Regulation 2014.

Product Ref: 41186

  • 4-Track Solid State Recorder
  • HDDA Pre-Amplifiers and CIRRUS LOGIC's AD Converter
  • Versatile Range of Input and Output Connections
  • Lightweight, Intuitive and Durable Construction
  • Compatible with SD and SDHC Cards

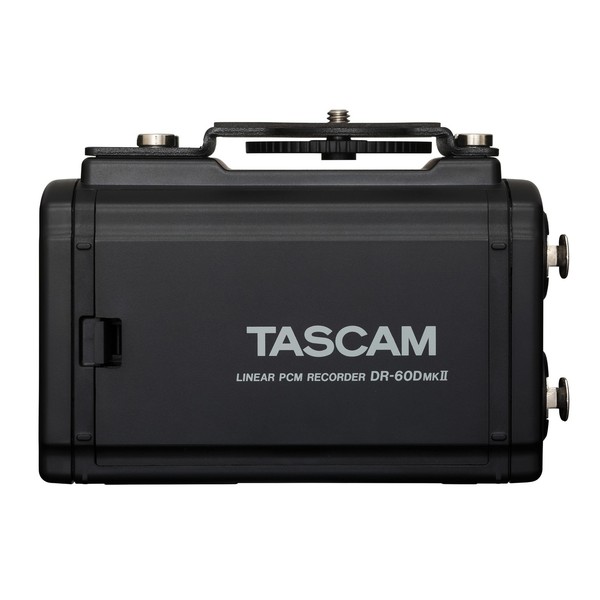

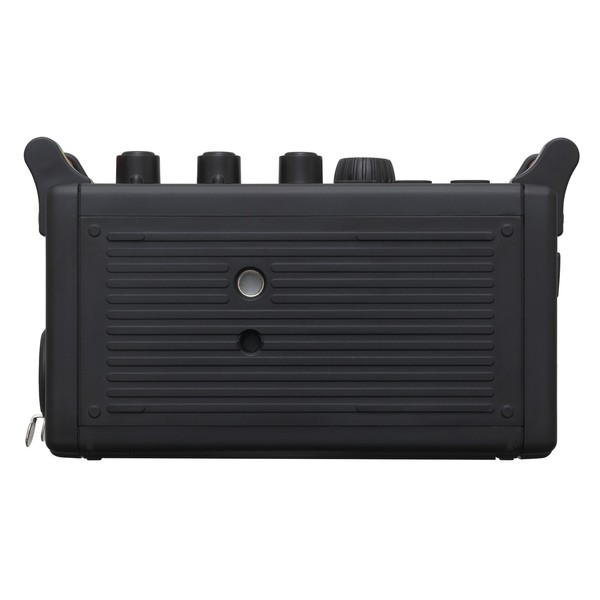

Tascam DR-60D-MKII Audio Recorder for DSLR Cameras


The Tascam DR-60D-MKII Audio Recorder is the perfect solution for filmmakers and videographers recording with DSLR cameras on-set and on-the-go. The DR-60D-MKII is a brand new 4-track, solid state recorder that features high-quality HDDA pre-amplifiers, legendary AD converters and a lightweight yet durable design that can be mounted either above or below DSLR cameras.

Product Ref: 41186

View Full Description

Full Description

View Full Description

High Quality HDDA Mic Preamps

The Tascam DR-60D-MKII features HDDA mic preamplifiers that utilise discrete circuitry and premium parts approved after months of evaluation tests. The HDDA's circuit achieves an incredibly high EIN (-120dBu). In addition, Cirrus Logic's AD converter is installed to ensure high-lineality recording from any input signal.

4 Track Recording

The DR-60D-MKII can record up to 4 tracks simultaneously allowing for various mic set-ups. Inputs 1/L and 2/R can be selected for monaural operation or stereo link operation. There are 3 outputs available on the DR-60D-MKII: a Camera Out for reference track recording to the camera, a Line Out to run to a mixer, and a Headphone Out for direct monitoring.

The DR-60D-MKII supplies mixing functionality to all 4 tracks, with the ability to adjust PAN, Level, Limiters, HPF (40/80/120Hz) and Delay easily from the user-friendly set-up.

Convenient Features

Soft touch keys are featured on the DR-60D-MKII, providing silent operation ideal for sound recording practices. A dedicated camera out connector outputs the sound mixed internally on the DR-60D-MKII. This output is equipped with an adjustable level control dial due to the lack of input level control on most DSLR's, ensuring a quality reference track is recorded onto your camera. The body of the DR-60D-MKII has been manufactured with very rigid plastic for a durable but lightweight design, with the understanding of the importance weight and stability plays when capturing audio and visual content.


  • Record to SD/SDHC card (Up to 32GB)
  • Simultaneously record up to 4 tracks
  • Mono, stereo, dual mono, dual stereo and 4-channel recording modes
  • 44.1/48/96kHz, 16 or 24-bit, WAV/BWF recording formats
  • HDDA microphone preamps wth 120dB EIN and 64dB of gain
  • Recording levels can be adjusted independently for the 1/L, 2/R and 3-4 inputs
  • Two combo XLR/TRS inputs support +4dBu mic/line level input
  • Phantom power to channels 1/2 (24V or 48VDC on XLRF)
  • Plug-in power and high-output mic input supported on inputs 3-4
  • Camera output connector for output from the DR-60DMKII mixer (adjustable gain)
  • Camera input connector for sound monitoring from the camera
  • Independent adjustable line output and headphone jacks for high-quality sound output
  • 50mW/ch headphone amplifier Tripod mounting socket (bottom) and mounting screw attachment (top)
  • Handles protect the screen and can be used to attach a shoulder strap
  • Soft-touch rubber keys for silent operation
  • Hold switch to prevent accidental operation
  • Quick button feature for easy access to various functions
  • 128x64 pixel LCD with backlight
  • USB 2.0 connection for high-speed transferring of files
  • Mini USB cable included
  • Operates on 4-AA batteries, an AC adapter (sold separately) or USB bus power
  • Can extend battery life with BP-6AA battery pack (sold separately
  • Dedicated remote control jack for the wired RC-10 remote control or RC-3F footswitch (both sold separately)
  • Internal mixer with pan and level controls
  • Low cut filter (40/80/120Hz)
  • Limiter (1/L and 2/R can be selected for linked operation)
  • Delay function for microphone distance adjustment (up to 150ms)
  • M-S decode function
  • Slate tone generator (Auto/Manual)
  • Selectable duration of slate tone from four positions (0.5/1/2/3 sec, when auto-generated)
  • Selectable slate tone generation. (3 positions: OFF/HEAD/HEAD+TAIL, when auto-generated)
  • File naming format can be set to use a user-defined word or date
  • Dual-recording function allows two files to be recorded simultaneously at different levels
  • Auto-record function can automatically start and stop recording at set level
  • Pre-recording function allows the unit to record a 2 second sound buffer before recording is activated
  • Self-timer function for solo recording
  • New file starts recording automatically without interruption when maximum file size is reached
  • Track incrementing function allows a recording to be split by creating a new file when desired
  • Jump back and play function
  • Equaliser function for playback, and level alignment function to enhance the perceived overall sound pressure
  • Resume function to memorise the playback position before the unit is turned off
  • Mark function up to 99 points per audio track
  • Divide function


  • Dimensions: 133mm x 93.2mm x 78mm (W x H x D)
  • Weight: 510g (Not Including Batteries)
  • Operating Temperature: 0°C - 40°C
  • Standard Accessories: USB Cable, Warranty Card, Owner's Manual
  • Recording Media:
    • SD Card (64MB to 2GB)
    • SDHC Card (4GB to 32GB)
  • Recording Formats:
    • WAV: 44.1kHz/48kHz/96kHz, 16-Bit/24-Bit
    • BWF: 44.1kHz/48kHz/96kHz, 16-Bit/24-Bit
  • Number of Channels: 4-Channel (Stereo x 2)

Analog Audio Inputs

  • 1/L, 2/R: XLR/6.3mm (1/4'') TRS Standard Jack
  • Mic/Mic + Phantom:
    • Impedance: 2kΩ
    • Minimum Input Level: -72dBu
    • Mic Input Gain: +11dB/+36dB/+52dB/+64dB
  • Line:
    • Input Impedance: 10kΩ or More
    • Standard Input Level: +4dBu
    • Maximum Input Level: +24dBu
  • 3-4 Connector:
    • Connector: 3.5mm (1/8'') Stereo Mini Jack
    • Input Impedance: 10kΩ
    • Maximum Input Level: +10dBV
    • Minimum Input Level: -50dBV
    • Mic Input Gain: +3dB/+26dB/+38dB
  • Camera Input:
    • Connector: 3.5mm (1/8'') Stereo Mini Jack
    • Input Impedance: 10k7#8486;
    • Standard Input Level: -10dBV
    • Maximum Input Level: +6dBV

Analog Audio Output

  • Camera Output:
    • Connector: 3.5mm (1/8'') Stereo Mini Jack
    • Output Impedance: 200Ω
    • Standard Output Level: -50dBV
    • Maximum Output Level: -30dBV
  • Line Output:
    • Connector: 3.5mm (1/8'') Stereo Mini Jack
    • Output Impedance:200Ω
    • Standard Output Level: -10dBV
    • Maximum Output Level: +10dBV

Headphones Output

  • Connector: 3.5mm (1/8'') Stereo Mini Jack
  • Maximum Output Level: 50mW + 50mW


  • Connector: Mini-B Type
  • Format: USB 2.0 High Speed Mass Storage Class


  • Connector: 2.5mm TRS Jack


  • Batteries:
    • Four Alkaline or NI-MH
    • Dedicated External Battery Pack (Tascam BP-6AA, Sold Separately)
  • USB: Bus Power
  • AC: Dedicated AC Adapter (Tascam PS-P515U, Sold Separately)
  • Power Consumption: 5.4W
  • Continuous Operating Time: 2ch WAV, 44.1kHz, 16-Bit Recording

Computer Compatibility


  • OS: Windows XP, Windows Vista, Windows 7, Windows 8
  • CPU: Pentium 3000MHz or More
  • RAM: 128MB or More
  • USB: 2.0 Recommended


  • OS: Mac OS X 10.2 to 10.8
  • CPU: Power PC, iMac, G3, G4 266MHz or More
  • RAM: 64MB
  • USB: 2.0 Recommended
