Telefunken U48 Large Diaphragm Condenser Microphone

11,270.00 (including VAT @ 23%)

Available for orderDelivery Information

Item available to order

This item is available to order, and we do not currently have the item in stock.

When you place your order, we will request the item from our supplier as soon as possible. We will dispatch this product to you as soon as it is received from our supplier.

"Estimated delivery to you" is our estimate of when we will be able to deliver the product to you, based on our supplier's normal delivery timescales. If we become aware it is going to take significantly longer than normal to deliver this item, we will let you know, otherwise, we will advise by email or text message when the item has been dispatched from our distribution centre.

Estimated delivery to you: 7th November 2016
FREE Delivery available.

Add to Basket

1 year warranty and 30 day money back guarantee included

1 year warranty and 30 day money back guarantee included

Once the product is delivered, you have 30 days to decide that you definitely want to keep it. If you decide it is not suitable for any reason, you can return it back to us for replacement or full refund, including standard delivery charges.

All Products are new unless stated, and include a minimum of one year warranty.

Some items are only eligible for money back guarantee if they are returned to us unused and sealed in the original packaging, and in the case of software, unregistered. These items include:

  • Software
  • CDs & DVDs
  • In-ear Monitors
  • Earplugs and Ear Protection
  • Mouthpieces, Reeds etc… for Woodwind and Brass instruments
  • Mouth / Lip Care Products

We are unable to accept returns of any custom made items designed to work together as a unique package, such as computer system built to a customer’s personal specifications. Exceptions may only be possible with prior agreement of the vendor, and may be subject to a cancellation fee.

Product Ref: 72977

  • Includes Flight Case, Shock Mount, Cable and Power Supply
  • Warm Mid Range Ideal for Vocalists
  • Reissue of the Classic Condenser Microphone
  • Cardioid and Bidirectional Polar Patterns
  • Large Frequency Range for Detailed Sound

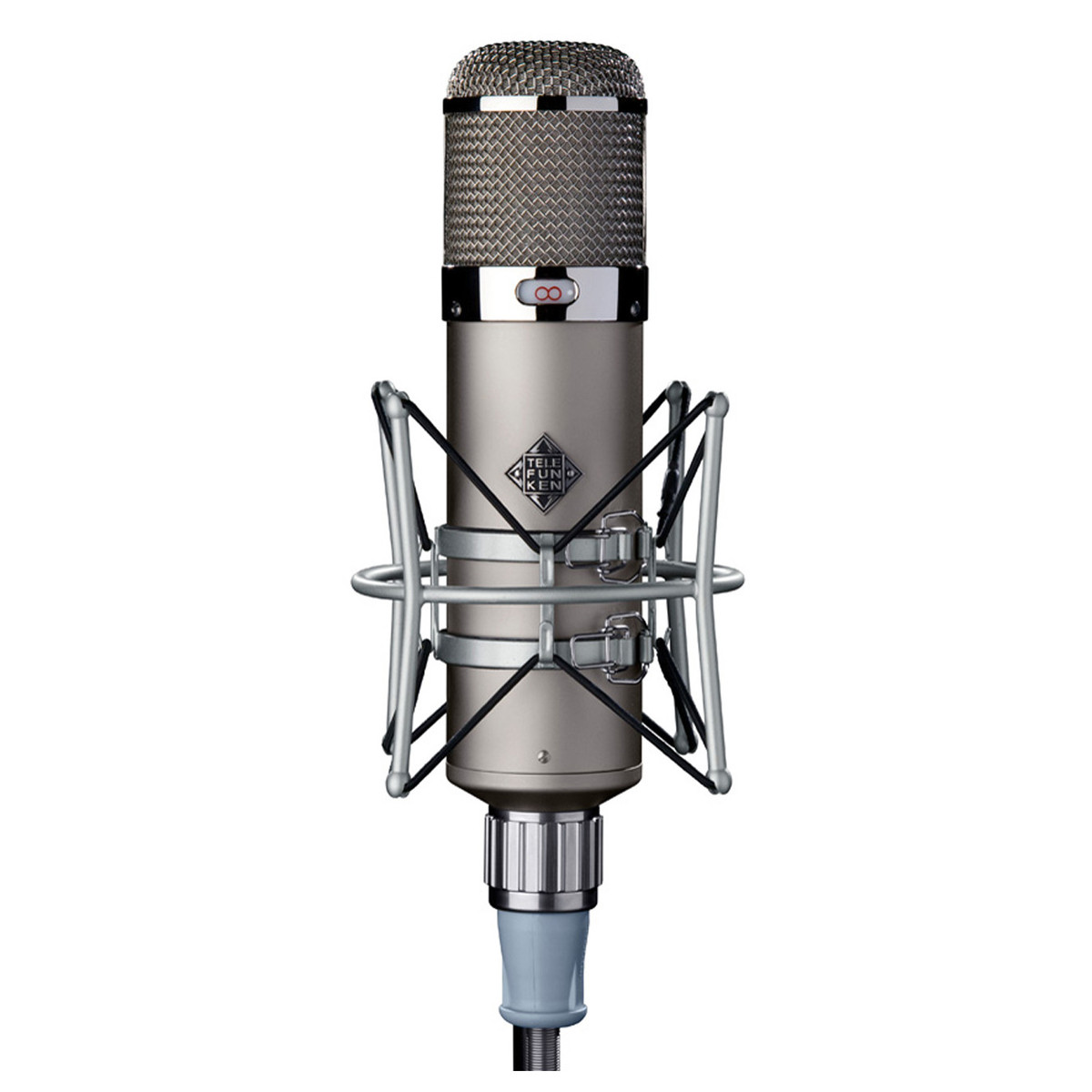

Telefunken U48 Large Diaphragm Condenser Microphone


The Telefunken U48 Condenser Microphone combines classic design with modern standards of production. The charismatic warm mid-range and strong low frequencies make the U48 ideal for vocalists. The frequency focus makes the U48 suitable to record amplifiers, orchestral instruments and ensembles with equal balance and quality. The bidirectional sound is ideal for bands wanting to do live recordings in the studio. This microphone also comes with an M940H power supply, M840H cable, M740 mount, FC40 flight case and a WB40 box.

Product Ref: 72977

View Full Description

Full Description

View Full Description

Originally launched in the 1940s, the U48 has been known to record bands as large as The Beatles. The detail and fidelity that the U48 achieved meant it quickly became used for recording a number of instrument types from drums to chorus ensembles. The reissue remains loyal to its roots, using either cardioid or bidirectional polar patterns to record a variety of instruments. The U48 can be used for drum kit overheads, vocals, or an orchestral ensemble with equally high quality audio pickup. It has also been renowned for live recordings of bands due to its bidirectional pattern.

As well as the microphone itself, the U48 includes useful accessories to assist with your recording. The M940H powers your microphone with the traditional power output of the vintage model. To support this is the modern circuit board and slow ramping filament voltage, which helps prolong your tubes’ life and consistency. The M840H cable has high quality insulation and oxygen free copper conductors for a for premium audio transfer. The rugged FC40 flight case has split compartments to keep your microphone and accessories organised. The M740 shock mount keeps your microphone upright and stable in recording situations. The accessories are ideal to produce the optimum quality from your ELAM 251E microphone.


  • Length: 240mm
  • Diameter: 60mm
  • Weight: 620 Grams
  • Microphone Type: Condenser Pressure Gradient
  • Capsule: M7 - 25.4mm Center Terminated Diaphragm
  • Frequency Range: 20Hz - 20kHz
  • Difference: +/- 3dB
  • Polar Pattern: Cardioid, Bidirectional
  • Sensitivity: 24.5mV/pa +/- 1dB
  • Output Impedance: 400 Ohms
  • Maximum SPL: 127dB
  • Self Noise (Amplifier): 9dBA
  • Tube Type: Telefunken Elektroakustik VF14K
  • Input: Vintage Compatible 6 Pin Female Tuchel
  • Output: 3 Pin Male XLR
  • Supply Current: Less than 85mA
  • Included Accessories: M940H Power Supply, M840H Cable, FC40 Flight Case and a WB40 Box
