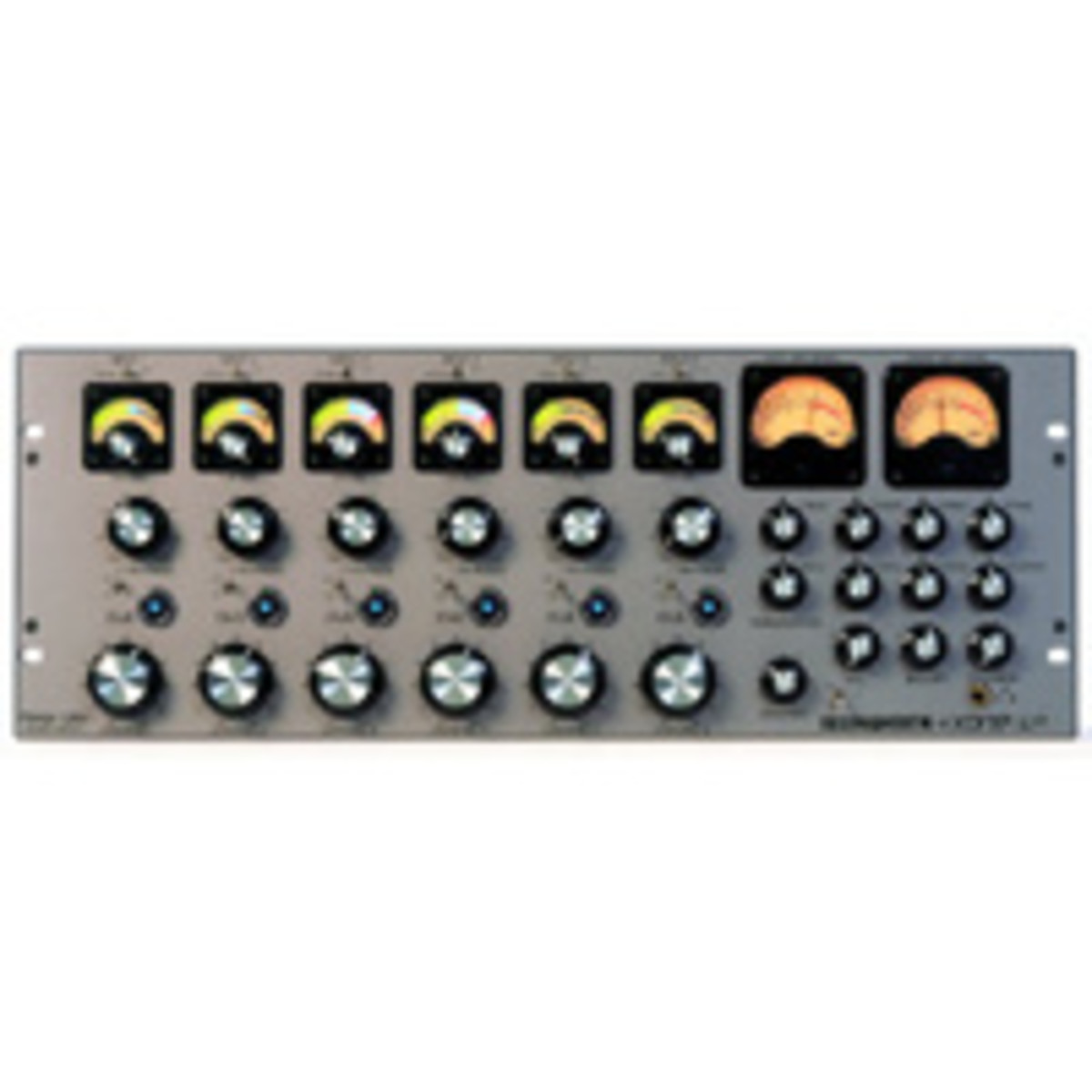

Allen & Heath Xone:V6 rotary valve mixer

Full Description

Xone:V6 is an echo of the earliest days of pro audio, when idealistic individuals created outstanding products free from cost or time constraints. Such creations were never cheap. Nor did they sell in their thousands. But they did become landmark design classics.

6 dual stereo channels with switchable sources [RCA]. CH1-4 are RIAA / Line, CH5-6 are Line / Line [RIAA inputs can be internally configured to line level if desired]. A rotary gain trim control knob is located in the meter housing on each channel - internal options for 0 /+6 / +10 dBu matching

Channels 5-6 each have a stereo valve [tube] preamplifier - ideal for mellowing harsh digital music sources

High quality mic input. Metal shrouded balanced XLR connector on rear panel. Phantom power can be internally selected. A level control and 2 band EQ [120Hz / 2.5kHz] are on the front panel. A toggle switch selects mic on [when off, mic can be cued in headphone monitor]. Rear panel switch routes the mic to the booth output if needed. An insert point [TRS] jack is provided for external processing

A large rotary control for high pass filter is provided on each channel, which sweeps from 30Hz to 600Hz - this is usually the only EQ needed as low end program can be filtered out as channels are mixed, thus preventing phasing and overload. The filter can be switched out using the hi-pass toggle switch. Insert points on each channel [rear - RCA] provide external processing access

Intelligent cue system. Large chromed push buttons on each channel - illuminated by blue LED. Single push operation and auto-cancelling. Headphone monitoring incorporates a �mix/cue` preview control, headphone level, and bass-cut / HF-lift tone control. Front and rear headphone jacks are provided

Precision Penny & Giles conductive plastic rotary controls are provided to mix the level on each channel

Stereo Insert points [RCA] for each channel provide access to use external processing such as FX or EQ. Possible future options for V6 may interconnect here

Rotary control for level. 2 band EQ providing +/- 6dB @ 80Hz and 10kHz. Balanced XLR outputs [+4dBu]. Insert points [TRS] & additional [TRS] jack -2dBu outputs and recording [RCA, -10dBV] outputs are also provided. Twin 1950s design illuminated VU meters provide accurate output level monitoring

Output is balanced XLR at +4dBu. With level control, and 2 band EQ providing +/-6dB @ 100Hz and 10kHz
