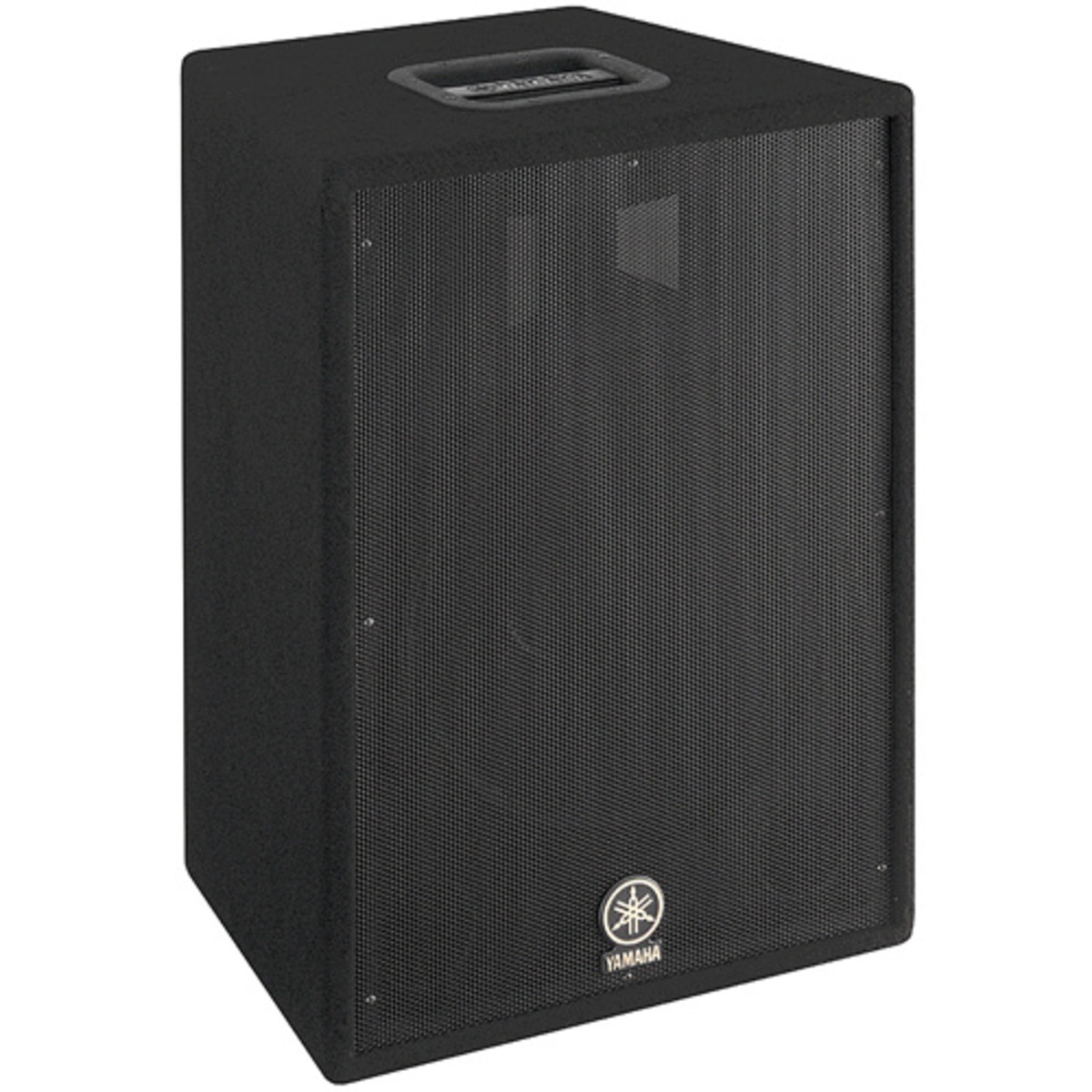

DISCONTINUED Yamaha AX15 European Series Speaker

Full Description

The Yamaha AX15W SUB is a passive, bass reflex type subwoofer, ideal for those installations and applications where price and power matter. It makes an ideal addition to the Yamaha AX10, AX12 or AX15 enclosures to deliver full frequency range coverage. The AX 15W has a pole mount socket on its top for pole-mount integration with a 10, 12, or 15 inch enclosure. The AX15W has a frequency response that covers the low bass range from 50Hz up to 200Hz, with 1000W peak power handling. AX Series speakers sound superb and are capable of handling high power. They are light, compact, portable and rugged. The AX series speakers feature optimally matched high-power woofers/compression drivers, to deliver high powered sound to every corner of the room. The AX15-W is built to Yamaha's usual high standard and is an ideal choice for any expanding club or stage rig.

Specifications

• Pole socket mount
• Hardwearing metal grill
• Durable metal handles
• Speakon connectivity
• Lightweight yet powerful
• Ideally matched to Yamaha EMX powered mixers and P series amplifiers
• Enclosure: Bass reflex type
• Speaker Unit: 15 inch cone
• Frequency Response: 50Hz-200Hz
• Power Capacity PGM: 500W
• Power Capacity MAX: 1000W
• Nominal Impedance: 8 ohms
• Sensitivity: 97dB (1W, 1m)
• Input Connectors: 1/4 inch phone jack × 2, SPEAKON Neutrik NL4MP × 2
• Dimensions (W×H×D/mm): 485 × 618 × 505
• Weight: 26.5kg
