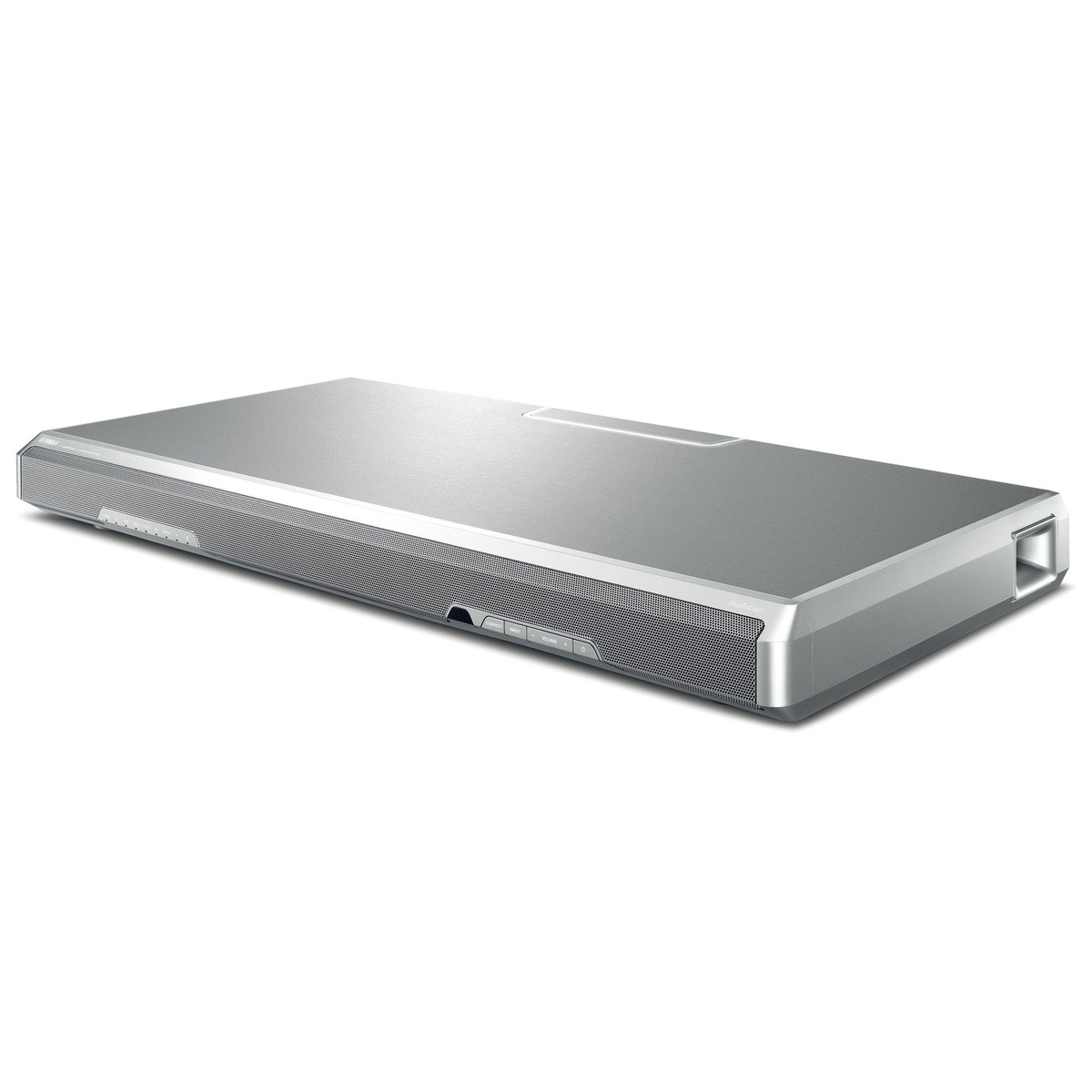

DISC Yamaha SRT1500 Soundbase Sound Projector with MusicCast, Silver

  • Video 1
  • Video 2
658.00 RRP 693.00 (including VAT @ 23%)

This product is currently not available for purchase

  • MusicCast, Wi-Fi, Bluetooth and AirPlay Connectivity
  • Simple Setup and Operation via iOS and Android App
  • Wide Body Design Suitable for Large Size TVs
  • Dual Built-In Subwoofers, Woofers and 8 Beam Drivers
  • Delivers Clear, Detailed and Immersive Sound with Rich Bass

DISC Yamaha SRT1500 Soundbase Sound Projector with MusicCast, Silver


The Yamaha SRT1500 Soundbase Sound Projector provides you with the ability to experience surround sound from an elegant sound base with dual built-in subwoofers, dual woofers and 8 beam drivers. The SRT1500 utilises Yamaha's exclusive Digital Sound Projector technology to reproduce sound beams that reflect off the walls of your room, delivering true 5.1-channel surround sound and an immersive listening experience that brings your favourite TV shows and movies to life.

Product Ref: 64694

View Full Description

Full Description

View Full Description

True Realism and Powerful Surround Sound

The SRT1500 Sound Projector large cabinet housing is built using MDF materials, ideal for producing high quality sound, with a central array of eight beam speakers that create Yamaha's original Digital Sound Projector sound beams. This array of speakers deliver surround sound that is real and expansive and with two subwoofers mounted on the bottom, it not only reproduces rich bass but also allows independent left and right control.


MusicCast makes it easy to bring music to every room in your house - It simply connects to your existing wi-fi network and provides you with the ability to wirelessly stream audio to any room in your house. Any MusicCast system can be easily extended to meet your needs, with a wide range of products available including AV receivers, hi-fi systems and wireless speakers. For example; Start with a MusicCast Sound Projector, then add a MusicCast capable AV receiver in your main entertainment room for the ultimate home theatre experience and add MusicCast wireless speakers or hi-fi components into other rooms, link them all together wirelessly and experience sound like never before.

MusicCast allows you to stream music directly from your smartphone or tablet via Bluetooth® or AirPlay®, as well as giving you the ability to play/pause and adjust the volume all from within the simple and intuitive MusicCast app. The MusicCast app also gives you the ability to select what music plays in each room, link and combine music from one room to another, have different music playing in each room, or join them together have the same music playing all around your house.

Simple Setup and Operation

The SRT1500 is compatible with a free controller app designed for iOS and Android. The easy-to-see and easy-to-use operating screen makes it simple to adjust a variety of settings for the beam sound output, ensuring that you get the best possible true 5.1-channel surround sound out of the SRT1500.

Cinema DSP Programs

Cinema DSP technology creates incredible soundscapes in any room. Simply use the remote control to select from the five different programs, including movie, music, sports, game or TV program. By being able to select a DSP program that is relevant to the content you're watching, the YSP1600 guarantees to deliver excellent and dynamic sound every time.


  • MusicCast for audio enjoyment in every room
  • Compatible with various music streaming services
  • Digital Sound Projector technology
  • Eight array speakers produce true 5.1-channel surround sound
  • Built-in subwoofers with bass reflex ports reproduce excellent rich bass
  • Provides a choice of five Cinema DSP programmes
  • Compatible with DTS and Dolby Digital
  • Supports high resolution audio codec
  • Home Theater Controller (WLAN) app enables detailed settings and easy operation
  • Beam setup for adjustment of beam directionality for room size and listening position
  • Bluetooth® and AirPlay® connectivity
  • Supports Bluetooth output for pairing with other Bluetooth products
  • HDMI input with 4K60P pass-through and HDCP 2.2
  • Simple-to-connect terminals
  • Wide body suitable for large size TVs
  • High quality gloss hairline finish on the top and side panels
  • OSD supports overlay and ten languages
  • HDMI CEC and Audio Return Channel compatability
  • Subwoofer output connector


  • Drivers: 8 x 2.8cm Beam Drivers
  • Output Channel: 5.1-Channel
  • Output Power: 140 W Total
    • 2 W x 8 (Beam Drivers)
    • 30 W x 2 (Woofer)
    • 60 W (Subwoofer)
  • Power Consumption: 25 W
  • Standby Power Consumption: 0.4 W - HDMI Control + Network Standby Off)
    • 1.8 W - Network Standby On + Wi-Fi Connection
  • Woofer: Dual 4cm x 10cm Woofers
  • Subwoofer: Dual 8.5cm Subwoofers
  • Dimensions: 780mm x 77mm x 370mm (W x H x D) - Without Antenna
  • Weight: 9.3kg / 20.5lbs

Input / Output

  • HDMI: 1 x Input + 1 x Output
  • Digital Optical: 1 x Input
  • Analog Audio: 1 x Input - Stereo Mini Jack
  • Subwoofer Output: Yes


  • 4K Pass-Through: Yes - 60p
  • 3D Pass-Through: Yes
  • ARC: Yes
  • CEC: Yes
  • Auto Lip-Sync: Yes

Sound Technology

  • Surround Technology: Digital Sound Projector
  • Cinema DSP Movie: 1
  • Cinema DSP Music: 1
  • Cinema DSP Entertainment: 5 - Movie, Music, Sport, Game, TV Programmes

Audio Formats

  • Dolby Digital: Yes
  • Dolby Pro Logic II: Yes
  • DTS: Yes
  • LPCM: Yes


  • Wireless Music Streaming: Yes - Via Bluetooth or Wi-Fi
  • Wi-Fi: Yes - Wireless Direct
  • AirPlay: Yes
  • Bluetooth: Yes
    • Maximum Connection Range: 10m / 33ft 10''
  • Ethernet: Yes
  • App Control: Yes - MusicCast Controller, Home Theater Controller (WLAN)
  • TV Remote Repeater: Yes
