Crumar Mojo Suitcase Virtual Tonewheel Organ - Secondhand

Full Description

Hands-on control built for performance

The Mojo Suitcase puts all the most important controls right where you need them. You get dedicated knobs for volume, overdrive and reverb on the left panel, so you can tweak them easily while playing. It also includes specific buttons for percussion control, vibrato activation, rotary speed, and more. Two groups of drawbars let you shape upper and lower manual tones independently, with additional controls for pedalboard drawbars. With drawbar hold, storage, and recall functions, switching between sounds mid-song is easy.

Other tactile controls include EQ knobs for bass, mid and treble, a vibrato selector with LED feedback, and a shift function for added features like transposition and rotary bypass. These are designed with live play in mind, so you can make precise adjustments without interrupting your flow.

Realistic tonewheel modelling with full customisation

The heart of the Mojo is its virtual tonewheel engine, offering detailed emulation of classic B, C and A series organs. With 91 individually modelled tonewheels and accurate phase syncing, it recreates the nuances of vintage gear. You can choose from 22 different tonewheel sets, then apply generator shaping to create up to 154 variations. Further adjustments include leakage noise, crosstalk levels, and resistor wiring types.

Extra options such as foldback on 16’, complex tonewheels for pedals, and string bass with adjustable release time help tailor the response. There’s also full control over percussion, including decay time, volume, and the option to bypass decay completely with the Perc Paradise Mod.

Built-in rotary speaker with adjustable realism

The rotary speaker sim adds depth and motion to your sound. It includes independently adjustable horn and bass rotor speeds, as well as separate up and down acceleration times. You can control the simulation in real time using the ROTARY SPEED button, switching between slow, fast, and brake positions. When braking, the rotors respond naturally, with realistic deceleration due to centrifugal force.

There’s also control over microphone positioning, cabinet resonance, tube overdrive and feedback. You can even dial in environmental reflections using the ambience setting, giving your sound the sense of being played through a real amp in a real space.

Flexible connectivity and digital editing

The Mojo Suitcase supports both wired USB and optional Wi-Fi editing, letting you fine-tune settings via a web app. MIDI In and Out ports allow you to integrate it into your wider setup, and there’s support for pedal sustain and manual splits, so you can tailor the keyboard layout to suit your playing style. Each manual can be split, with an adjustable split point, allowing more flexible use of the two 61-note keyboards.

Features

• Powered by a dedicated DSP engine based on the GSi VB3-II tonewheel organ core
• Delivers full polyphony with 147-note capability across two manuals and pedalboard
• Emulates 91 tonewheels with phase-sync, leakage noise, crosstalk, and resistor wiring variations
• Offers 22 tonewheel generator types and shaping controls for 154 unique generator combinations
• Includes complex pedal tonewheels, foldback deactivation, and adjustable global tuning
• Supports realistic motor flutter, key contact simulation, and dynamic loudness robbing
• Single-triggered percussion with customizable decay, volume, and capacitor discharge behavior
• Scanner vibrato and chorus with six selectable modes and adjustable depth and mix
• Advanced rotary speaker simulation with horn/bass speed, acceleration, braking, and cabinet resonance controls
• Ambience setting adds room reflections for a more lifelike sound stage
• Dual 61-note semi-weighted waterfall keyboards with velocity sensitivity
• Two drawbar groups with pedalboard drawbars and presets for fast sound switching
• Hands-on control with dedicated knobs for key click, crosstalk, drive, EQ, and more
• Includes pedal-to-lower option, split manual capability with adjustable split point, and pedal sustain
• Real-time rotary speaker speed control with slow, fast, and brake modes
• Shift function provides access to transpose, rotary bypass, and other alternate controls
• Connects via MIDI and includes USB and optional Wi-Fi for remote editing

Specifications

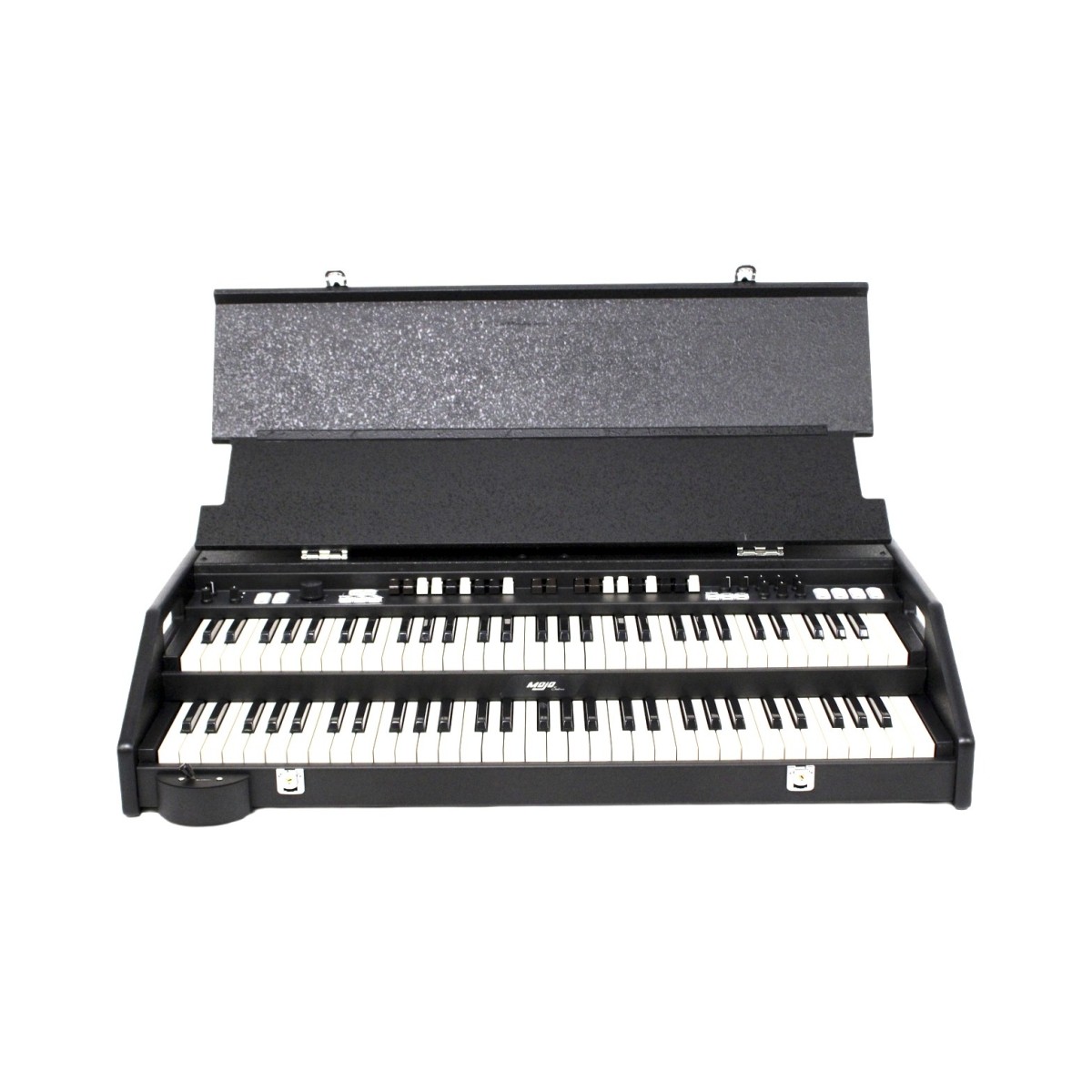

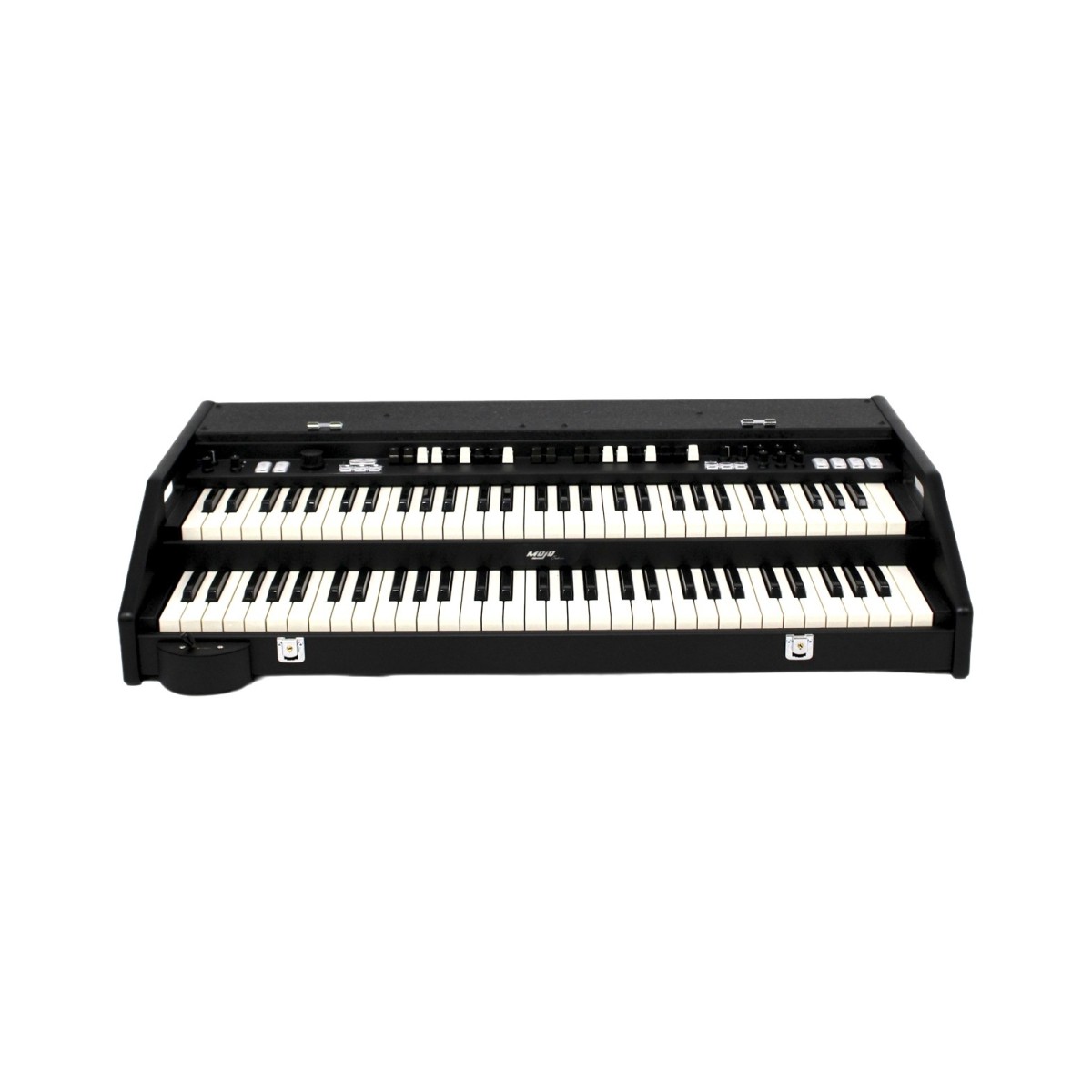

• Keyboard: Dual Manual Organ With Two 61-Note 5 Octave C - C Waterfall Semi-Weighted Velocity Sensitive Keyboards
• Synthesis: Physical Modeling Tonewheel Organ Synthesis
• Rotary Speaker: Rotary Speaker Simulation
• Reverb: Stereo Digital Reverb
• Connectivity: External Optional Wi-Fi Antenna For Connecting A Smartphone/Tablet/PC And Accessing The Editor Web-App
• Editor: Online USB Wired Editor
• Drawbars: Two Groups Of 9 Real Drawbars Plus 2 Pedalboard Drawbars
• Controls: Knobs For Volume, Drive, Reverb, Keyclick, Crosstalk, Percussion Volume, Balance, Distance, Bass, Middle, Treble
• Percussion: Four Dedicated Buttons For Tonewheel Organ Percussion
• Vibrato: Dedicated Buttons For Vibrato On/Off
• Vibrato Type: Vibrato Type Knob
• Drawbar Hold: Drawbar HOLD Mode For Alternate Drawbar Settings
• Presets: Two Drawbar Presets Per Manual With Easy Storage Mode
• Rotary Effect: Dedicated Button For Rotary Effect Speeds
• Pedal Function: Pedal To Lower Function (Adds The Sound Of Pedalboard To Lower Manual)
• Alternate Functions: Shift Button For Alternate Functions (Transpose, Rotary Bypass)

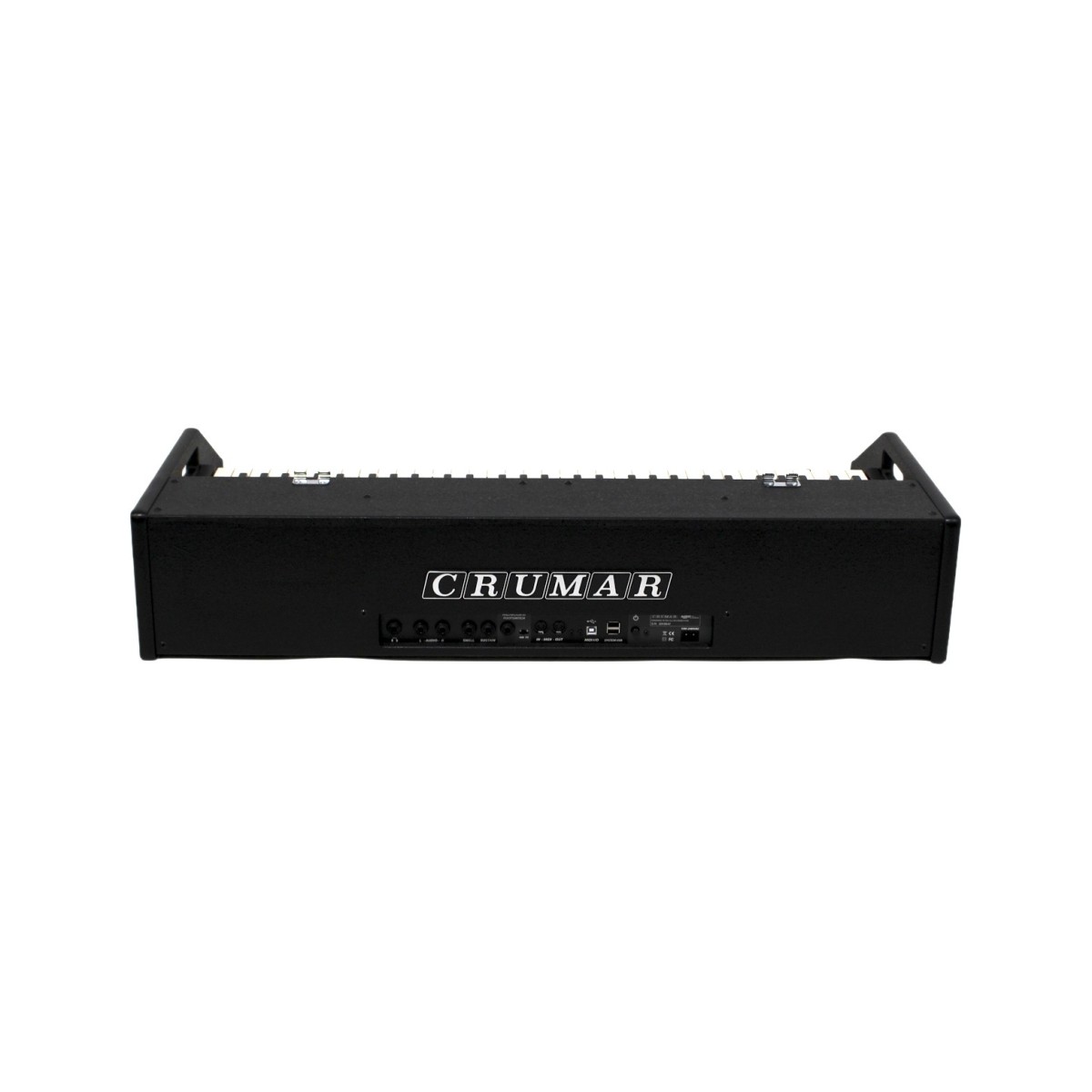

• MIDI Connections: MIDI IN And OUT Connections
• USB Device: USB Type B (Device) For MIDI IN/OUT
• USB Host: 2 USB Type A (Host) For Software Updates And Wi-Fi Module
• Audio Outputs: Balanced Audio Outputs
• Headphones: Headphone Jack
• Pedal Inputs: Expression Pedal Input, Sustain Pedal Input
• Footswitch: Halfmoon Or Footswitch Input With Dedicated Selector
• Power Input: AC In 100-240V
• Power Rating: 100V AC 240V AC
• Output Level: +4 dBu
• Headphone Load: Headphone Output Max Load: 32 Ohm
• Dimensions: Cm 95 x 55 x 17
• Weight: 18 Kg
• Product Code: MOJO-SC
