DISC Roland TR-09 Rhythm Composer - Nearly New

This product is currently not available for purchase
NEARLY NEW

Key Features

  • Ultra-Compact Recreation of the Iconic TR-909 Drum Machine
  • 24-Bit/96 KHz Stereo IN/OUT USB Audio Interface
  • Retains Sound, Character, and Interface of the Original TR-909
  • Highly Portable for Mobile Music Making
  • Compatible with Optional K-25m Keyboard Unit

DISC Roland TR-09 Rhythm Composer - Nearly New Overview

The Roland TR 09 packs the power of the original TR-909 into a new, ultra compact design at an affordable price. Using Roland's advanced Analog Circuit Behavior, the TR-09 drum machine recreates the influential hybrid sound of the original. A choice of Step or Tap write modes are available, with a familiar 16-step TR-REC programming style. The Roland TR09 offers more control and live customisation over parameters whilst your tracks are playing, providing more flexibility. With a wealth of connectivity options including MIDI, USB, and even trigger ports allowing control of vintage analog synths and other modular gear, the Roland TR-09 even functions as a high-quality audio interface for your DAW.

Nearly New: This product may have been opened for quality control purposes, returned by a customer, refurbished, or may have non-essential parts or software missing. Otherwise, the product operates as new. This is a great opportunity to buy a fully functioning product at a discounted price.

Product Ref: 122600

Full Description

View Full Description

Advanced Analog Circuit Behavior

The Roland TR-09 features a choice of either Step and Tap write modes, with support for shifting between modes during pattern playback. The TR-09 sequencer has 16 steps, each with 16 sub-steps for tweaking your performances so that they are right for you. Just like the original, the TR-09 allows you to select Shuffle/Flam with dedicated buttons, however a display with a rotary encoder is also provided for more precise control over your patterns. Roland have used their new advanced Analog Circuit Behavior to offer the most realistic, classic recreation of the original sounds from the TR-909 to enable users to experience the influential sounds whilst retaining the ability to edit and tweak multiple parameters.

Versatile Connection of External Gear

The Roland Boutique TR-09 is designed to provide simple connectivity, featuring a range of multi-purpose outputs. The outputs include a main stereo mini-jack output which can be configured to send the selected instrument to the right channel, while the other instrument's output can be sent to the left. The USB and MIDI ports allow for syncing and controlling other gear as well as connection with your DAW. Mix input and trigger output can also be reconfigured to route external audio and even drive vintage analog synths, enabling you to harness a broader scope of audio possibilities whilst working with your TR-09.

Increased Versatility

The Roland Boutique TR-09 Rhythm Composer also functions as a high-quality 24-bit/96 kHz audio interface to provide a simple and effective way of recording straight to your DAW. With a choice of USB or battery power, the TR-09 functions just as well on the road as in the studio. 4 x AA batteries provide the TR-09 with sufficient power, or connect to a USB power source to utilise USB bus power.

Features

  • Ultra-compact recreation of the iconic TR-909 drum machine
  • Retains the sound, character, and user interface of the original TR-909
  • Hands-on control over many parameters, including tune, level, decay, etc.
  • Programmable via classic Step and Tap write modes
  • Continue playing beats even while switching between write and play modes
  • Four separate outputs via USB audio
  • Trigger output for controlling external instruments equipped with trigger input
  • High-quality construction with metal front panel
  • Highly portable for mobile music making
  • Battery-operated (4 x AA) or USB powered
  • 24-bit/96 kHz stereo IN/OUT USB audio interface
  • Built-in powered mini-speaker for instant enjoyment
  • Compatible with optional K-25m Keyboard Unit

Specifications

User Memory
  • Patterns: 96 (2 banks x 3 groups x 16 patterns)
  • Tracks: 8 (2 banks x 4 tracks)
  • Kit: 1
Steps
  • 16 steps with 16 sub steps
Instruments
  • BASS DRUM
  • SNARE DRUM
  • LOW TOM
  • MID TOM
  • HI TOM
  • RIM SHOT
  • HAND CLAP
  • CLOSED/OPEN HI HAT
  • CRASH CYMBAL
  • RIDE CYMBAL

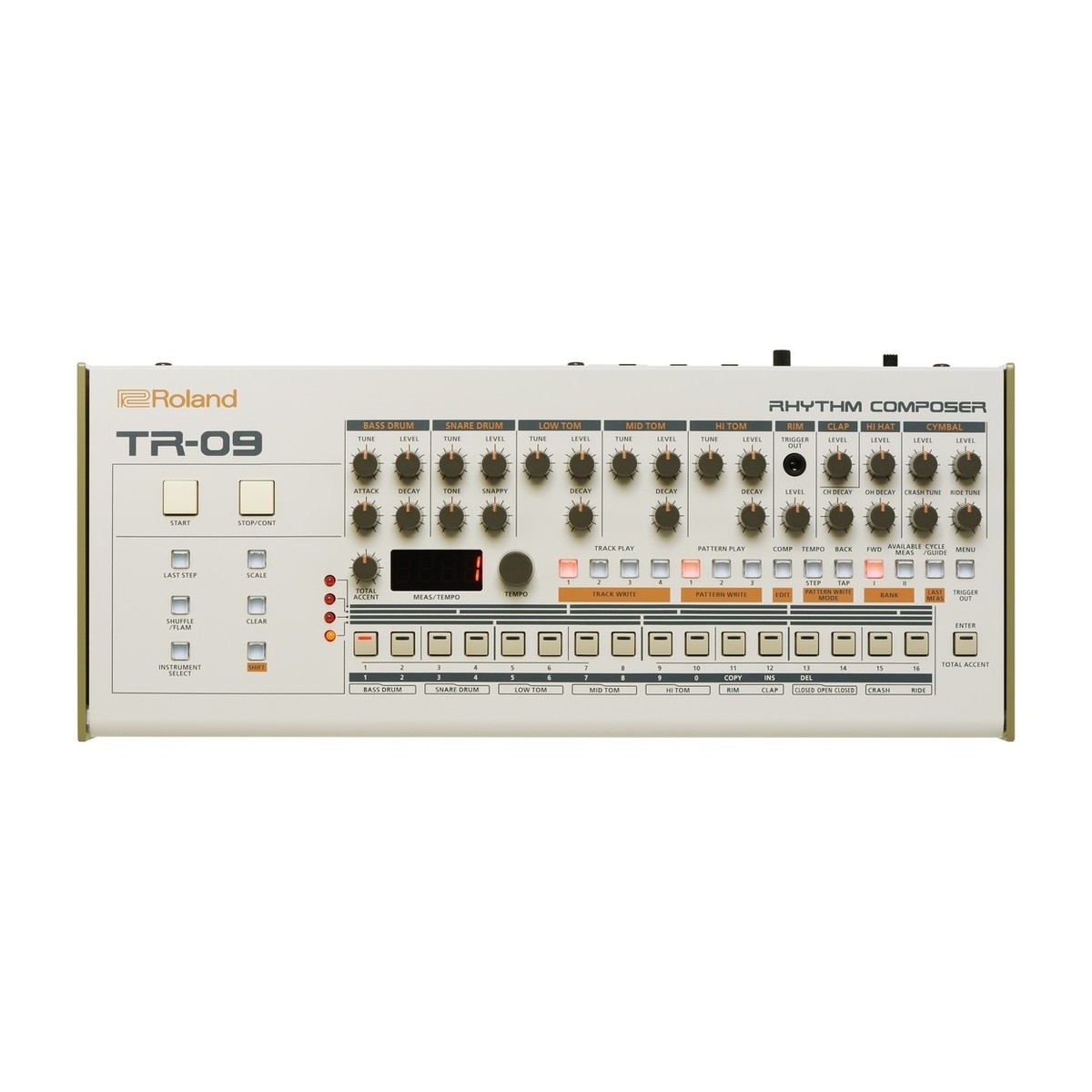

Controllers
  • VOLUME knob
  • START button
  • STOP/CONT button
  • LAST STEP button
  • SCALE button
  • SHUFFLE/FLAM button
  • CLEAR button
  • INSTRUMENT SELECT button
  • SHIFT button
  • TOTAL ACCENT knob
  • TEMPO dial
  • TRACK 1--4 buttons
  • PATTERN 1--3 buttons
  • COMP button
  • TEMPO button
  • BACK button
  • FWD button
  • AVAILABLE MEAS button
  • CYCLE/GUIDE button
  • MENU button
  • ENTER button
  • Main keys 1--16 (16 step buttons)
  • BASS DRUM: TUNE, LEVEL, ATTACK, DECAY knobs
  • SNARE DRUM: TUNE, LEVEL, TONE, SNAPPY knobs
  • LOW/MID/HI TOM: TUNE, LEVEL, DECAY knobs
  • RIM/CLAP: LEVEL knob
  • HI HAT: LEVEL, CH DECAY, OH DECAY knob
  • CRASH CYMBAL: LEVEL, CRASH TUNE knob
  • RIDE CYMBAL: LEVEL, RIDE TUNE knob
Effects
  • Compressor
Indicators
  • 7 segments, 4 characters (LED)
  • Scale LED

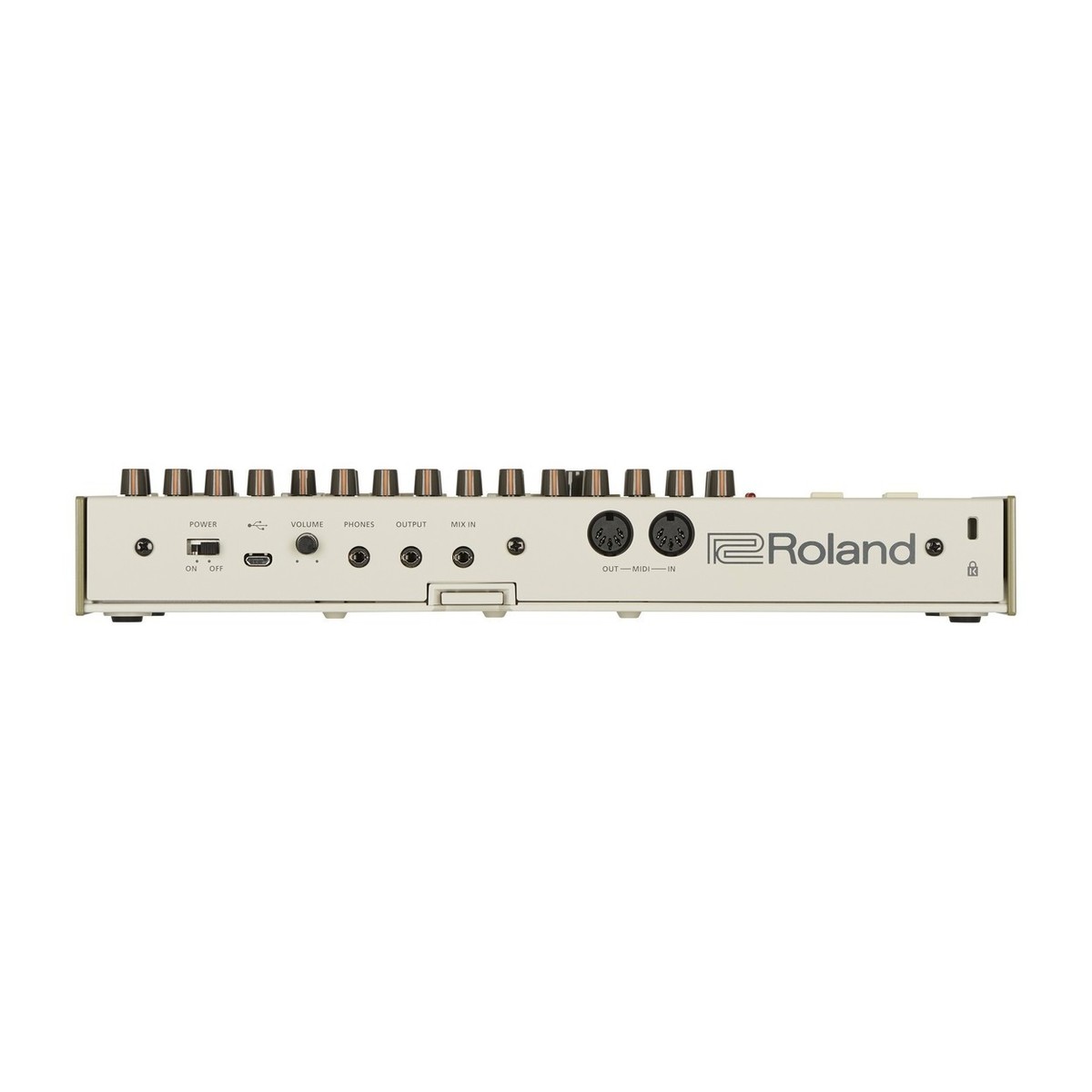

Connectors
  • TRIGGER OUT jack: Mono miniature phone type
  • PHONES jack: Stereo miniature phone type
  • OUTPUT jack: Stereo miniature phone type
  • MIX IN jack: Stereo miniature phone type
  • MIDI: IN, OUT connectors
  • USB port: Micro-B type (Audio, MIDI)
Power Supply
  • Rechargeable Ni-MH battery (AA, HR6) x 4
  • Alkaline battery (AA, LR6) x 4
  • USB bus power
Current Draw
  • 500 mA (USB bus power)
Expected battery life under continuous use
  • Rechargeable Ni-MH battery: Approx. 6 hours
  • This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.
Dimensions
  • 308 (W) x 130 (D) x 51 (H) mm
  • 12-1/8 (W) x 5-1/8 (D) x 2-1/16 (H) inches
Weight (including batteries, excluding Boutique Dock)
  • 980 g
  • 2 lbs 3 oz
Accessories
  • Boutique Dock: DK-01 (Ivory)
  • Owner's Manual
  • DK-01 Owner's Manual
  • Leaflet "USING THE UNIT SAFELY"
  • Alkaline battery (AA, LR6) x 4
