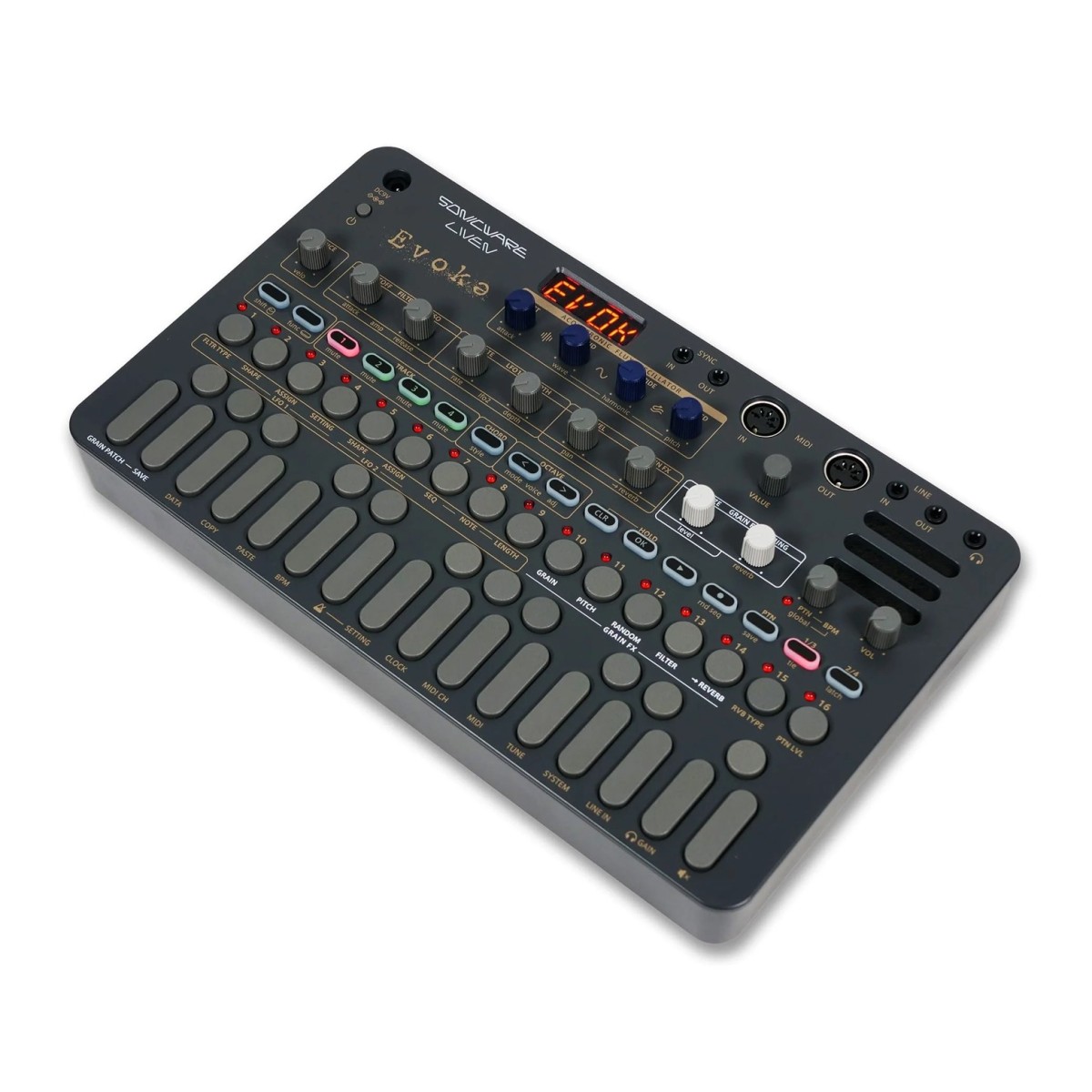

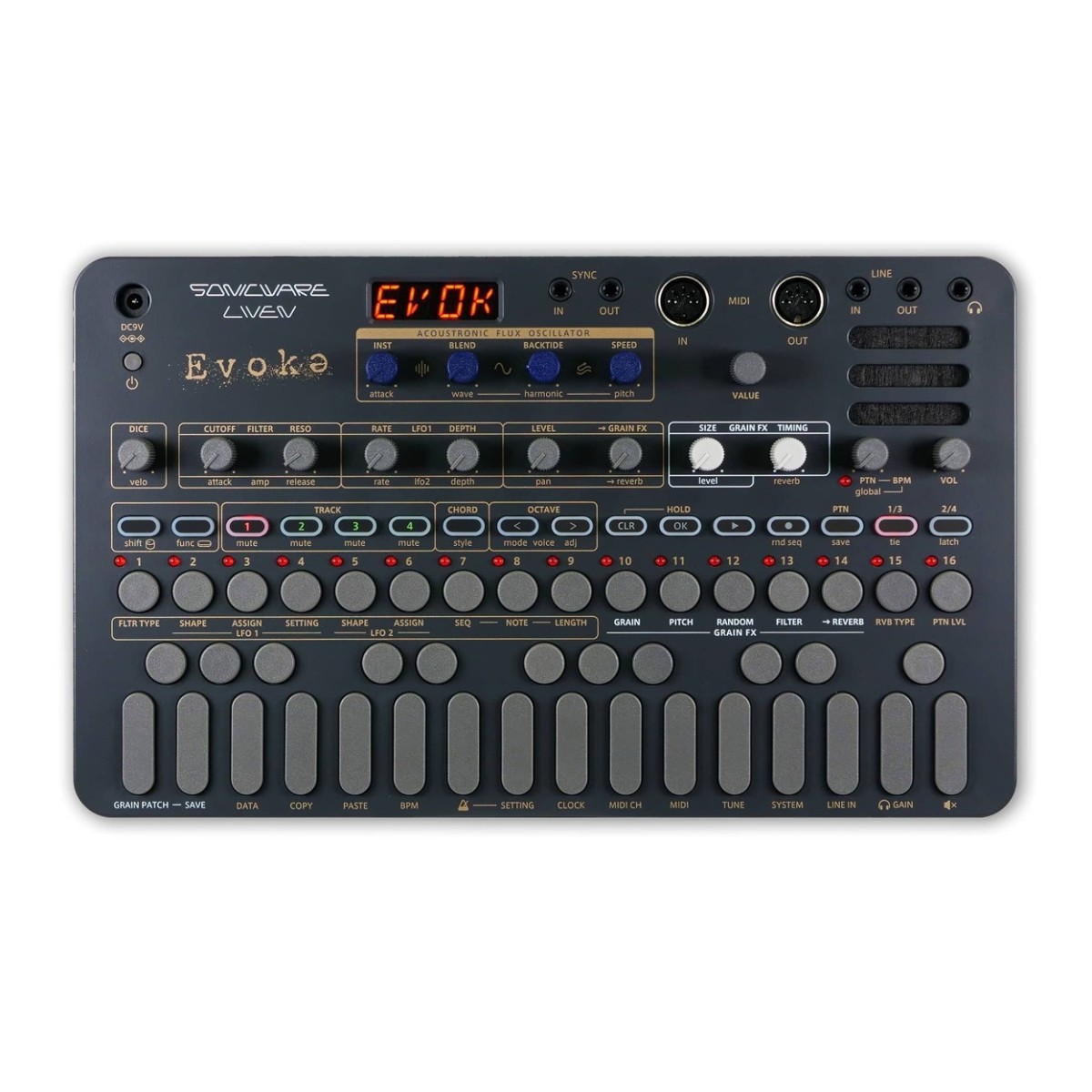

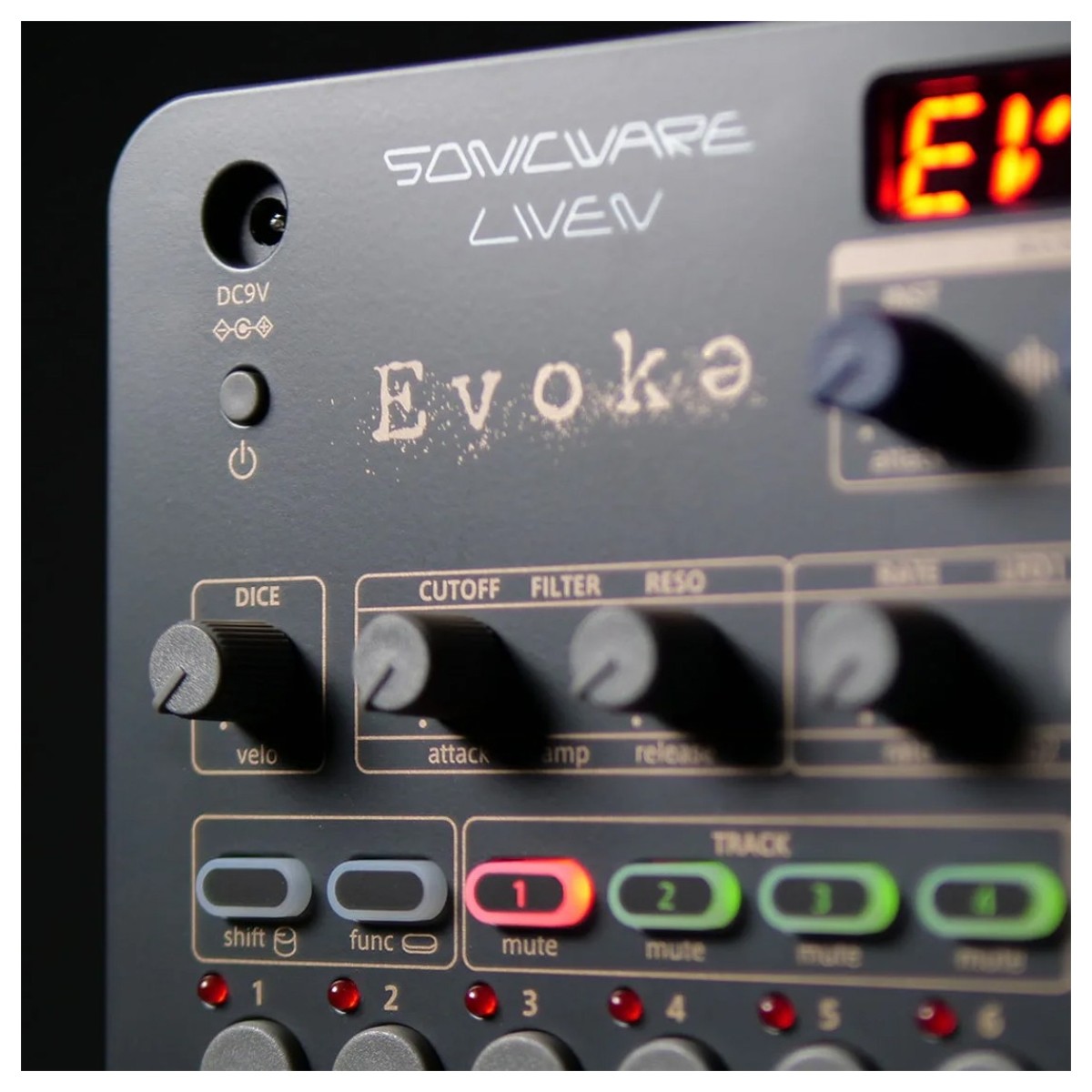

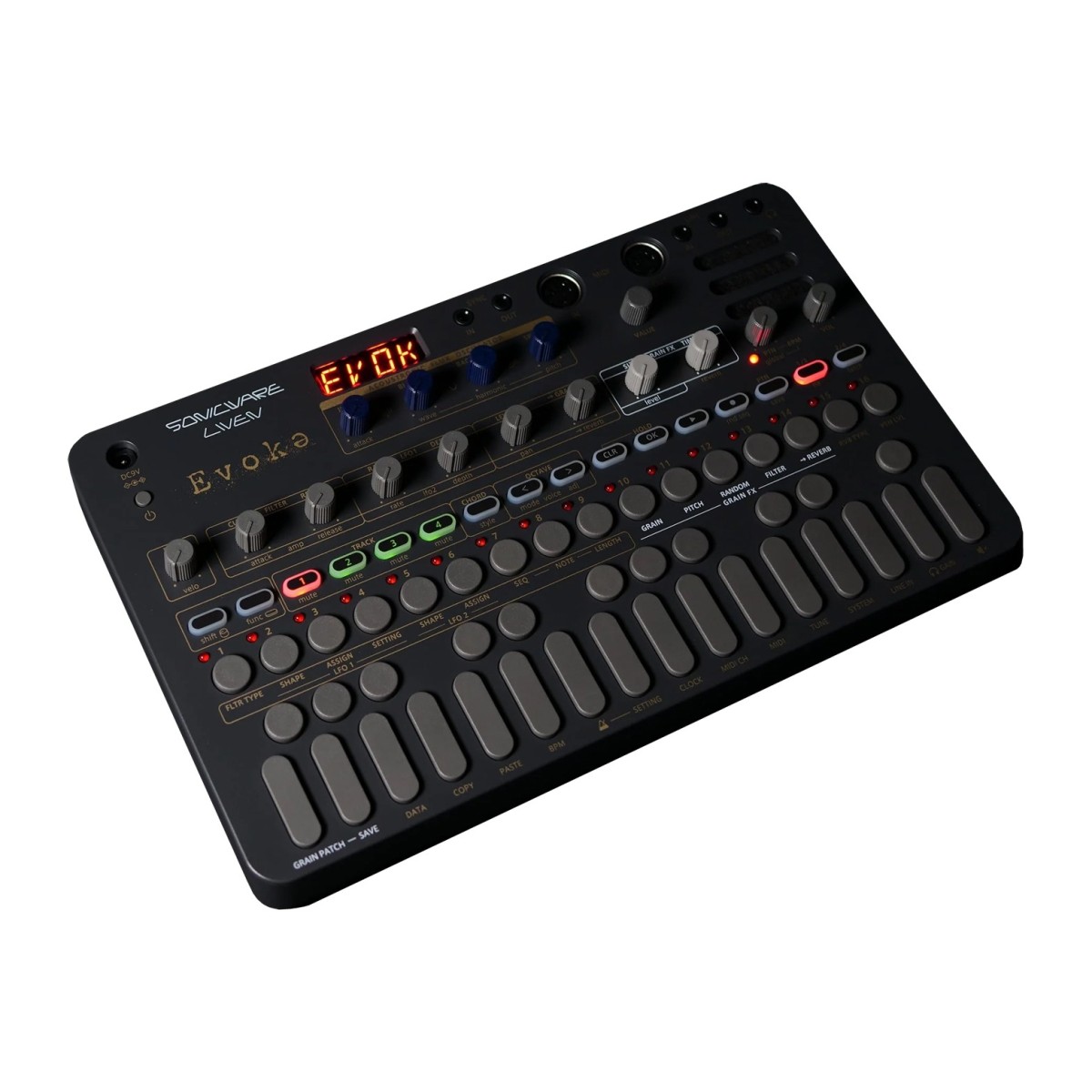

Sonicware LIVEN Evoke

Full Description

Distinctive acoustronic synthesis

The Acoustronic Flux Oscillator is the core of the LIVEN Evoke, producing a unique blend of acoustic and electronic tones. It combines 34 sampled acoustic instruments, each with 256 Acoustic Characteristic Arrays, with 20 waveforms that deliver harmonic and textural variation. This fusion results in sounds that evolve naturally, ranging from nostalgic upright pianos to abstract drones.

Backtide modulation reverses and modulates the acoustic elements, creating undulating motion ideal for ambient music and soundscapes. The engine also includes filtered white noise sources and pitch control across ±2 octaves, giving you flexibility to sculpt everything from subtle, organic tones to harmonically rich pads and experimental textures. By blending INST and WAVE layers, you can create sound palettes that feel both familiar and otherworldly.

Musical granular effects

Grain FX transforms standard sounds into dynamic, shifting textures by slicing phrases into micro-grains. The effect’s buffer size syncs to your project tempo, allowing time-stretched or harmonised grains to integrate seamlessly with your music. Grain pitch can be set to octaves, fifths, or musical scales, while controls for grain shape, time warp, and spatial positioning make it possible to create anything from shimmering atmospheres to glitchy rhythmic patterns.

With 16 editable presets, Grain FX is straightforward to use and can be applied per track or to external stereo inputs, expanding your creative possibilities during both performance and recording. It allows you to push traditional sound design further, creating textures that evolve and transform over time.

Immersive reverb selection

The LIVEN Evoke features 10 reverb algorithms designed to add depth, space, and warmth to your compositions. From short reflective rooms to the ethereal ‘Mirage,’ each reverb is tuned for ambient and cinematic applications. Send levels are adjustable for each track, enabling precise control of spatial placement.

Combining reverb with Grain FX opens up expansive sound design opportunities, such as shimmer-like textures or evolving atmospheric beds. This pairing is particularly suited to building meditative or soundtrack-style pieces that require both movement and depth.

Compact 4-track sequencing

The built-in sequencer offers 64 steps per pattern across 4 tracks, with up to 128 patterns available for saving. It captures both note input and sound parameter adjustments using Parameter Lock, so every detail of your performance is preserved. You can record in real time, step-by-step, or add notes on the fly for fluid composition.

Probability settings, random phrase playback, and 16 preset patterns encourage experimentation. With One-Finger Chord mode, Note Hold, and MIDI or SYNC connectivity, the sequencer is a powerful tool for building intricate ambient arrangements. Combined with its portable, battery-powered design and built-in speaker, the Evoke lets you create music anywhere, free from the constraints of a fixed setup.

Features

• Ambient music box with four synthesized acoustic instruments designed for cinematic and post-classical soundscapes
• Acoustronic Flux Oscillator blends acoustic instrument characteristics with electronic textures
• INST engine includes 34 acoustic instruments with 256-characteristic arrays and BACKTIDE modulation
• WAVE engine offers 20 harmonic waveforms and two filtered white noise generators
• Grain FX granular engine for transforming phrases into musical glitches and evolving textures
• 16 Grain FX presets with customizable pitch harmonization, buffer sizes, and user patch slots
• 10 reverb types including the deep ambient Mirage for rich, multi-dimensional spaces
• 4-track LIVEN sequencer capable of recording performances and parameter changes
• Sequence up to 64 steps per pattern with real-time, step-by-step, or live note input
• Random playback, note probability control, and up to 128 pattern storage with 16 presets
• Parameter Lock for recording knob movements per step for dynamic sound variation
• One-Finger Chord mode with 16 chord styles including diatonic and chord-pad progressions
• Grain FX and reverb send levels adjustable for each track and external audio input
• SYNC and MIDI connectivity for integration with other instruments and electronic setups
• Portable design with built-in speaker and battery power for creating music on the go

Specifications

• Synthesizer: New Synth-Engine “Acoustronic Flux Oscillator” With Backtide Modulation, 34 Instruments (Grand Piano, Studio Piano, Upright Piano, Electric Piano, FM Piano, Toy Piano, Harpsichord, Organ, Xylophone, Vibraphone, Marimba, Harp, Kantele, Violin, Fiddle, Cello, Contrabass, Wood Bass, Flute, Peruvian Flute, Oboe, Clarinet, Alto Saxophone, Bassoon, Trumpet, Trombone, Horn, Tuba, Armonica, Hang Drum, Sitar, Tampura, Jazz Guitar, Electric Guitar), 20 Waves & 2 Noises (White Noise Low-Pass, White Noise High-Pass)
• Voice Modes: Polyphonic Mode, Mono Mode (Adjustable Glide Time), Legato Mode (Adjustable Glide Time), Arpeggiator Modes (Up, Down, UpDown, DownUp, Up&Down, Down&Up, Random, Up+1oct, Up+2oct, Down-1oct, Down-2oct, Play Order)
• Track Construction: 4 Tracks, Each With Its Own Amp Envelope, Filter, And 2 LFOs
• Envelope Generator: Attack, Release
• Filter: Low Pass, High Pass, Band Pass
• LFO: 2 Assignable LFOs With Adjustable Shapes And Trigger Count
• Granular Effect (Grain FX): Up To 12 Grains, 16 Preset Patches (User-Replaceable), Size/Timing/Level Control, Feedback, Direction, Shape, Buffer Size (8th Note - 1 Bar, Triplets & 3/4 Supported), Pitch Range (±2 Octaves), Alignment (Octave, 5th, Chromatic, Other Scales), Random (Spray, Diffusion, Jitter), Filter Modulation (Frequency, Rate, Depth, Filter Type), Can Be Routed To Reverb
• Reverb: 10 Types (Small.L, Small.M, Small.H, Mid.L, Mid.M, Mid.H, Large.L, Large.M, Large.H, Mirage)
• Sequencer: 4 Tracks, 128 Patterns (16 Preset Patterns), Up To 64 Steps Per Pattern, Step Length 1/1 To 1/32, Real-Time Recording, Step Entry (Playback On/Off), Tied Notes, Metronome & Pre-Count, Step/Track Copy & Paste, Duplicate Sequence, Transpose, Pattern & Global BPM Settings, Pattern Chain With Loop, Track Level & Pan, Parameter Lock, Note Probability (25-100%), Random Playback
• MIDI: Notes, Control Changes, Clock Input/Output, User Data Import/Export, Firmware Update Via SysEx
• Keyboard: 27 Keys With Hold Function
• Knobs: 15 Control Knobs, Optional LATCH Function, 1 Encoder For Fine Adjustments, LCD Value Indicator
• Audio In: LINE IN (Stereo 3.5mm Mini Jack), Compatible With Teenage Engineering Pocket Operator SYNC IN
• Audio Out: Stereo Line Out (Stereo 3.5mm Mini Jack), Headphone Out (Stereo 3.5mm Mini Jack), Built-In Speaker, Pocket Operator SYNC OUT Compatible
• Interfaces: MIDI IN/OUT (5-Pin DIN), SYNC IN/OUT (Mono 3.5mm Mini Jack)
• Size: 297mm (W) x 176mm (D) x 48mm (H) / 11.7in (W) x 6.92in (D) x 1.89in (H)
• Weight: 790g / 1.74lb
• Power Supply: 9V DC Output AC Adapter (1A+, EIAJ-3 Standard Plug, 1.7mm Inner / 4.75mm Outer, Center-Positive), Compatible With Korg Volca Power Supplies, 6 AA Batteries (Battery Life: Approx. 6 Hours Alkaline, 10 Hours Lithium), *AC Adapter And Batteries Not Included
• Product Code: LVN-090
