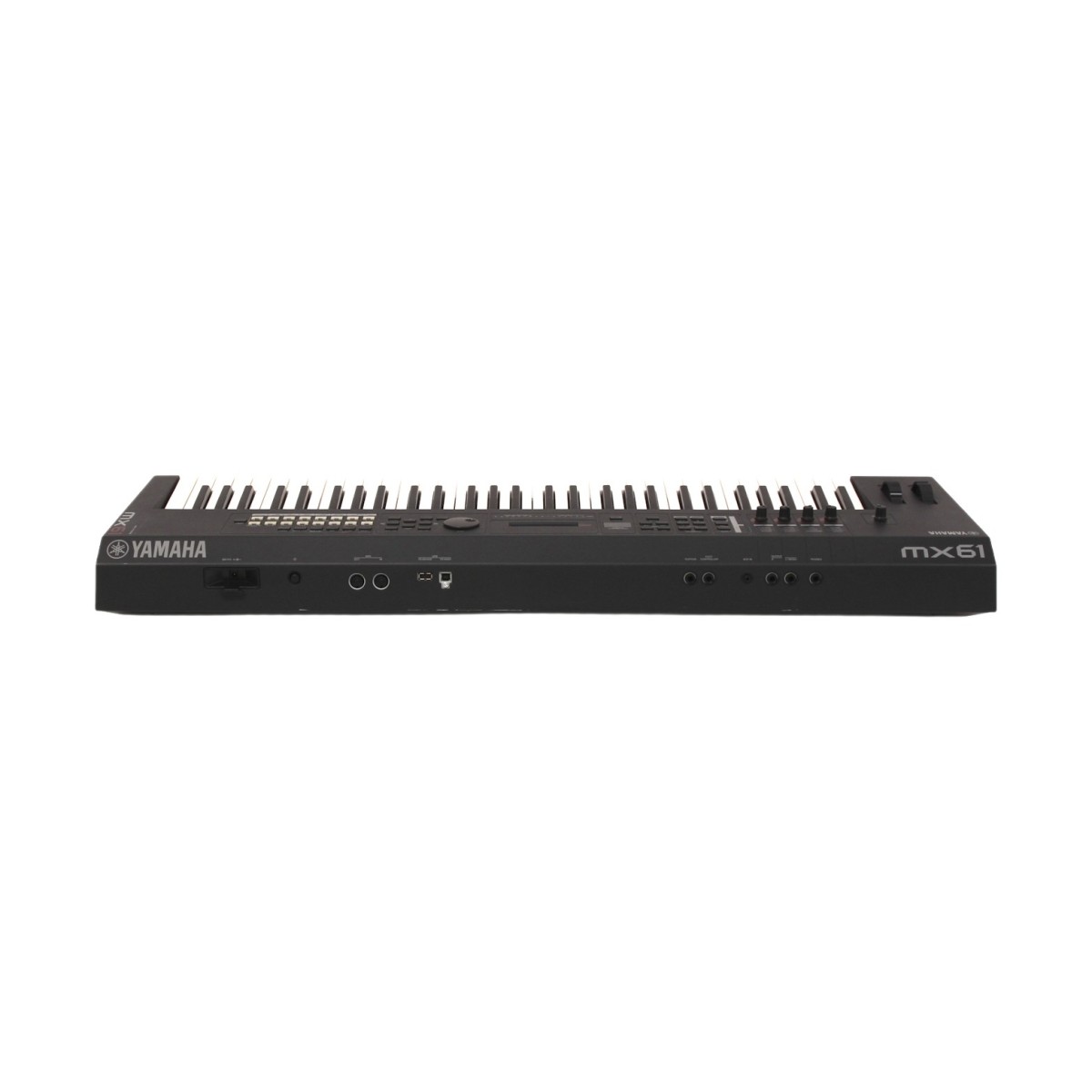

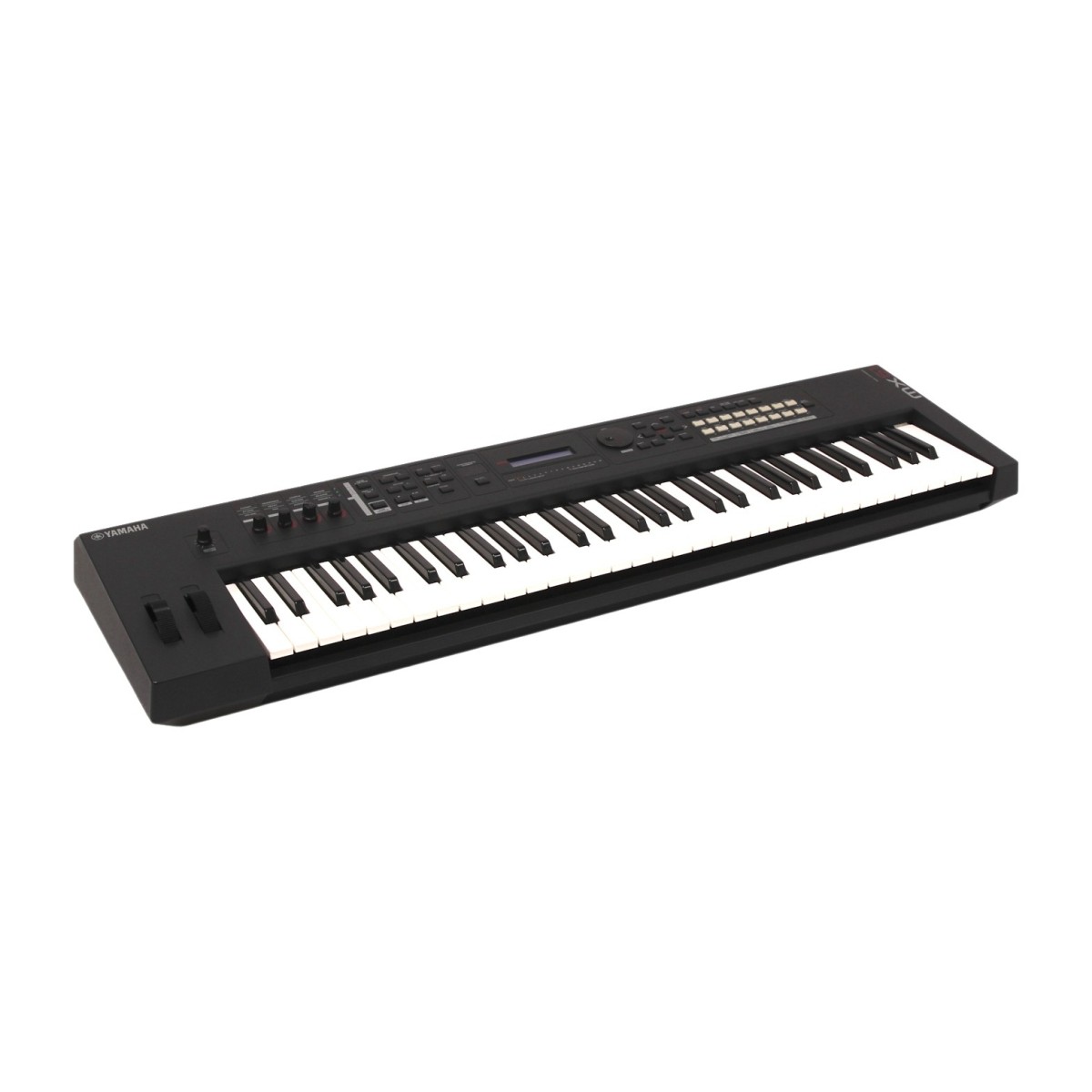

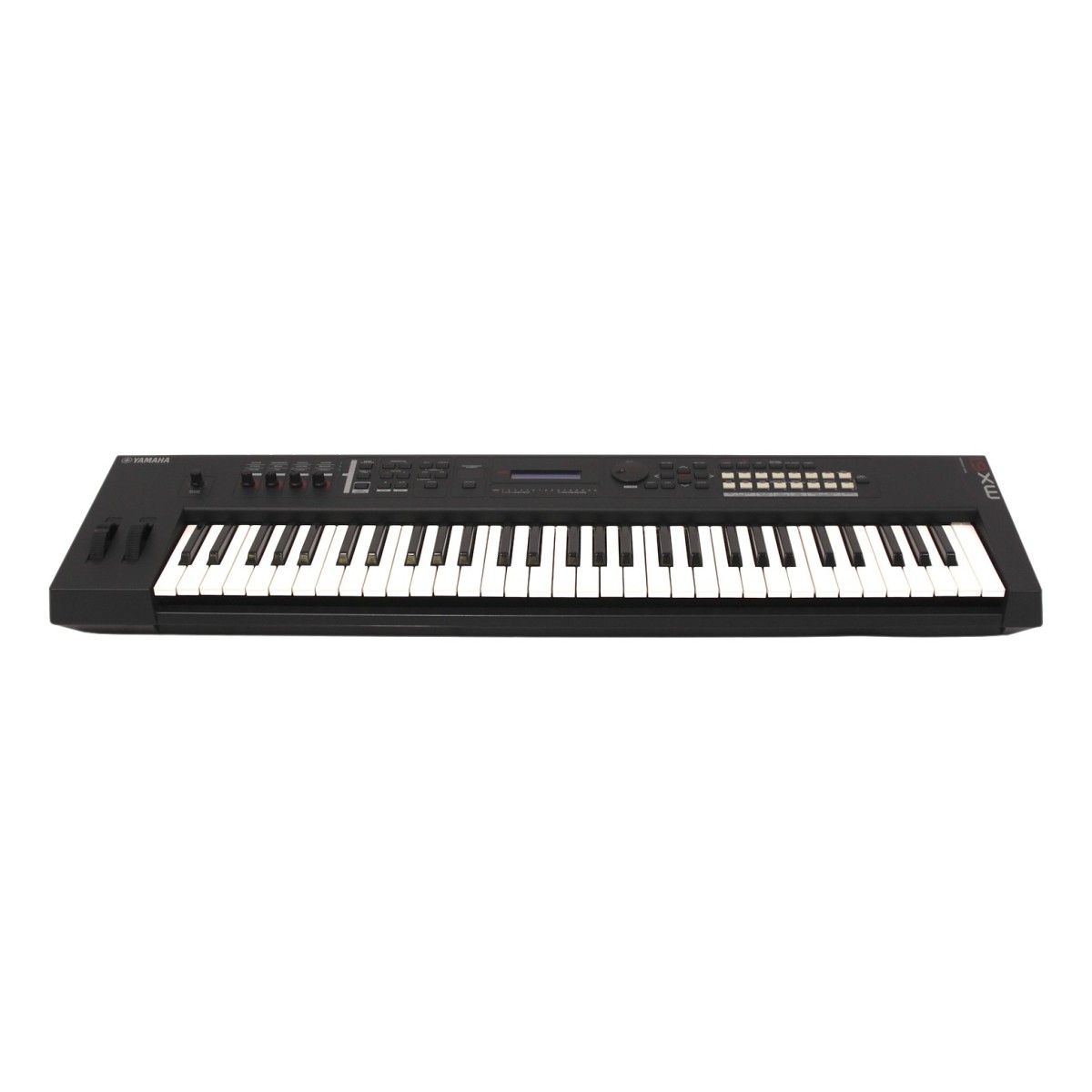

Yamaha MX61 II Music Production Synthesizer, Black - Secondhand

Full Description

Find the latest software updates for the Yamaha MX61 II here!

Legendary sounds at your fingertips

Get access to a vast library of over 1000 sounds from the acclaimed Yamaha MOTIF XS series. These include everything from acoustic and electric pianos to synth leads and orchestral textures. Whether you're building full arrangements or playing live, you'll have the tools to match any musical need.

Smart integration with your gear

The MX61 II works as both an instrument and a controller. With class-compliant USB audio/MIDI, it connects straight to your DAW or iOS device—no drivers or interfaces required. It’s a great fit for music makers who want a streamlined workflow without sacrificing flexibility.

Made for life on the move

With its compact 61-key design and lightweight body, the MX61 is perfect for mobile musicians. Whether you’re heading to rehearsals or studio sessions, it’s easy to carry and fast to set up. It’s a practical solution without compromising on professional-grade features.

Expand your sound with FM synthesis

Bundled with the FM Essential iOS app, the MX61 lets you explore classic 80s-style FM sounds or craft your own patches. This gives you even more variety on top of the standard voice library—ideal for producers and performers who want to go deeper into sound design.

Specifications

Size/Weight

• Width: 984 mm
• Height: 112 mm
• Depth: 299 mm
• Weight: 4.8 kg

Control Interface

• Number Of Keys: 61
• Initial Touch: Yes

Tone Generator

• Type: AWM2
• Maximum Polyphony: 128 Notes
• Multi-Timbral Capacity: 16 Parts (Internal)
• Wave Memory: Approx. 166 MB (16-bit Linear Format)
• Voices: Preset: 1,106 Normal Voices + 61 Drum Kits; GM: 128 Normal Voices + 1 Drum Kit; User: 128 Normal Voices + 8 Drum Kits
• Performance: User: 128 (16 Parts)

Effects

• Reverb: 9 Types (42 Presets)
• Chorus: 17 Types (88 Presets)
• Insertion Effect: 48 Types (267 Presets) × 4
• Master EQ: 5 Bands

Sequencer

• Tempo (BPM): 5–300
• Songs: 27 Demo Songs
• Patterns: 208 Patterns
• Arpeggio: 999 Types
• Sequence Formats: SMF Format 0 (Playback Only)

Other

• Software Compatibility:
  • Windows: Cubase 8 Or Later, SONAR X2 Producer
  • Mac: Cubase 8 Or Later, Logic Pro X, Digital Performer 9
  *Functions To Be Controlled Differ Depending On The Software

Controllers

• Pitch Bend Wheel: x1
• Modulation Wheel: x1
• Assignable Knobs: x4
• Data Dial: x1

Display

• Type: 3-Digit LED + 20 × 2 Line Character LCD (Backlit)

Connectors

• Output: [L/MONO] / [R] (Standard Phone Jack)
• Headphones: [PHONE] (Standard Stereo Phone Jack)
• Controller Inputs: [FOOT CONTROLLER], [SUSTAIN]
• MIDI: [IN] / [OUT]
• USB: [TO HOST] (Class Compliant Support) / [TO DEVICE]
• Aux Input: [AUX IN]
• Power Input: DC IN

Power Supply

• Consumption: 9 W

Accessories

• Included: AC Adaptor (PA-150B Or Equivalent Recommended By Yamaha), Owner's Manual, Cubase AI Download Information
