Hands-on effects designed for expressive control

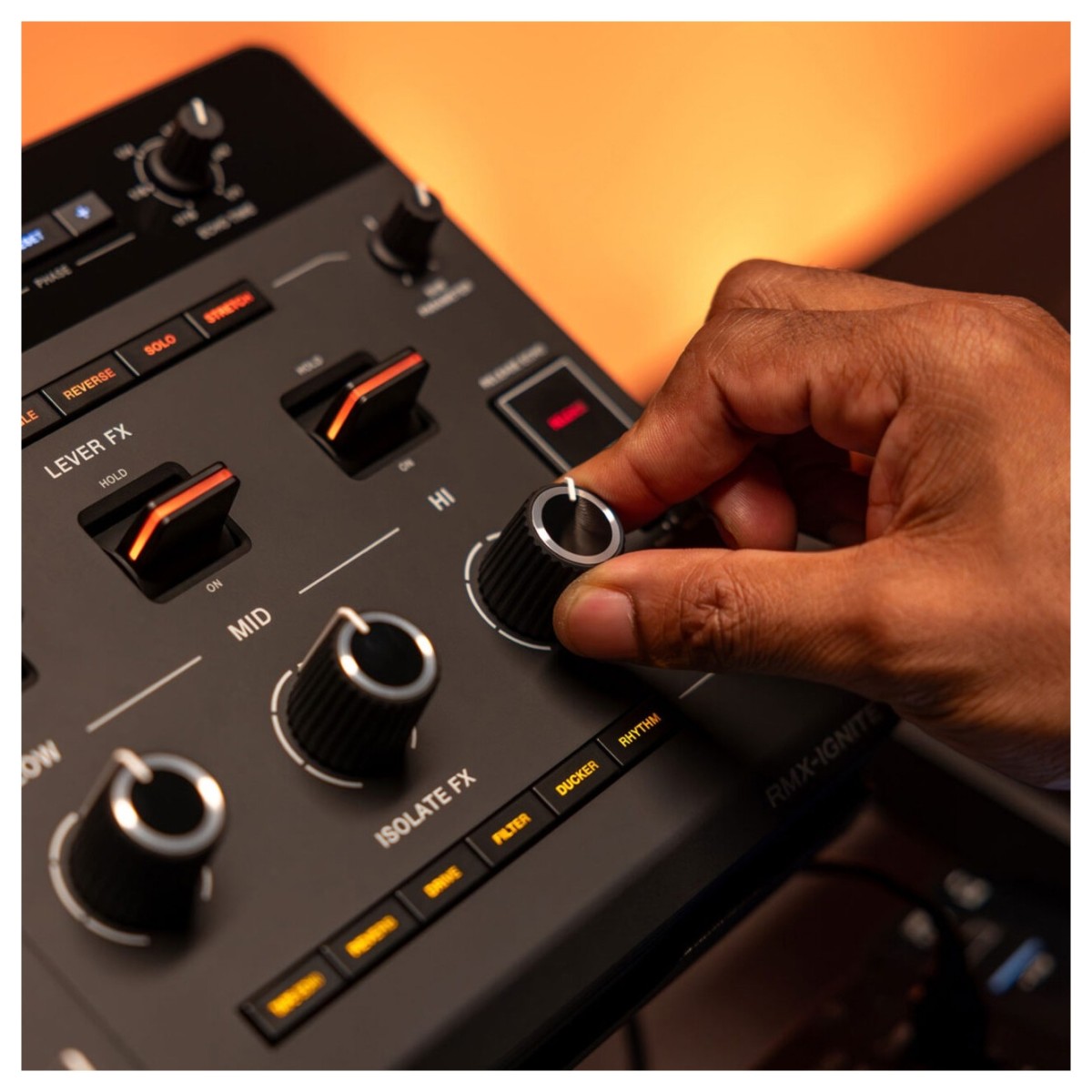

The RMX Ignite centres around a flexible 3-Band FX section that gives you detailed control over your sound. Each frequency band can be processed independently, allowing creative shaping that responds directly to your performance style.
Lever FX provide instant, dramatic changes that are ideal for capturing energy at key moments, while Isolate FX offer smoother, more controlled transformations. With the ability to combine up to six effects at once and fine-tune tone using sub-parameter knobs, transitions and build-ups feel deliberate and musical rather than automated.
A versatile effects lineup for creative transitions

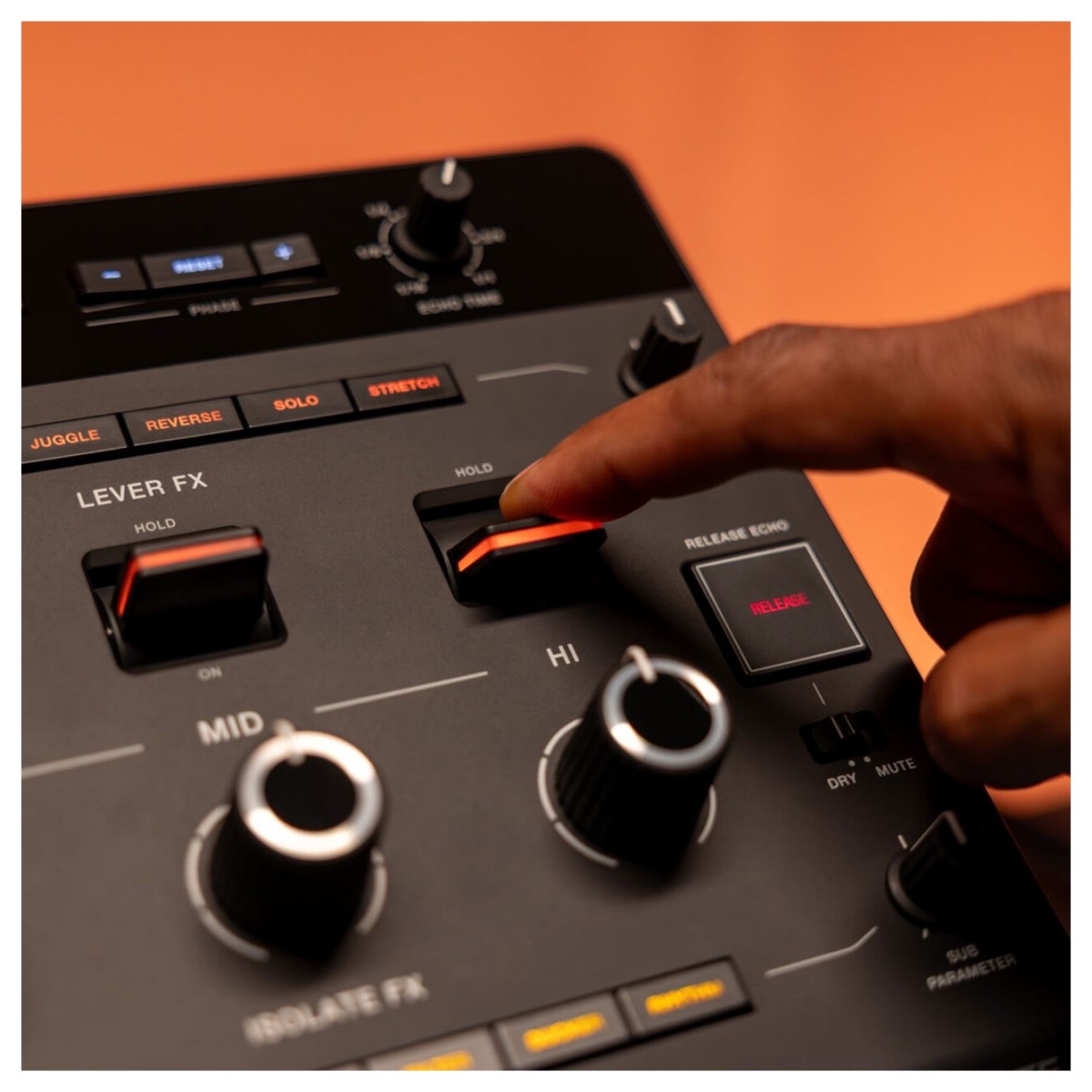

The Lever FX section includes effects such as Echo, Reverb, Juggle, Reverse, Solo, and Stretch, all designed for immediate impact through physical movement. Isolate FX expand the palette with Tape Echo, Reverb, Drive, Filter, Ducker, and Rhythm, enabling both tonal shaping and rhythmic variation.
Some effects also function as isolators when turned to the left, giving additional control over frequency balance. Together, these tools support a wide range of performance approaches, from subtle groove enhancement to bold, attention-grabbing transformations.

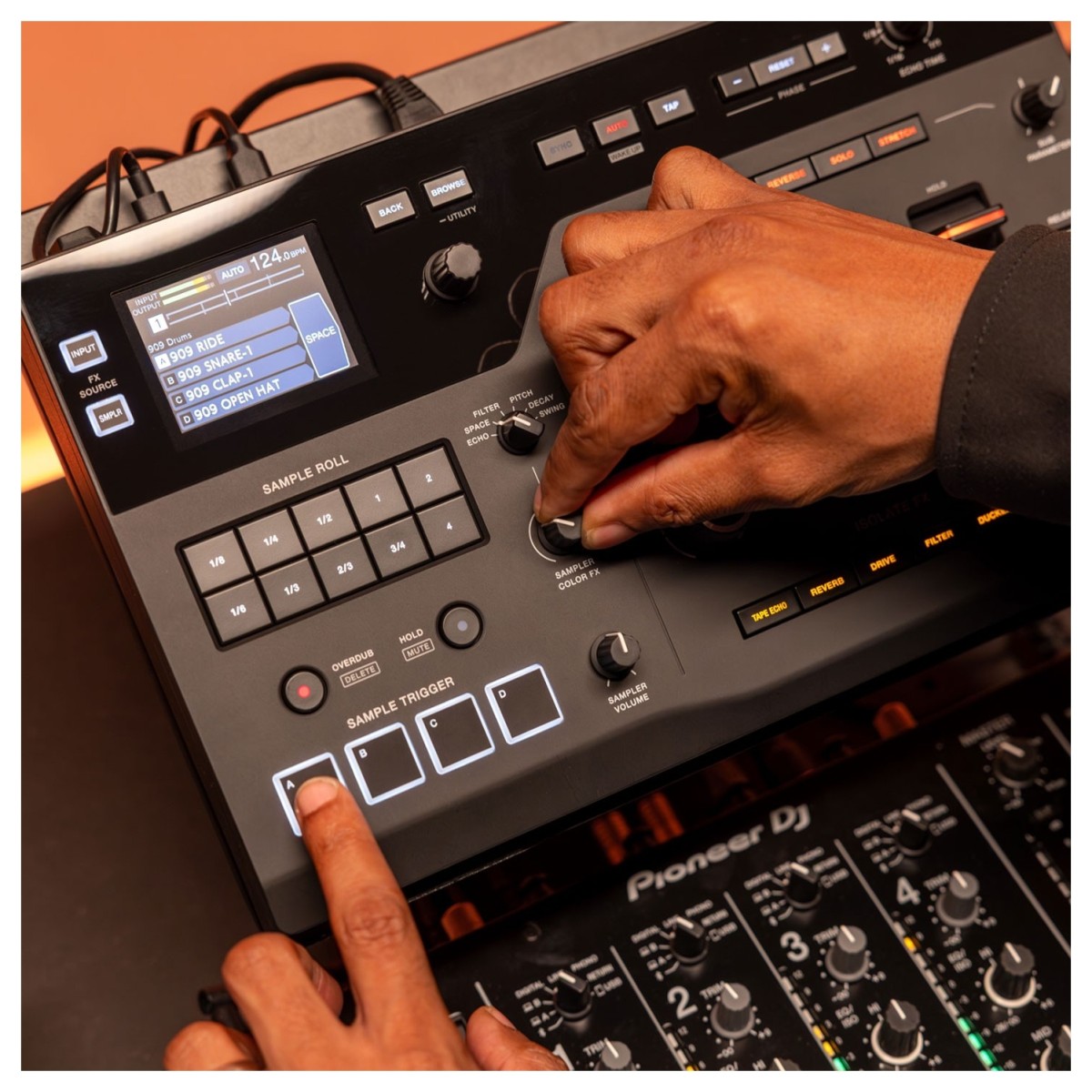

Sampler tools that build energy and movement
The integrated sampler section allows you to layer sounds and add texture without interrupting a mix. Twenty built-in samples sourced from Loopcloud are ready to use straight away, offering rhythmic and percussive elements that fit naturally into electronic sets.
You can also load your own samples using the dedicated Sample Manager software and a USB drive. Four illuminated sample trigger pads support intuitive playback, and Overdub mode lets you record and loop one-bar phrases, stacking multiple layers to create evolving progressions within a track.
Creative rolls and dedicated sample effects

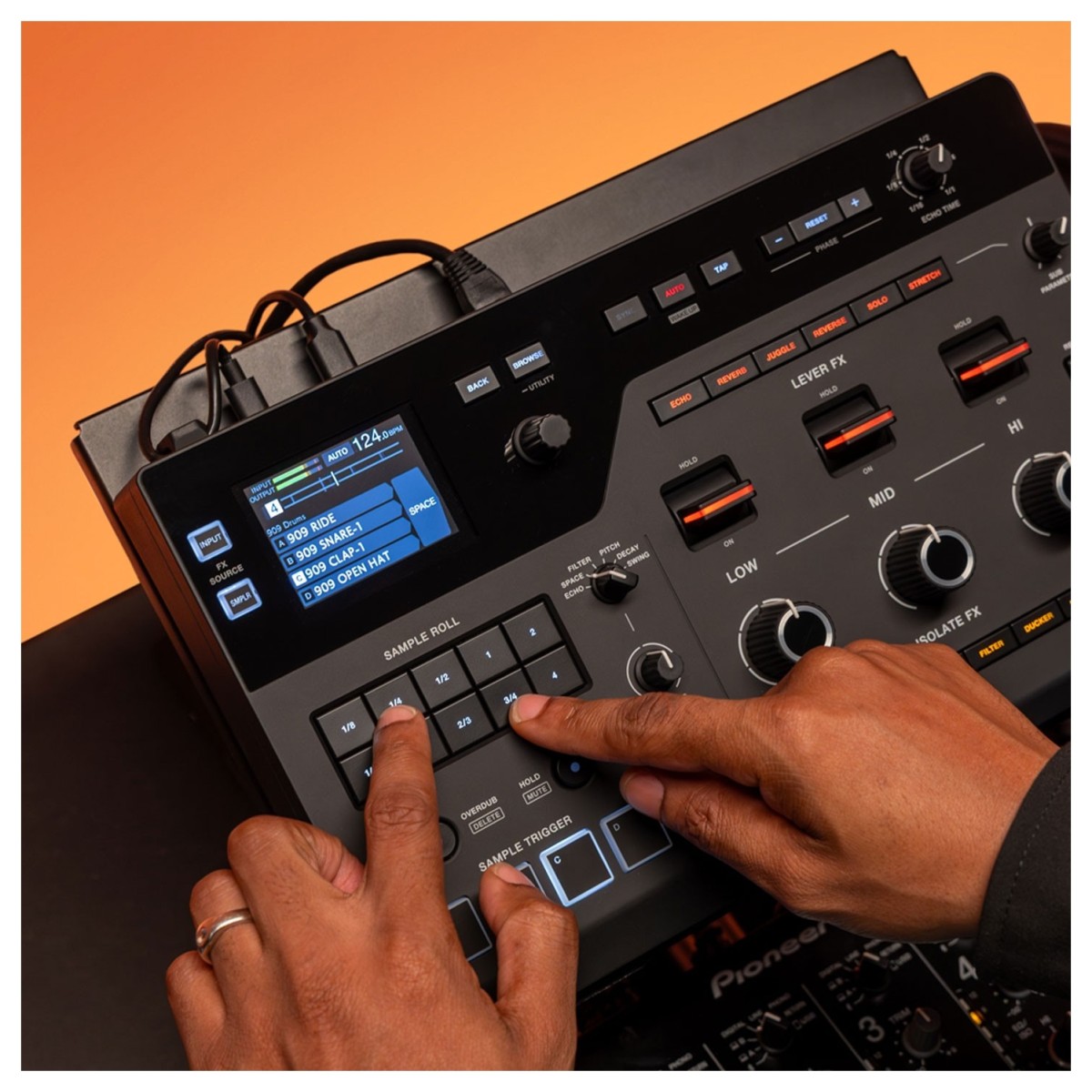

Sample Roll functionality enables rhythmic repetition in ten preset patterns, making it easy to create fills and tension during transitions. The new Groove Roll feature adds expressive variation by allowing multiple roll buttons to be pressed together, producing accented and flowing patterns that bring more personality to builds.
Six Sampler Color FX provide further shaping options, including Echo, Space, Filter, Pitch, Decay, and Swing. Controlled with a single knob, these effects operate independently from the main FX section, allowing samples to be processed separately from the track audio.
Clear feedback and reliable professional integration
A multicolour screen displays essential performance information such as BPM, FX parameters, sample selection, and input and output levels. This visual feedback supports confident operation during complex routines. PRO DJ LINK compatibility allows BPM and grid data to sync with connected DJ players, supporting accurate timing when using roll and overdub functions.
Features
- Next-generation DJ effector designed to elevate live performances with advanced creative tools
- Reimagines the iconic RMX-1000 with updated sound-shaping controls, enhanced FX engine, and modern connectivity
- Three-band FX section allows independent processing of high, mid, and low frequencies with six customizable effect combinations
- Lever FX include Echo, Reverb, Juggle, Reverse, Solo, and Stretch for real-time, dramatic alterations
- Isolate FX provide Tape Echo, Drive, Filter, Reverb, Ducker, and Rhythm with smooth knob control and isolator function when turned left
- Sub-parameter knobs offer deep tonal control, ideal for shaping builds, transitions, and breakdowns
- Sampler section includes 20 preloaded Loopcloud sounds plus user sample import via USB or PRO DJ LINK
- Sample Trigger Pads use durable components and white LEDs for clear, responsive playback control
- Overdub mode lets you record and layer 1-bar loops to create rich, evolving sample sequences
- Sample Roll features 10 rhythmic patterns with Groove Roll for expressive fills and dynamic builds
- Sampler Color FX include Echo, Space, Filter, Pitch, Decay, and Swing, each controlled by a single knob for fast sample transformation
- Sampler FX operate independently from the main FX section, enabling layered processing and deeper creative flexibility

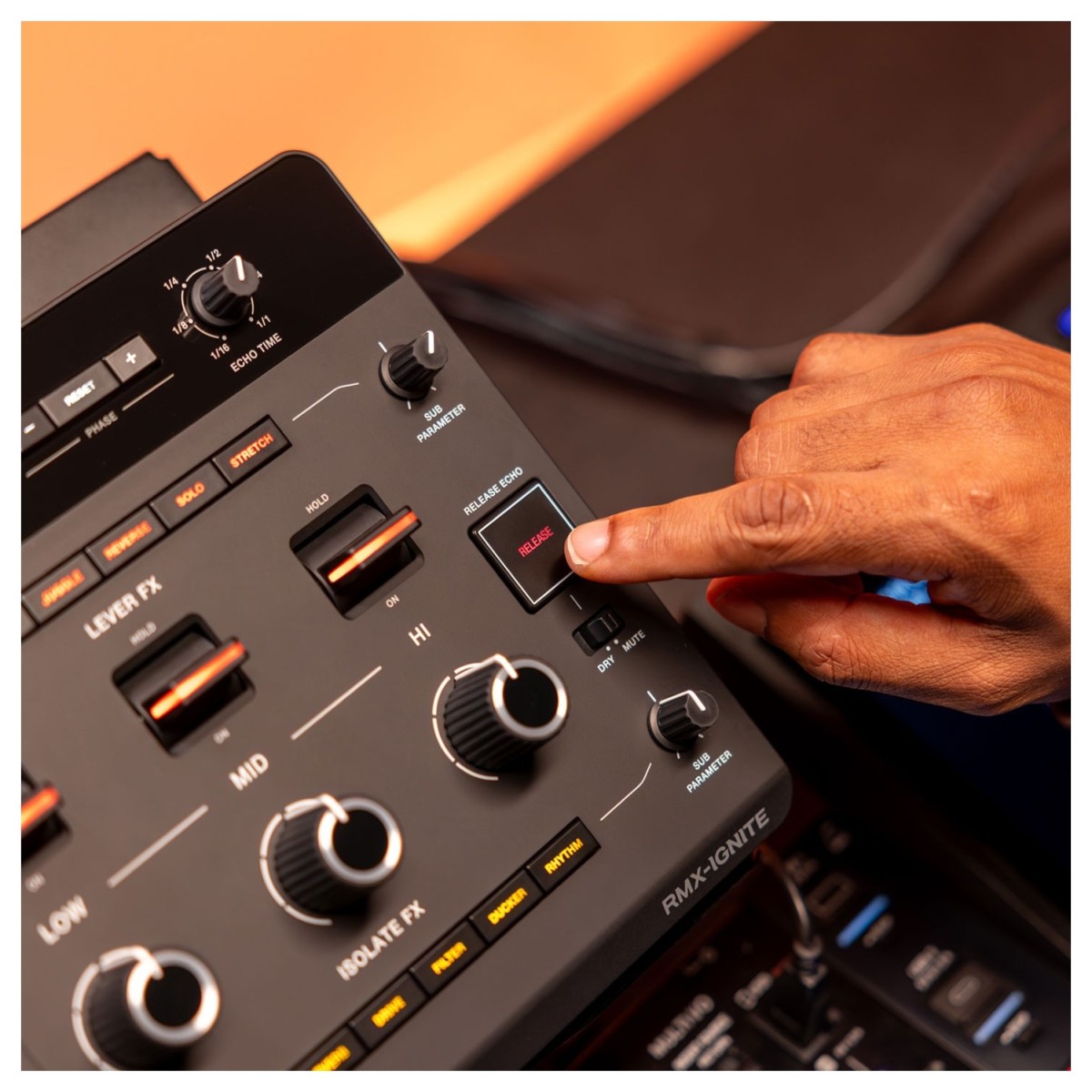

- Release Echo button resets FX with a smooth echo tail, offering two return modes for musical or dramatic effect transitions
- Multicolor screen displays sub-parameters, FX status, loaded samples, BPM, I/O levels, and browsing options for real-time monitoring
- Supports PRO DJ LINK to sync BPM and grid data with compatible players, ensuring tight beatmatching for overdub and roll
- Load samples directly from USB drives or SD cards connected to linked DJ players for a seamless performance setup
- Digital send/return connectivity with DJM-A9 and DJM-V10 mixers allows high-quality signal transfer via USB
- Studio-grade sound quality delivered through 96 kHz/64-bit DSP and ESS Technology 32-bit A/D and D/A converters
- Flat tuning ensures natural playback while preserving audio character even with heavy FX use
- Audio circuitry optimized through extensive testing in club environments for clarity and impact on large systems
- Four durable sample pads designed for intuitive performance and reliable triggering in any lighting condition
- High-visibility white LEDs on pads provide strong visual feedback for confident sample playback
- Sample Manager software allows easy preparation and transfer of custom samples via USB
- Includes 3-month access to Loopcloud with registration, giving DJs a library of royalty-free content
- TS jack connections support analog gear integration for flexible routing options
- AlphaTheta Care extended warranty available for long-term hardware support
- Firmware updates recommended to access the latest features and compatibility improvements
Specifications
- Power Requirements: AC 100 V – 240 V, 50 Hz / 60 Hz
- Power Consumption: DC 15 V, 3.0 A
- Power Consumption (Off): 0.3 W
- Max. External Dimensions (W × D × H): 340.0 × 213.3 × 72.8 Mm / 13.4″ × 8.4″ × 2.9″
- Main Unit Weight: 2.3 Kg / 5.1 Lb
- Operating Temperature: +5 °C – +35 °C
- Operating Humidity: 5% – 85% (No Condensation)
- Sampling Rate: 96 kHz
- A/D, D/A Converter: 32 Bit
- Frequency Response: 20 Hz – 40 kHz
- S/N Ratio (Rated Output, A-Weighted):
- Connection Switch (MST): 115 dB
- Connection Switch (SEND/RETURN): 114 dB
- Connection Switch (CDJ): 108 dB
- Total Harmonic Distortion (20 Hz – 20 kHz BW): 0.0018%
- Standard Input Level / Standard Output Level:
- Connection Switch (MST): +4 dBu / +4 dBu
- Connection Switch (SEND/RETURN): -7.8 dBu / -7.8 dBu
- Connection Switch (CDJ): -6 dBu / -12 dBu
- Input Impedance: 47 kΩ
- Output Impedance: 680 Ω Or Less
- Rated Output Level / Load Impedance:
- Connection Switch (MST): 21 dBu / 10 kΩ
- Connection Switch (SEND/RETURN): 12 dBu / 10 kΩ
- Connection Switch (CDJ): 3 dBu / 10 kΩ

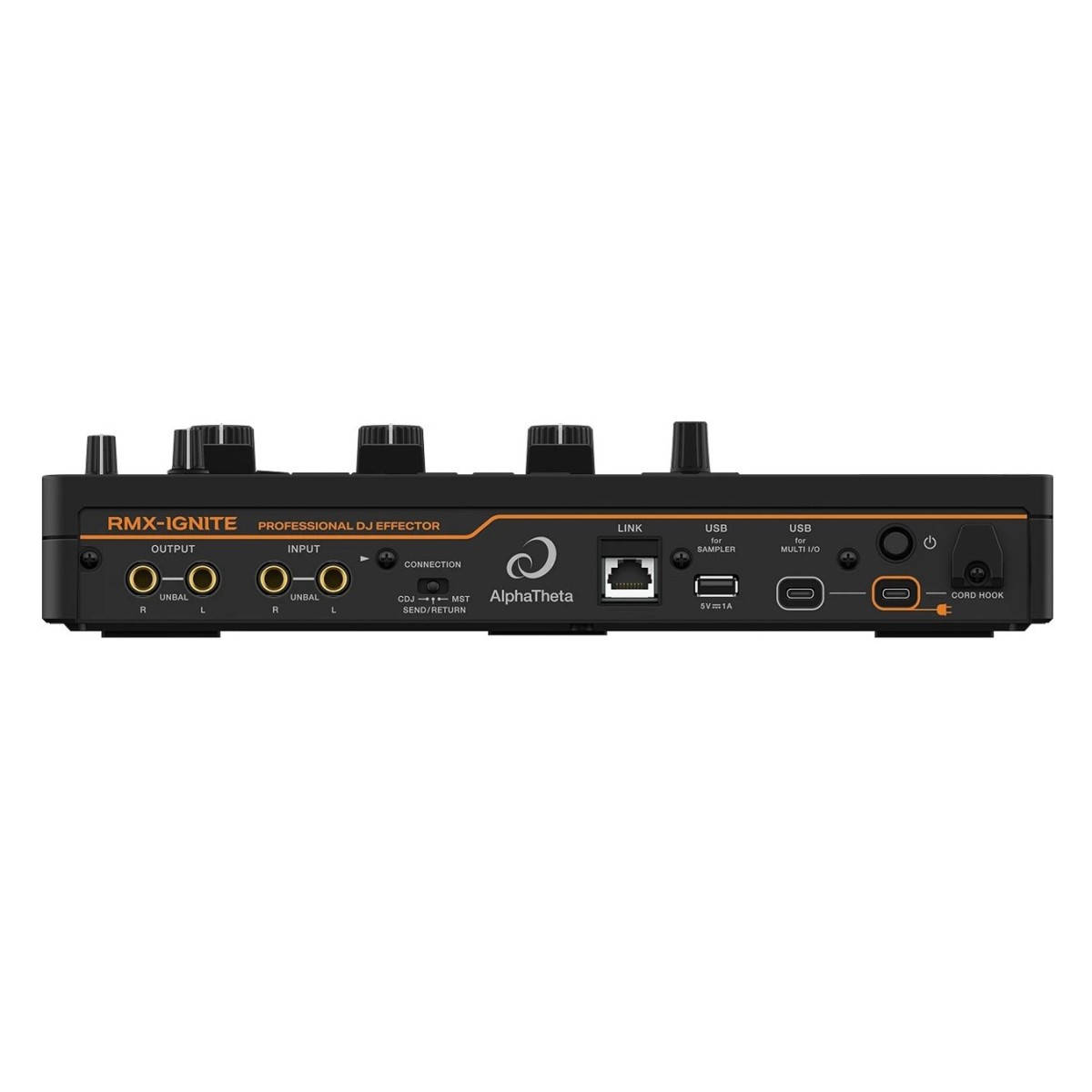

- Input Terminals: 1/4″ TS Jack × 1
- Output Terminals: 1/4″ TS Jack × 1

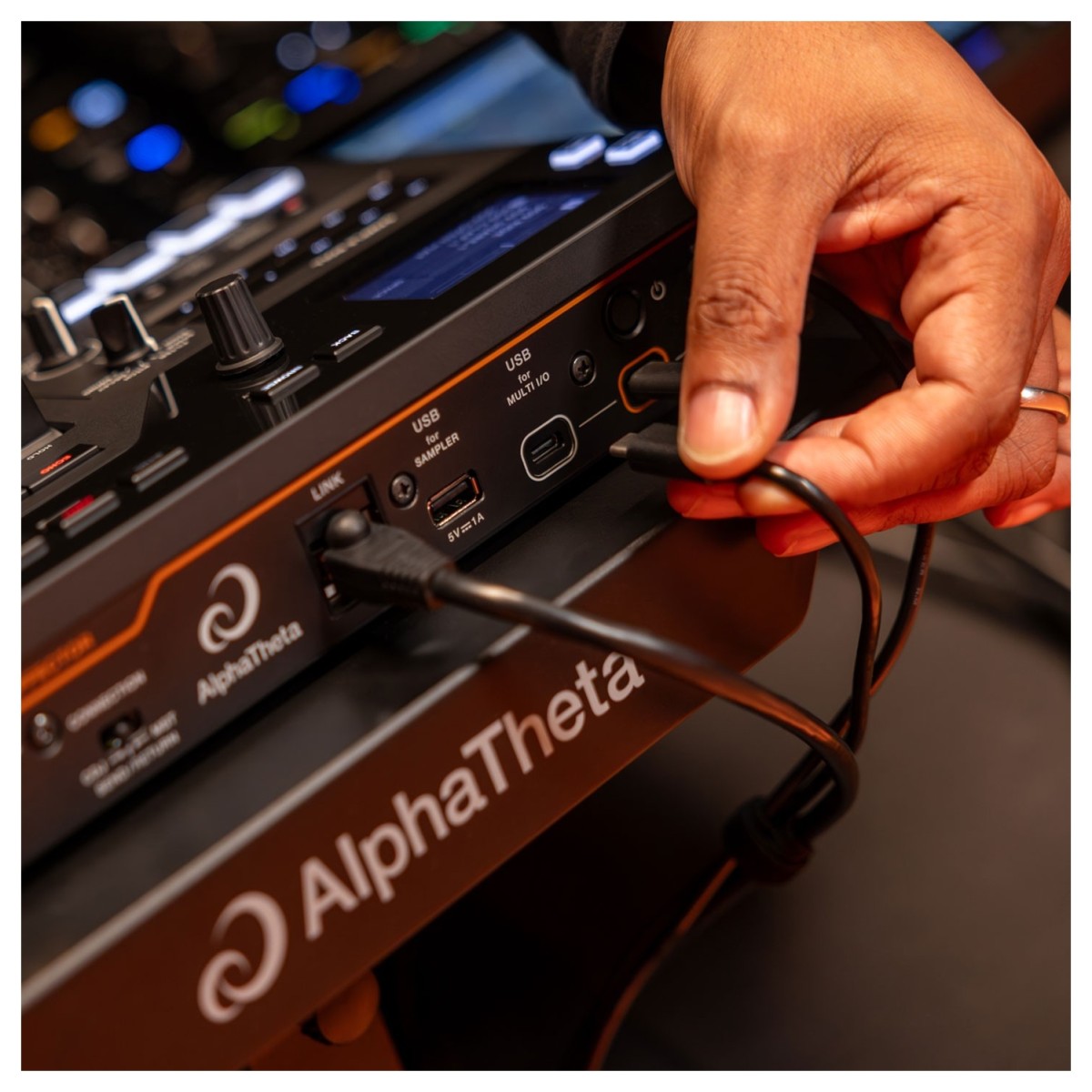

- USB Type-A (For Sampler): 1 Set (Power Supply: 5 V / 1 A Or Less)
- USB Type-C (For Multi I/O, AC Adapter): 2 Sets
- Link: LAN (100BASE-TX) × 1
- Supported File Formats: WAV, AIFF
- WAV Bit Depth: 16 Bit / 24 Bit
- WAV Sampling Frequency: 44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz
- AIFF Bit Depth: 16 Bit / 24 Bit
- Product Code: RMX-IGNITE
