DISC Alesis iO Dock II Recording Interface for iPad

  • Video 1
195.00 (including VAT @ 23%)

This product is currently not available for purchase

  • Alesis iO Dock Pro Audio Dock for iPad
  • Connect Music Gear To Your iPad
  • Complete Connectivity
  • Rugged & Reliable
  • Small & Portable

DISC Alesis iO Dock II Recording Interface for iPad

Details

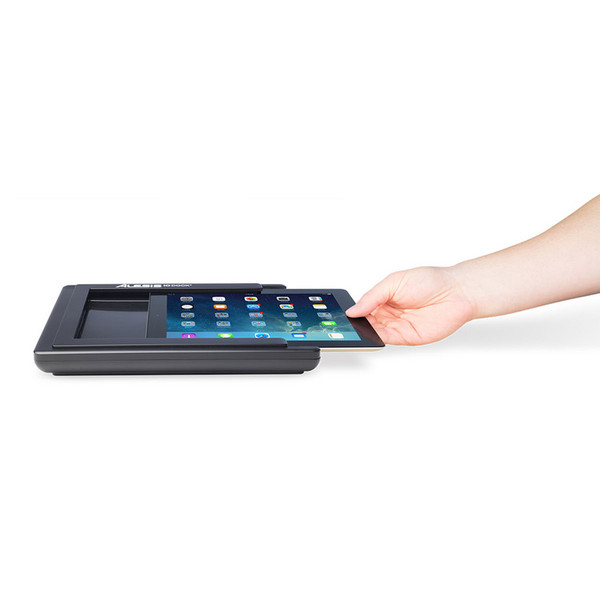

The Alesis iO Dock II is a universal docking station designed specificaly for the iPad. The iO Dock II unlocks the power within the iPad to allow professional recording capabilities with an easy to use design. To get started simply slide your lightning or 30 pin iPad into the iO Dock II and open your favourite iOS recording app.

Product Ref: 43330

View Full Description

Full Description

View Full Description
  • Comments from customers who bought this item:

The Alesis iO Dock II utilises the fact that the iPad has been a hit with musicians and producers who use apps to create music due to its simplicity and user friendly interface and takes this concept further by giving you the ability to connect your guitar, bass, microphones, keyboards and MIDI gear in one convenient device. And because it works with virtually any Core Audio or Core MIDI app, you will never run out of ways to create with the iO Dock II.

The iO Dock II dual combination inputs (XLR + 1/4-inch) let you record vocals, acoustic instruments, electronic instruments or ensembles with ease. Use dynamic or condenser mics to capture audio via the onboard mic preamps with phantom power.

The Alesis iO Dock II fits into your live or home studio with ease, thanks to 5-pin MIDI In/Out jacks and a USB MIDI Out port. The improved high-impedance input gives you a dedicated jack for your guitar/bass that makes sure you have a clean, pure signal for tracking or 3rd party FX apps. Dedicated headphone and 1/4-inch outputs let you listen to your tracks on studio monitors or headphones.

Features

  • Equips your iPad with pro audio connections for recording and live performance
  • Interchangeable 30-pin and Lightning connectors included
  • Works with iPad, iPad 2, iPad (3rd generation) and iPad (4th generation)
  • Improved high-impedance guitar input for accurate recording of guitars and bass guitars
  • Improved iPad connector placement for quick and easy loading of your iPad
  • Connect microphones, instruments, speakers, headphones, and MIDI controllers
  • Works with virtually any Core Audio or Core MIDI app in the App Store
  • (2) combo XLR-1/4-inch inputs for use with instruments, microphones, and more
  • Input channel gain controls and switchable phantom power for use with condenser microphones

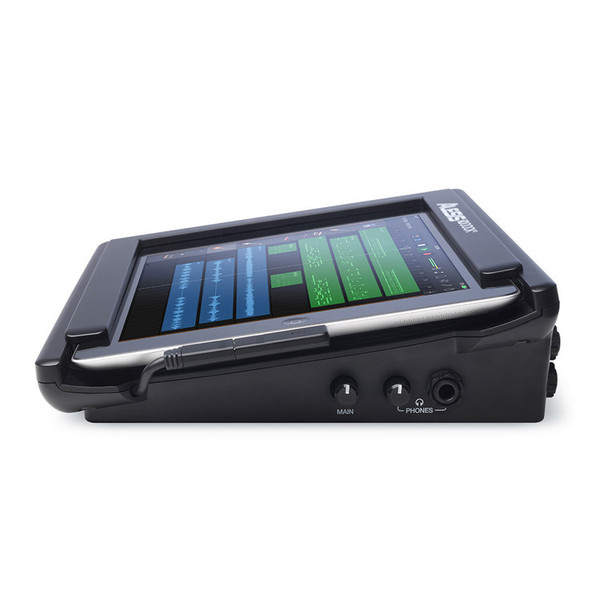

  • (2) 1/4-inch main outputs and 1/4-inch headphone output, each with independent volume controls

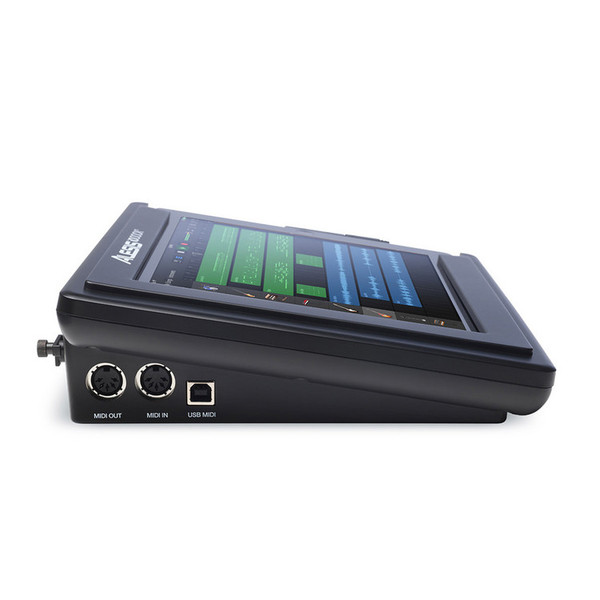

  • 5-pin MIDI and USB MIDI input and output and an assignable 1/4-inch footswitch input
  • Professional 24-bit converters built in
  • Class-compliant, no drivers required

Specifications

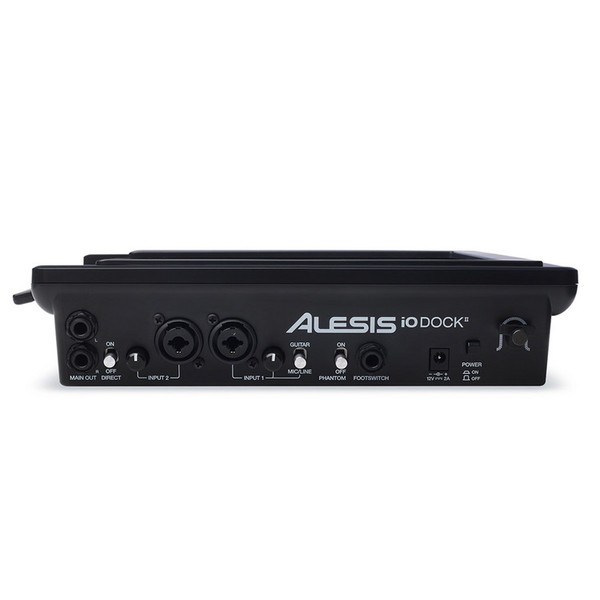

  • Audio Inputs: 2 x XLR-1/4" Balanced TRS Individual gain controls Phantom power, switchable Guitar (high-impedance) switch on Input 1
  • Audio Outputs: 2 x 1/4" Balanced TRS Main 1/4" TRS Headphone Individual level controls
  • Video Output: RCA Composite (requires compatible apps)
  • Control I/O: MIDI In (DIN) MIDI Out (DIN) USB MIDI 1/4" Footswitch (function assigned by apps)
  • Power: 12V DC, 2A, center-positive
  • Dimensions (Length x Width x Height): 8.5" x 10.5" x1.25"; 216 mm x 267 mm x 32 mm Weight: 2.1 lbs; .95 kg

System Requirements

  • iPad, iPad 2, iPad (3rd Generation), iPad (4th Generation)
  • Please note: does not fit iPad Air

Includes

  • iO Dock II
  • Power Adapter
  • Adapter for iPad 2, iPad (3rd generation), and iPad (4th generation)
  • Apple 30-Pin Connector
  • Apple Lightning Connector
  • User Guide
  • Safety & Warranty Manual
Your order may be delivered with a plug adapter
If any electrical items in your order are supplied with a United Kingdom plug connection, a suitable plug conversion adapter will be included free of charge.
