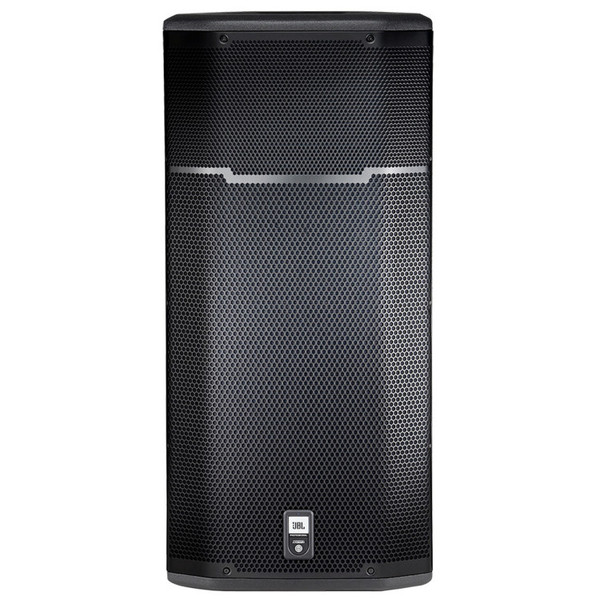

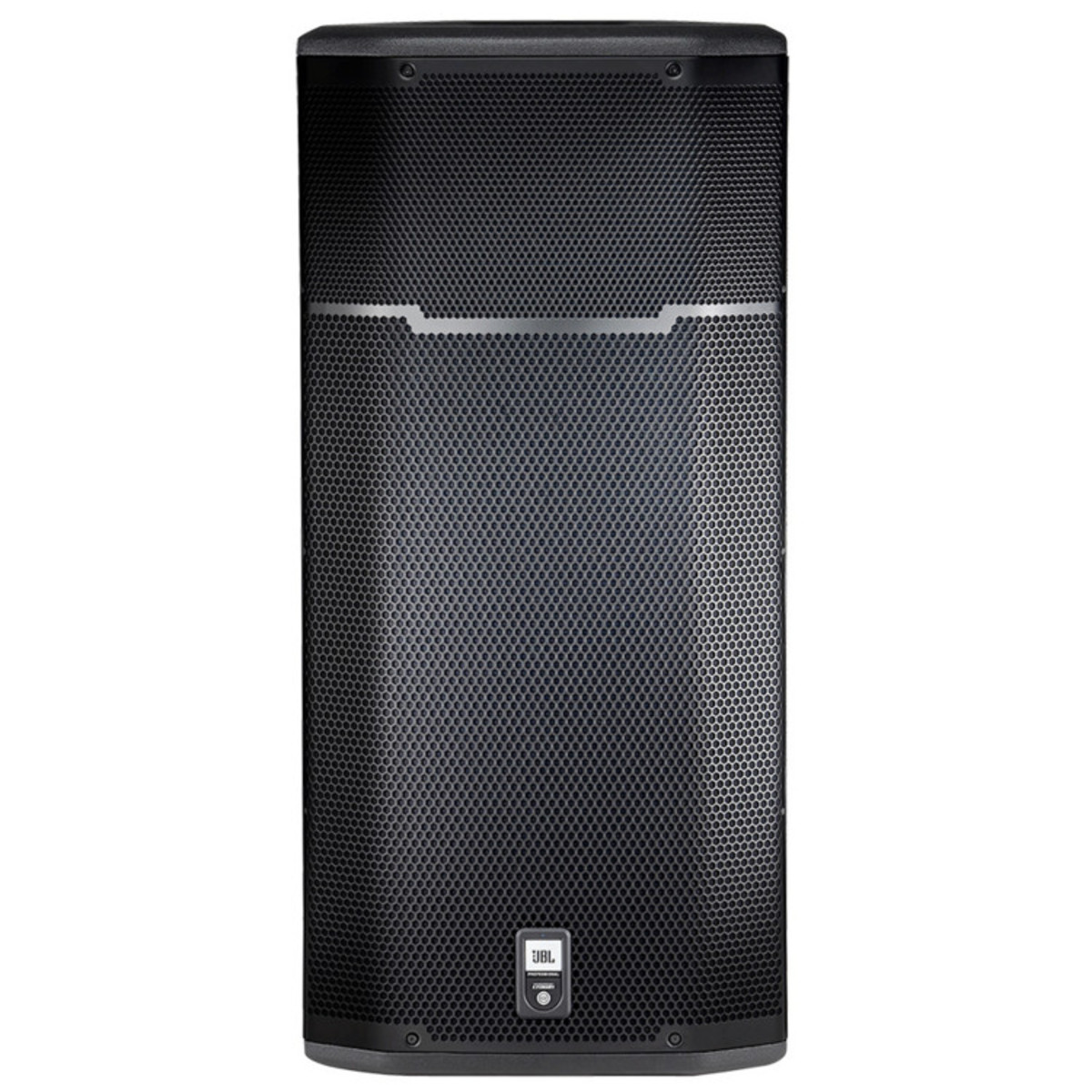

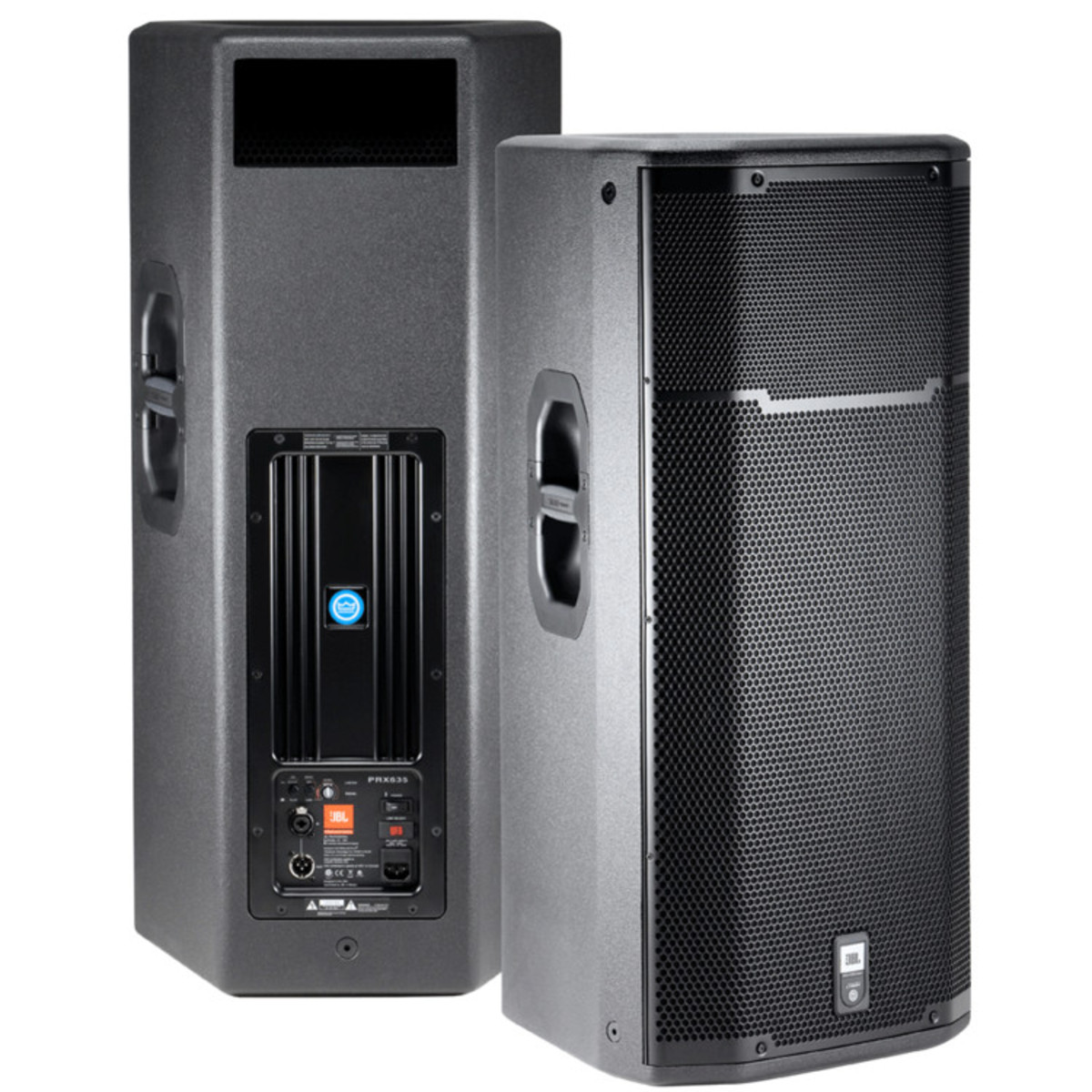

DISC JBL PRX635 15in Three-Way Active PA Speaker

Full Description

The PRX635 3-way active loudspeaker covers the full frequency range more evenly than a conventional 2-way model. The PRX635 provides you with a full and rich tone that extends from deep and expressive lows to crisp and detailed highs. The PRX635 can cover larger clubs and midsized venues easily, and when you add a subwoofer or two, you'll be able to fill much larger spaces with evenly balance sound. Lighter cabinets make loading and unloading easier than before, and tour-tested rugged designs won't let you down when your sound matters most.

Features

• Maximum SPL 135 db peak
• 380 mm (15 in) Differential Drive dual voice-coil and magnetic gap, neodymium woofer
• 165mm (6.5 in) horn loaded midrange transducer
• 25.4mm (1 in) polymer diaphragm compression driver
• 1500 Watt (3 x 500 watt) Class-D, Crown digital amplifier
• DSP input section with dbx Type IV limiter circuit, crossover, dynamic limiting, component optimization, selectable system EQ
• Professional XLR line and 1/4" Mic/Instrument inputs, with loop through
• Obsidian DuraFlex coated plywood construction
• Large die-cast aluminum handle bar with a fine tuned ergonomic rubber grip for maximum comfort
• 8 M10 Suspension points and 1 pullback point
• Integrated 36mm pole mount socket

Specifications

• System Type: Self-powered 15", three - way, bass - reflex
• Maximum SPL Output: 135 dB peak
• Frequency Range (-10 dB): Flat: 41 Hz - 19 kHz, Boost: 40 Hz - 19 kHz
• Frequency Response: Flat: 53 Hz - 18 kHz, Boost: 50 Hz - 18 kHz
• Coverage Pattern: 90 degree x 50 degree nominal
• Amp Design: Crown Class D
• Power Rating: 1500 W ( 3 x 500 )
• Dimension (H x W x D): 921 mm x 424 mm x 413 mm ( 36.29 in x 16.71 in x 16.27 in )
• Net Weight: 27.2 kg ( 60 lb )
