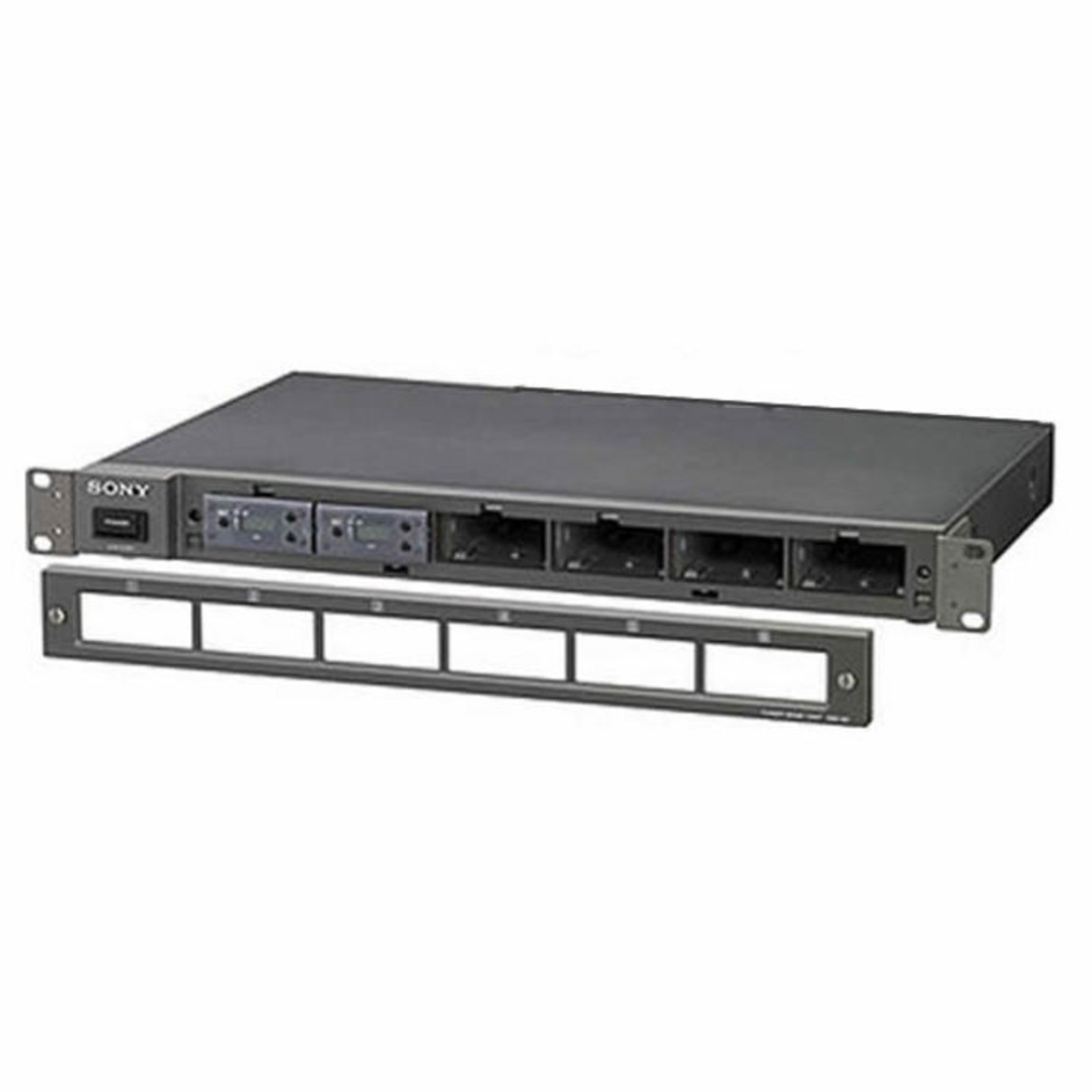

OFFLINE Sony MB-X6 UHF Wireless microphone receiver base unit

Full Description

A built-in active antenna divider allows one pair of active antennas (optional) or passive antennas (supplied) to operate all six channels. Output level switching selects mic or line operating level for each output.

Antenna gain switch - Antenna gain switch: Allows user to adjust antenna sensitivity to prevent overload of antenna section of receiver.

Holds up to six UHF diversity tuner modules in 1 rack space - Compact modular design allows user configurability of one to six diversity tuners in a single rack space. Tuner modules supported include the WRU-806B (for use with WRT/ WRR series wireless systems), or alternatively the URX-M1 (for use with UWP series wireless systems)

Build-in active antenna divider - Allows one pair of active antennas (optional) or passive antennas (supplied) to operate all six channels. Supplies 9VDC antenna power to antenna jacks. Output level switching - Selects mic or line operating level for all outputs

Specifications

• Receiving channels: 6 channels when accommodating 6 tuner modules included in the UWP-X1/X2 package
• Receiving frequencies: 792 MHz to 806 MHz (TV channels 66 to 67) when AU type tuner module installed 798 MHz to 822 MHz (TV channels 62 to 64) or 838 MHz to 862 MHz (TV channels 67 to 69) when CE type tuner module installed 758 MH to 782 MHz (TV channels 62 to 65) or 782 MHz to 806 MHz (TV channels 66 to 69) when U type tuner module installed
• Audio output connector: XLR-3-32 type (x7), balanced
• Audio output level: -20 dBu (LINE level) or -58 dBu (MIC level)
• Antenna attenuator level: 0 dB or 10 dB
• Antenna connectors: BNC-R type (x2), 50 Ù
• Power requirements: U type: AC 120 V, 60 Hz CE type: AC 230 V, 50/60 Hz
• Power consumption: 30 W when accommodating six tuner modules included in the UWP-X1/X2 package
• Dimensions (W x H x D): 482 x 44 x 285 mm (19 x 1 3/4 x 11 1/4 inches)
• Mass Approx: 5.5 kg (12 lb 2 oz)
