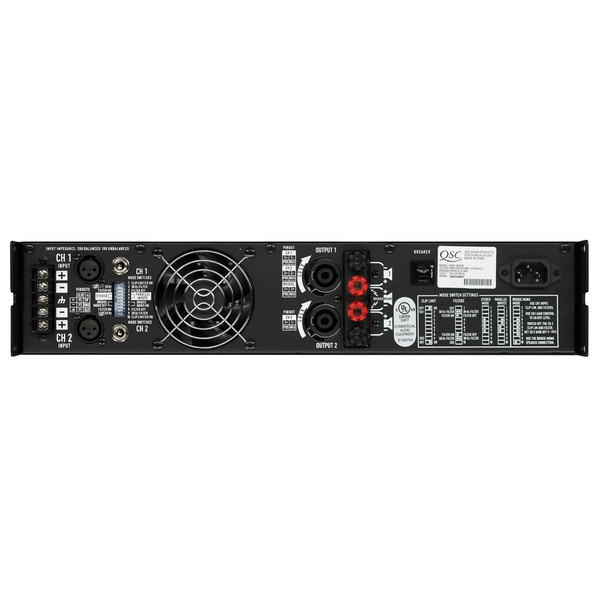

QSC RMX 1450a 2 Channel Power Amplifier
QSC RMX 1450a 2 Channel Power AmplifierDetails
Product Ref: 53602View Full Description
Full DescriptionView Full Description
- Compact size - up to 2500 watts in two rack spaces, or 5000 watts in three rack spaces
- High-current toroidal transformers, for greater 2-ohm power and low noise
- Independent user-defeatable clip limiters reduce distortion
- Selectable low-frequency filters (30 Hz or 50 Hz) protect speakers and increase headroom
- The 4000-watt RMX4050a operates on a standard 15 amp plug (120V)
- Both the RMX4050a and the RMX5050a feature a dual mono, high-current power supply for increased reliability and performance
- The RMX4050a's particularly exceptional combination of cooling capacity and electrical efficiency provides robust thermal performance suitable for high continuous power in 2-ohm stereo or 4-ohm bridged applications.
- Balanced 1/4" (6.3 mm) TRS, XLR, and barrier strip inputs
- Touch-proof binding post and Neutrik Speakon® outputs
- Front mounted gain controls for easy access
- Signal and clip LED indicators for monitoring performance
- Independent DC and thermal overload protection on each channel automatically protects amplifier and speakers
Power per Channel, Stereo Mode (both channels driven)
- 8Ω, FTC 20 Hz-20 kHz, 0.1% THD: 260W
- 8Ω, EIA 1 kHz, 0.1% THD: 300W
- 4Ω, FTC 20 Hz-20 kHz, 0.1% THD: 400W
- 4Ω, EIA 1 kHz, 0.1% THD: 500W (0.5% THD)
- 2Ω, EIA 1 kHz, 1% THD: 700W
Power, Bridge-Mono Mode
- 8Ω, FTC 20 Hz-20 kHz, 0.1% THD: 800W
- 8Ω, EIA 1 kHz, 0.1% THD: 900W
- 4Ω, EIA 1 kHz, 1% THD: 1400W
- Signal to Noise (20 Hz-20 kHz): -100 dB
- Distortion (SMPTE-IM): < 0.01%
- Input Sensitivity at 8Ω: 1.15V (+3.4 dBu)
- Voltage Gain: 40x (32 dB)
- Output Circuitry: Class AB
- Current Draw (120 V AC):
- Typical, 1/8 power pink noise at 4Ω*: 6.0 A
- Severe, 1/3 power pink noise at 4Ω*: 9.6 A
- AC Mains Plug:
- 100/120V: NEMA 5-15
- 230V: CEE7/7
- Weight: Net: 40 lb (18.2 kg) / Shipping: 46 lb (20.9 kg)
- Distortion (typical):
- 20 Hz-20 kHz, 10 dB below rated power: < 0.03% THD, 4Ω and 8Ω
- 1 kHz and below, full rated power: < 0.03% THD, 4Ω and 8Ω
- Frequency Response: 20 Hz-20 kHz: +0/-1 dB -3 dB points: 5 Hz and 50 kHz (LF filter bybassed, 8Ω)
- Damping Factor (1 kHz and below): > 300 at 8Ω
- Input Impedance: 10 kΩ unbalanced; 20 kΩ balanced
- Input Stage Clipping: 10 V rms (+22 dBu)
- Cooling: Continuously variable speed fan, back-to-front air flow
- Connectors (each channel):
- Input: Active balanced; 3-pin Euro-style detachable terminal block and XLR (pin 2+)
- Output: Touch-proof binding posts; Neutrik Speakon®
- Front: AC switch; Channel 1 & 2 gain knobs
- Rear: 10-position DIP switch
- LED Indicators: Power on: Green; Signal: Yellow (1 per channel); Clip/Protect: Red (1 per channel)
- Amplifier Protection: Full short circuit, open circuit, thermal, ultrasonic, RF protection. Stable into reactive or mismatched loads
- Load Protection: Turn-on/off muting; AC coupling (850, 1450); Triac crowbar (1850HD, 2450, 4050HD, 5050) on each channel
- Dimensions: 3.5" (8.9 cm) tall; 2 rack spaces
- Power Requirements: 100, 120, 230 V AC (factory configured), 50-60 Hz
