Sennheiser EW 100 G4 Dual Wireless System with ME2 and 835-S, E Band - Nearly New

Full Description

The system that grows with you

From one gig to the next, you're constantly evolving. As your performances change, your needs do too. That's where the Evolution wireless system comes in. Designed to work hand in hand with you, no matter what your needs may be, Evolution systems give you the freedom to perform exactly the way you want to.

Take advantage of a 42MHz tuning bandwidth across a UHF range with exceptional stability. You can configure and link up to twelve systems across that range, with setup being quick and simple. The EW 100 G4's linking functionality makes frequency allocation a breeze, whilst infrared allows you to synchronise your transmitter and receiver in seconds. And with a transmission range of up to 100-metres, you can perform without limitations.

The half-rack receiver boasts true diversity operation - this means that the radio receivers inside will automatically switch between the one with the strongest signal to reduce dropouts. Combined with high RF output power from the transmitter, you can be sure that your signal will remain strong and reliable at all times. Plus, you can view the status of all of your important system parameters thanks to easy-to-read LCD displays. Combined with Sennheiser's renowned build quality, the EW 100 G4 wireless system gives you everything you need for years of reliable, high-performance operation.

High-performance microphone combination

Make yourself heard. With Sennheiser's legendary 835 and ME2-II microphones included in this system, you can be ready for any situation...

Take advantage of the 835's revered performance. This handheld mic boasts a cardioid polar pattern, providing uniform sound pick-up with excellent isolation. Even when positioning the microphone slightly off axis, the 835 maintains excellent sound quality. It is also highly resistant to feedback, whilst ensuring your speech or vocals are delivered with absolute clarity.

With the ME2-II, you have a discreet solution for capturing vocals, speech, instruments and more, all with outstanding intelligibility. Whether you're on stage or out in the field, this miniature condenser delivers professional results that are perfect for a wide variety of applications. Plus, with its omnidirectional polar pattern, you can take advantage of a wide area of pick-up for versatile positioning options. The polar pattern also provides excellent resistance to wind noise, making it suitable for outdoor use.

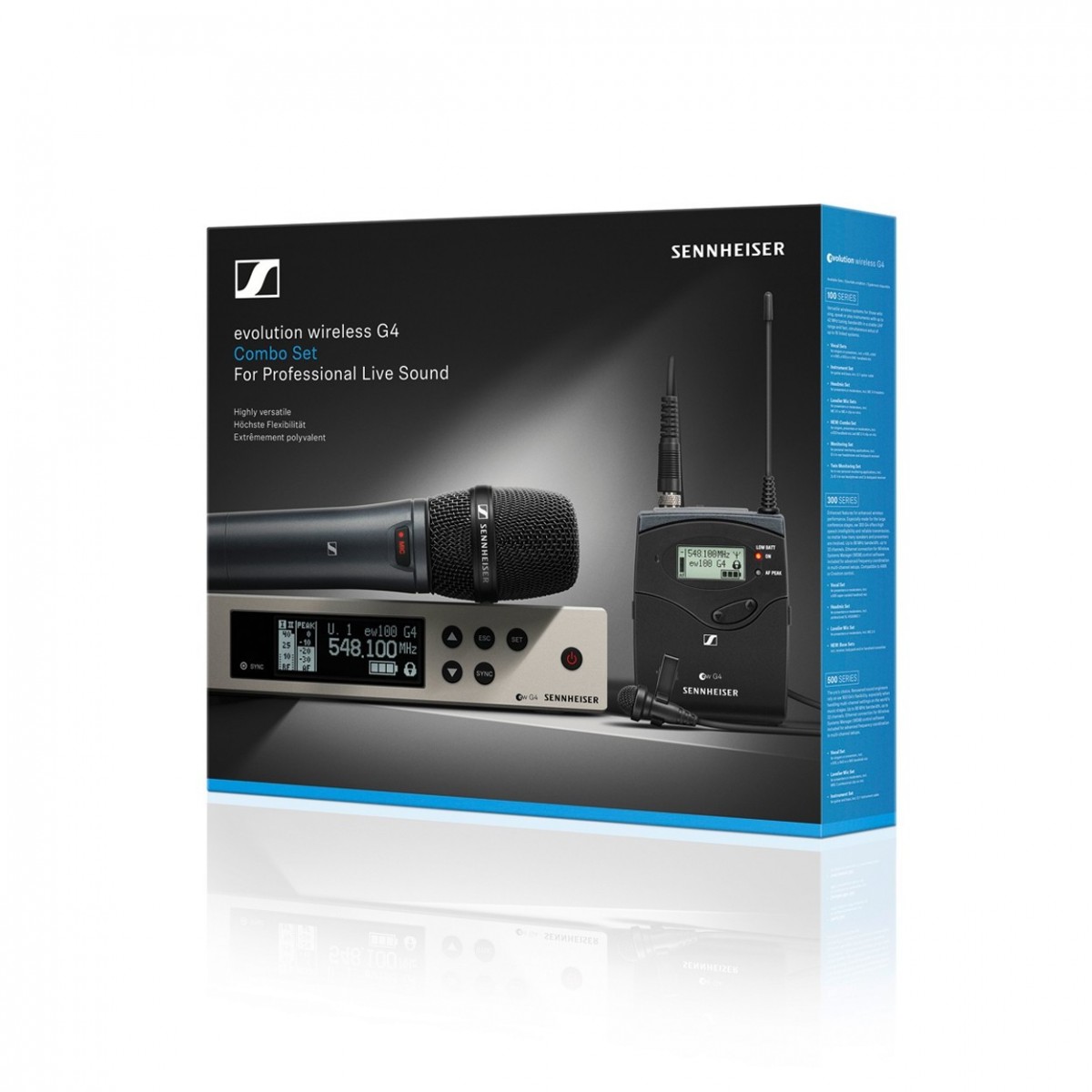

In the box

• EM 100 G4 Receiver
• SK 100 G4 Bodypack Transmitter
• SKM 100-S G4 Handheld Transmitter
• MMD 835-1 Microphone Head
• ME 2 Lavalier Microphone
• MZQ 1 Microphone Clamp
• RJ 10 Cable
• GA 3 Rackmount Kit for Receiver
• 2 x Rod Antennas
• Receiver DC Power Supply
• 4 x AA Batteries

Features

• Engineered for professional live sound
• Rugged all-in-one wireless system for singers and presenters
• True diversity half-rack receiver with a full-metal housing
• Intuitive LCD display
• State-of-the-art microphone with 835 capsule and integrated mute switch
• Unobtrusive clip-on lavalier microphone
• Simple wireless synchronisation between transmitter and receiver via infrared
• Immediate frequency allocation for up to 12 receivers via innovative functionality
• Up to 20 compatible channels
• 42MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
• High RF output power (up to 30mw) depending on country regulations
• 100 meter maximum transmission range

Specifications

EM 100 G4 Receiver

• Wireless Frequency: 863MHz - 865MHz
• Receiving Frequencies: 1680, Adjustable in 25kHz
• Frequency Banks:
  • 20 with 12 Factory-Preset Channels
  • 1 with 12 Programmable Channels
• Switching Bandwidth: up to 42MHz
• Squelch:
  • Low: 5dBμV
  • Middle: 15dBμV
  • High: 25dBμV
• Antenna Connectors: 2 x BNC
• Compander: HDX
• Audio Connectors:
  • Balanced: XLR
  • Unbalanced: 1/4'' Jack
• Power Supply: 12V DC
• Dimensions: 190mm x 212mm x 43mm
• Weight: 980g

SK 100 G4 Bodypack

• Frequency Response: 25Hz - 18kHz
• RF Power Output: 30mW (Maximum)
• Wireless Frequency: 863MHz - 865MHz
• Receiving Frequencies: 1680, Adjustable in 25kHz
• Frequency Banks:
  • 20 with 12 Factory-Preset Channels
  • 1 with 12 Programmable Channels
• Switching Bandwidth: up to 42MHz
• Deviation: ±24kHz / ±48kHz (Nominal/Peak)
• Compander: HDX
• Power Supply: 2 x AA Batteries (BA 2015 Accupack Optional)
• Operating Time: Approx. 8 Hours
• Dimensions: 82mm x 64mm x 24mm
• Weight: 160g

SKM 100 G4-S Handheld Transmitter

• Frequency Range: E: 823 - 865 MHz
• Compander: Sennheiser HDX
• THD: (less than or equal to) 0.9 %
• Signal-to-Noise Ratio: (less than or equal to) 110 dBA
• RF Output Power: Max. 30 mW
• Switching Bandwidth: up to 42 MHz
• Peak Deviation: ±48 kHz
• Nominal Deviation: ±24 kHz
• Operating Time: Typically 8 h
• Modulation: Wideband FM
• Power Supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current Consumption: at nominal voltage: typ. 180 mA with transmitter switched off: (less than or equal to) 25 μA
• Input Impedance: 40 kohms
• Max. Input Voltage: 3 Veff
• Powering: 3 V battery / 2.4 V rechargeable battery
• Transmission Frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
• AF Frequency Response: 80 – 18,000 Hz
• Temperature Range: -10 °C to +55 °C
• Frequency Stability: (less than or equal to) ±15 ppm
• Dimensions: Approx. Ø 50 x 265 mm
• Weight: 450g

Sennheiser e 835-S Dynamic Microphone

• Microphone Capsule: 835
• Transducer Principle: Dynamic
• Polar Pattern: Cardioid
• Sensitivity: 2.7mV/Pa
• Connector: XLR-3
• Frequency Response (microphone): 40 – 16000Hz
• Nominal Impedance: 350 ohms
• Min. Terminating Impedance: 1000 ohms
• Dimensions: Ø 48 x 180 mm
• Weight: 330g

ME 2 Lavalier Microphone

• Transducer Principle: Pre-Polarized Condenser
• Polar Pattern: Omni-Directional
• Sensitivity: 20mV/Pa
• Sound Pressure Level: 130dB, Maximum
• Frequency Response: 50Hz - 18kHz
• Connector: 3.5mm Jack
• Cable Length: Approx. 1.60m
• Supply Voltage: 7.5V
