Full Description

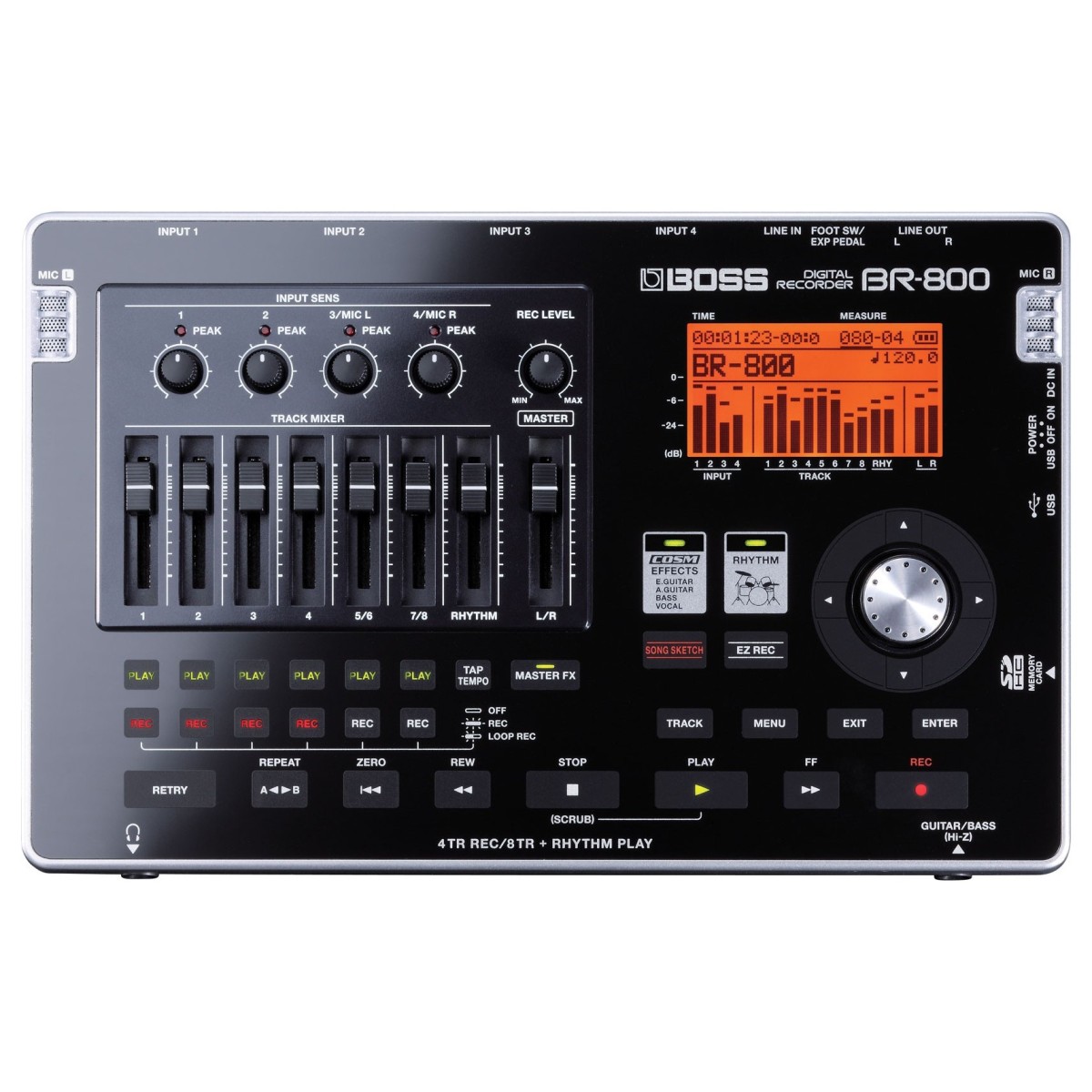

The BOSS BR-800 allows anyone with even the smallest amount of work space to create and edit complex multi-track recording, thanks to a comprehensive number of inputs and outputs, faders and knobs and easily-accessed features all housed within an oh-so-slim chassis.

'EZ' Recording

Whether you're creating intricate, multi-layered songs or point-and-capture field recordings, the BR-800 makes the recording process fast and easy. Beginners will love the new EZ Recording mode which interactively guides you through the recording process. Other helpful features include the convenient RETRY function, which recues automatically to fix mistakes, and SONG SKETCH recording for instant, one-touch capture. There's also a built-in stereo condenser microphone plus a DR-880-quality rhythm generator for adding drum and percussion tracks to your songs.

Onboard COSM Effects

Enhance your recordings with the powerful BOSS effects onboard the BR-800. Many of the effects are derived from BOSS' flagship processors, including vocal effects from the VE-20, COSM guitar/bass effects from the GT-10 series, and modelled acoustic-guitar body effects from the AP-1 preamp, which imparts pro-quality miced-up sound and rich body tone to line-recorded acoustic guitar.

Integration

The BR-800's USB compatibility enables a variety of functionality with computers. Connected to a PC, the BR-800 will function as an USB audio interface for recordings that utilize the internal effects. The BR-800 can also function as a control surface for DAW software.

Record Anywhere!

You can power the BR-800 from the included AC adaptor, or, for ultimate mobility, it can be powered from six AA batteries - you can literally record anywhere!

Features

• 4-track simultaneous recording, 8-track simultaneous playback plus dedicated stereo rhythm track playback
• EZ Recording interactively guides through the recording process
• Powerful guitar, bass, and vocal effects derived from BOSS’s flagship processors
• Song Sketch recording for quick stereo capture in WAV format
• Built-in advanced drum machine with editor software
• Functions as a USB audio interface and DAW control surface
• Cakewalk SONAR LE software available for free
• Built-in stereo condenser microphone for instant recording
• Sleek new interface based on touch sensors
• SD included (supports up to 32GB SDHC card)
• AC adaptor included

Specifications

• Number of Tracker: 8
• Simultaneous Recording Tracks: 4
• V-Track: 64 (8 V-Tracks per Each Track)
• Sample Rate: 44.1kHz
• Frequency Response: 20Hz - 20kHz, +1dB/-3dB
• AD/DA Conversion: 24-Bit
• Storage Card Capacity:
  • SD: 1GB - 2GB
  • SDHC: 4GB - 32GB
• Recording Time: (For Multi-Track Recording)
  • 1GB: 8 Hours 40 Minutes
  • 2GB: 17 Hours
  • 4GB: 34 Hours
  • 8GB: 68 Hours
  • 16GB: 136 Hours
  • 32GB: 272 Hours
• Recording Time: (For SONG-SKETCH)
  • 1GB: 90 Minutes
  • 2GB: 3 Hours
  • 4GB: 6 Hours
  • 8GB: 8 Hours
  • 16GB: 12 Hours
  • 32GB: 48 Hours
• Nominal Input Level:
  • Guitar/Bass: -10dBu
  • Input 1-4: -50dBu - -20dBu (XLR) / +4dBu (1/4'' TRS Jack)
  • Line: -10dBu
• Input Impedance:
  • Guitar/Bass: 1M Ohms
  • Input 1-4: 3k Ohms (XLR) / 47k Ohms (1/4'' TRS Jack)
  • Line: 10k Ohms
• Nominal Output Level: -10dBu
• Output Impedance: 1k Ohms
• Load Impedance:
  • Line Out: 20k Ohms (Or Greater)
  • Headphones: 32 Ohms - 100 Ohms
• Residual Noise Level: -85dBu (Or Less)
• Display: 128 x 64 Backlit LCD

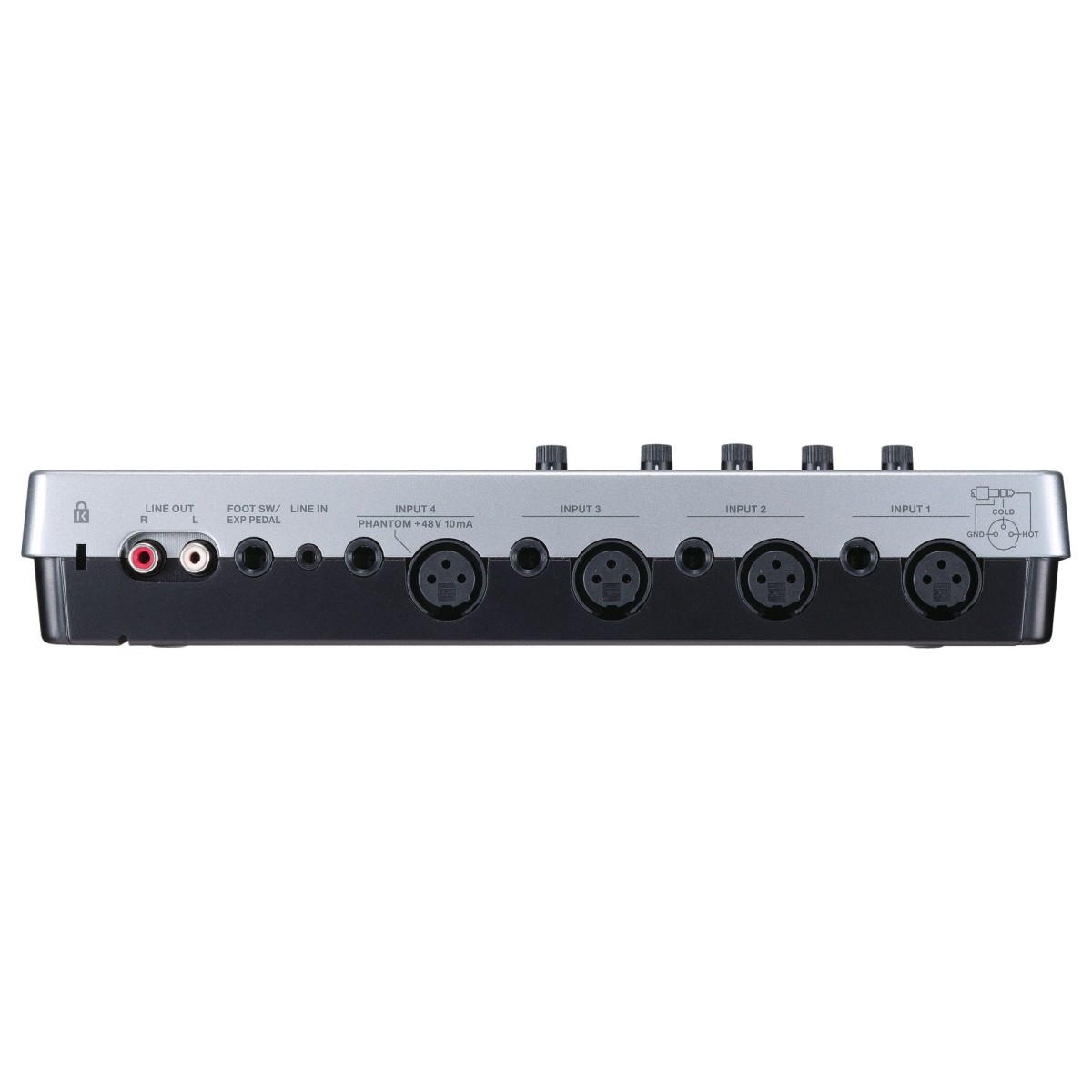

• Connectors:
  • Guitar Bass: 1/4'' Jack
  • Input 1-4: XLR / 1/4'' TRS Jack
  • Line: Stereo Mini Jack
  • Foot Switch/Exp Pedal: 1/4'' TRS Jack
  • Line Out: RCA Phono
  • Headphones: 1/4'' TRS Jack
  • USB Connector
• Dimensions: 289mm x 184mm x 58mm (W x D x H)
• Weight: 890g
