DISC API 560 Discrete 10 Band Graphic EQ

1,043.00 RRP 1,064.00 (including VAT @ 23%)

This product is currently not available for purchase

  • 10 Band Equalizer
  • ''Proportional Q'' Circuitry
  • Silent Bypass Button
  • Ideal For Room Tuning
  • Re-Issue Of 1969 API 560 EQ

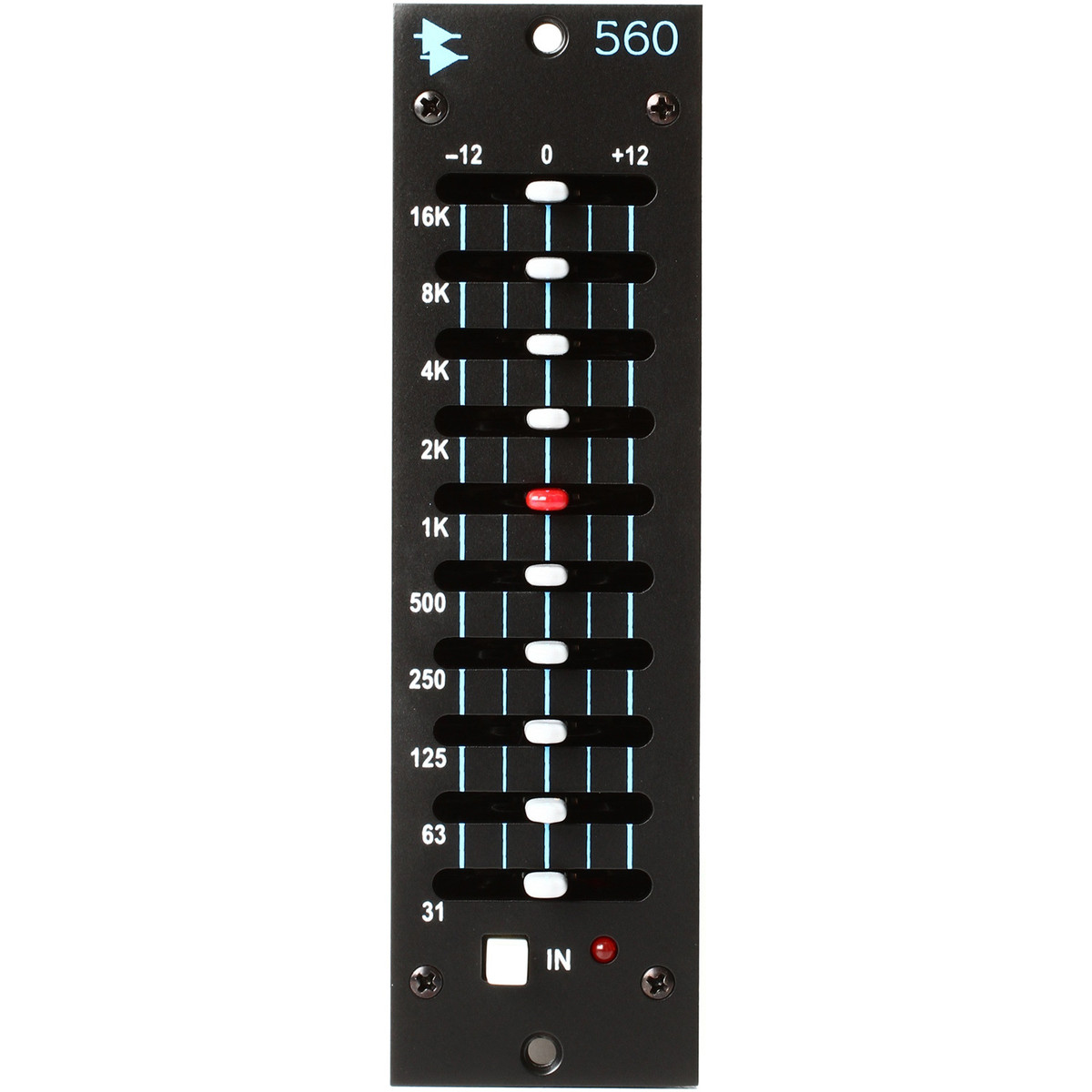

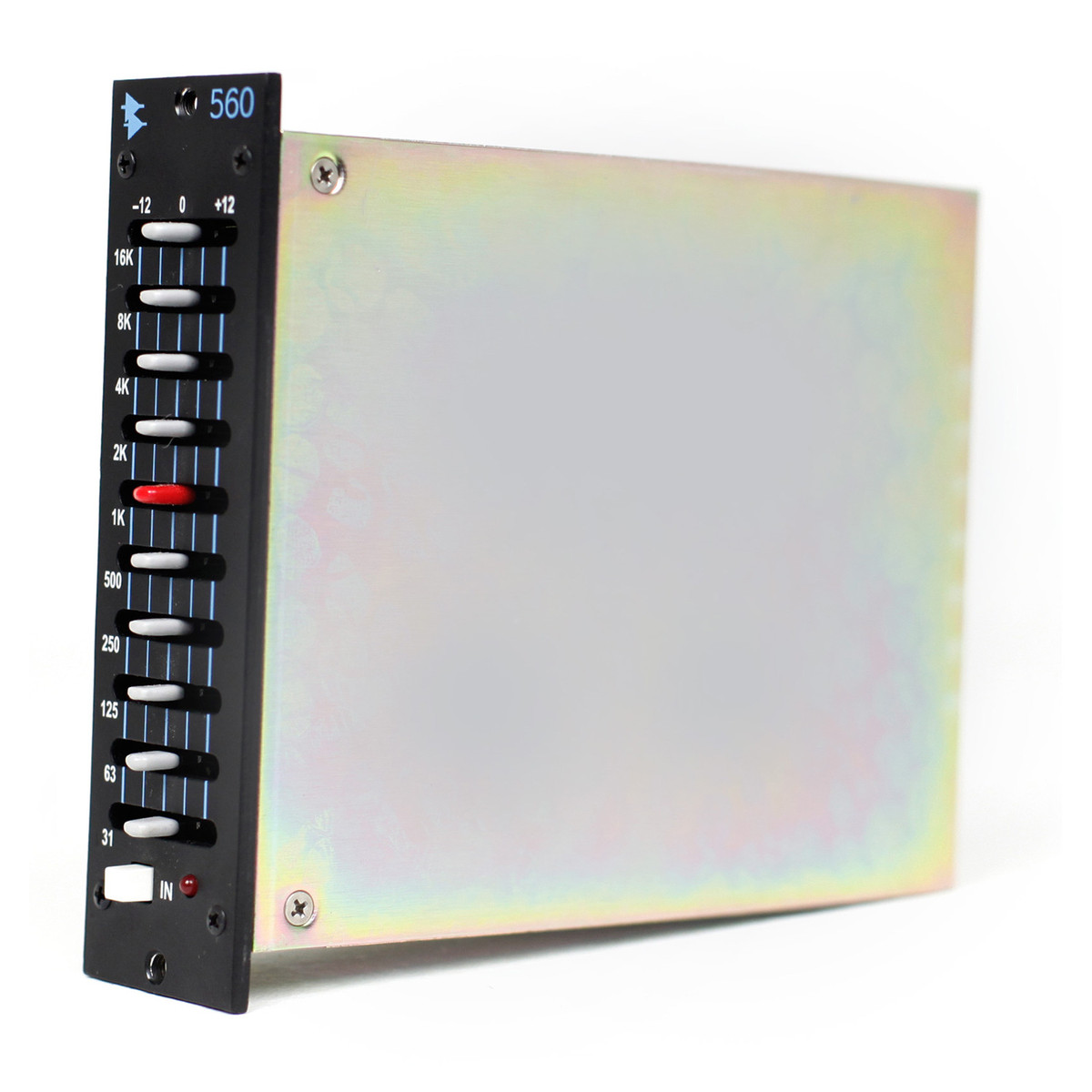

DISC API 560 Discrete 10 Band Graphic EQ

Details
The API 560 Discrete 10 Band Graphic EQ was originally developed for API consoles in the '60s and '70s. Not only does the 560 provide that classic sound and design from API you'd expect in previous units, but it also feature an improved resolution at +/ -4dB. Based on the original 1969 API 560 EQ, this updated version of the classic unit offers consistent analog performance even when using the EQ curves. The low impedance loads result in better low frequency reproduction and tighter imaging, giving you that punchy low-end response API is known for. With 10 precision EQ bands, the 560 is ideal for signal and room tuning. Classic design and quality components make this unit perfect for any sound engineer looking to expand their console unit.

Product Ref: 61729

View Full Description

Full Description

View Full Description

Classic Re-Issue

The 560 was originally developed for use in API Consoles in the 60s and 70s. This re-issue delivers all the features which made the original a keystone in many studios but introduces an improved resolution at +/-4dB. This mixture of new and old makes this re-issue ideal for studio engineers who appreciate the vintage equalization methods but still need the punchy and unique sonic qualities that API are known for.

''Proportional Q'' Control

Saul Walker (The founder of API) designed the ''Proportional Q'' control in the '60s, allowing for the widening of the filter bandwidth at minimal settings whilst narrowing it at higher settings, without the need for additional bandwidth controls. This feature helps to minimise the phase-shift sound found in many equalizer units.

The API 500 Series

The API 500 Series focuses on high sound quality and longevity at an affordable price range. Considering most studio rigs undergo a large amount of swapping and changing between equipment, the API 500 series is designed to last, from its high quality components down to its rugged and durable design.

Features

  • 10 bands of API proprietary equalization
  • Familiar graphics operation on one octave centers
  • 12dB of boost/cut per band
  • "Proportional Q" narrows filter Q at extremes
  • Additional resolution within the +/-4 region
  • Center detent for reliable reset
  • Traditional API fully discrete circuit design
  • Silent bypass button
  • Re-issue of the 1969 API 560 EQ

Specifications

  • Filter Type: Proportional Q, Octave entered, Continuously Adjustable Level
  • Filter Type: "Low" and "High" bands are Peak/Shelf switchable. Low-Mid and Mid-High are peaking type
  • Filter Frequency Centers: 31, 63, 125, 250, 500, 1kHz, 2kHz, 4kHz, 8kHz, 16kHz
  • Filter Boost/Cut: ±12 dB
  • Filter Slope: 12 dB per Octave at full boost or cut
  • Input Impedance: 20 K Resistive, Balanced
  • Output Impedance: Less than 85 Ohms
  • Nominal Levels: -15 to +15 dBu
  • Clipping Level: Better than +28 dBu
  • Frequency Response: 0, -.25, 30Hz to 20kHz
  • Noise: -95 dBu EQ Out, -90 dBu EQ In, Unweighted, 20Hz to 20kHz
  • Distortion: .05 max, at +20 dBu Output
  • Connectors: 15 position .156sp edge connector

For more information on the API 560 please refer to the PDFs above.
