DISC Roland UA-33 TRI-Capture USB Audio Interface

  • Video 1
119.00 RRP 126.50 (including VAT @ 23%)

This product is currently not available for purchase

  • Ultra-stable, low-latency
  • Loop-Back Function for Streaming Internet Applications
  • Triple Inputs and REC Modes
  • USB bus powered
  • Works With Windows (including 8.1), Mac OS X, and iOS

DISC Roland UA-33 TRI-Capture USB Audio Interface


The Power of Three! Triple Inputs & REC Modes - The TRI-CAPTURE USB interface with loop-back, is a unique, compact audio interface optimised for personal and mobile recording, vocal and guitar recording, and streaming-internet applications.

Call our Roland Specialist on: 0843 155 0500 for further information

Product Ref: 19431

View Full Description

Full Description

View Full Description

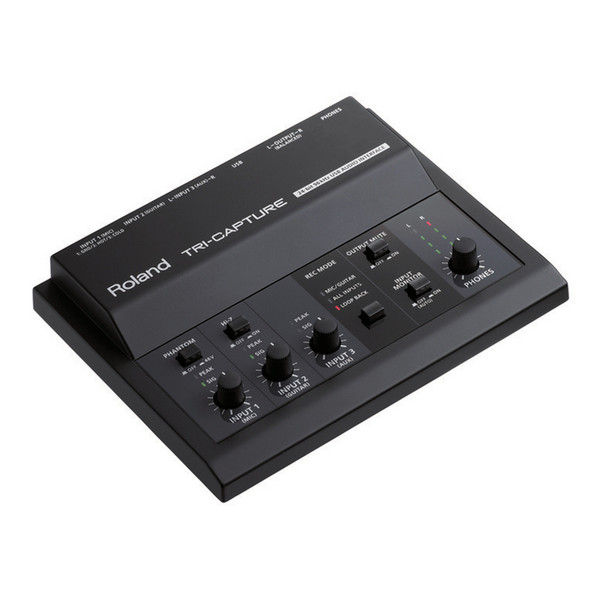

With its mixer-like design and dedicated front-panel controls, TRI-CAPTURE makes it easy to mix, control, and monitor a variety of signals. Plug a microphone into the XLR input, an instrument into the 1/4-inch jack, and a stereo instrument or device into the AUX input.

The unique REC MODE section provides instant selection of recording scenarios, including LOOP BACK for web streaming applications. TRI-CAPTURE is full-featured yet portable, and is USB bus powered for a clean, simple setup.

For more information about Roland’s range of audio interfaces please visit the Roland Website.


  • Compatible with Windows (including Windows 8.1), Mac OS X, and iOS
  • Affordable, easy-to-use interface for guitarists, vocalists, and other musicians
  • Also works great for video production, web streaming, and creating podcasts with unique LOOP BACK function
  • XLR mic input with phantom power, plus 1/4-inch input with Hi-Z switch for connecting a guitar directly
  • Stereo AUX input with dedicated volume control
  • Balanced 1/4-inch TRS outputs and headphone jack
  • Low-latency ASIO driver; recording and playback at rates up to 24-bit/96 kHz
  • USB bus powered with 24-bit/96 kHz operation

  • Number of Audio Record/Playback Channels:

                    - Record: 1 pair of stereo

                    - Playback: 1 pair of stereo

                    - Full duplex (except 96 kHz)

  • Signal Processing: 24 bits (linear)
  • Sampling Frequency: 96 kHz, 48 kHz, 44.1 kHz
  • Nominal Input Level:

                    - Mic input: -60 to -30 dBu

                    - Guitar input: -25 dBu

                    - Line input: -10 dBu

  • Output Level: Output jacks: +4 dBu (input terminated with 1 k ohm, Input Monitor: OFF, IHF-A typ.)
  • Residual Noise Level: -93 dBu typ.
  • Dynamic Range: 100 dB typ.
  • Interface: USB
  • Rec Modes:

                    - MIC/GUITAR

                    - ALL INPUTS

                    - LOOP BACK (expect 96 kHz)

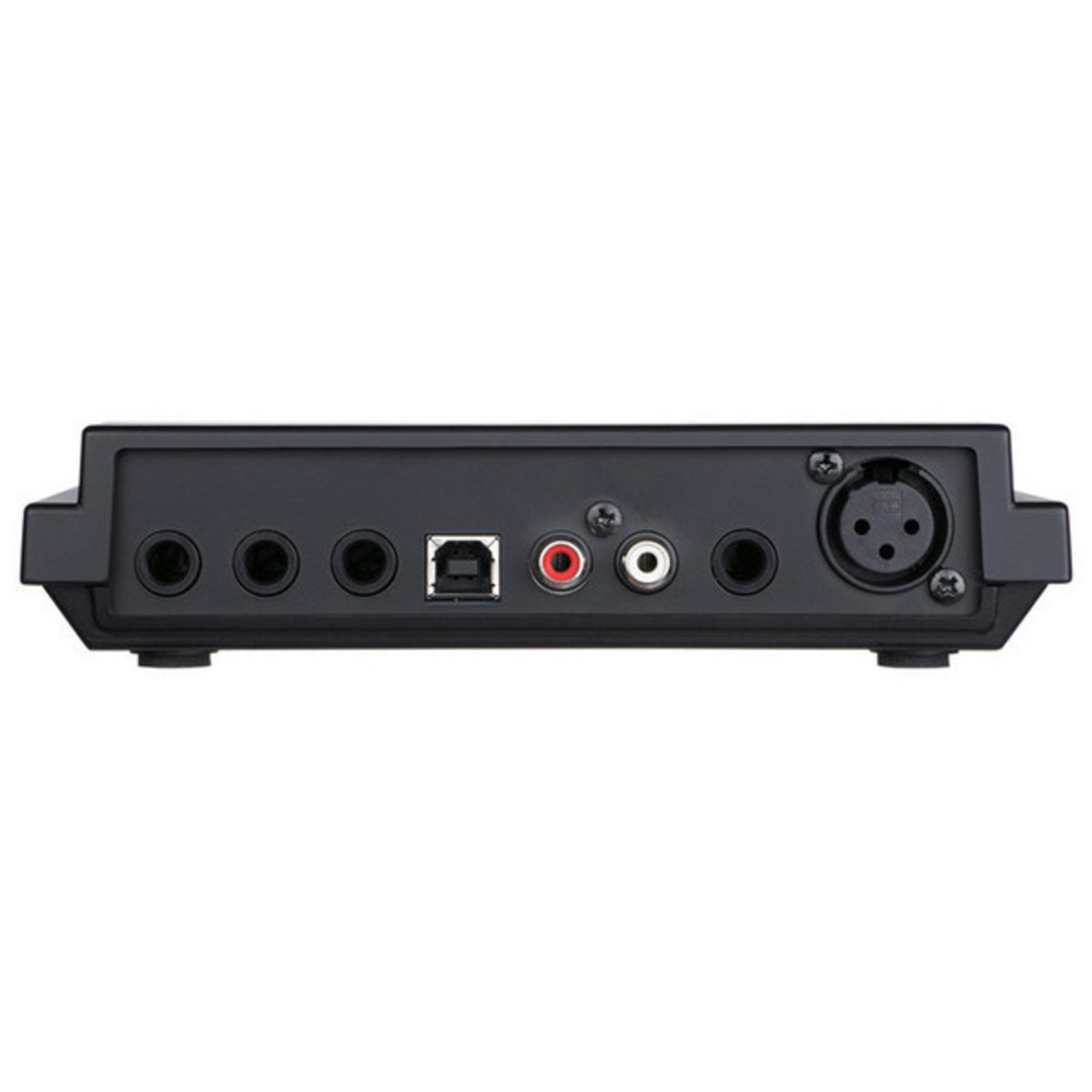

  • Connectors:

                    - INPUT1 (Mic) jack (XLR type, balanced, phantom power DC 48 V, 10mA Max)

                    - INPUT2 (Guitar) jack (1/4-inch phone type)

                    - INPUT3 (AUX) jacks (L, R) (RCA phono type)

                    - Output jacks (L, R) (1/4-inch TRS phone type (balanced))

                    - Headphone jack (Stereo 1/4-inch phone type)

                    - USB connector (USB Type B)

  • Power Supply: Supplied from the computer via USB
  • Current Draw: 450 mA
  • Included Accessories:

                    - Owner's Manual

                    - CD-ROM

                    - USB cable

  • Dimensions:

                    - Width: 171mm (6-3/4")

                    - Depth: 134mm (5-5/16")

                    - Height: 40mm (1-5/8")
