Doepfer A-160-2 Clock Divider II (4HP) - Secondhand

Full Description

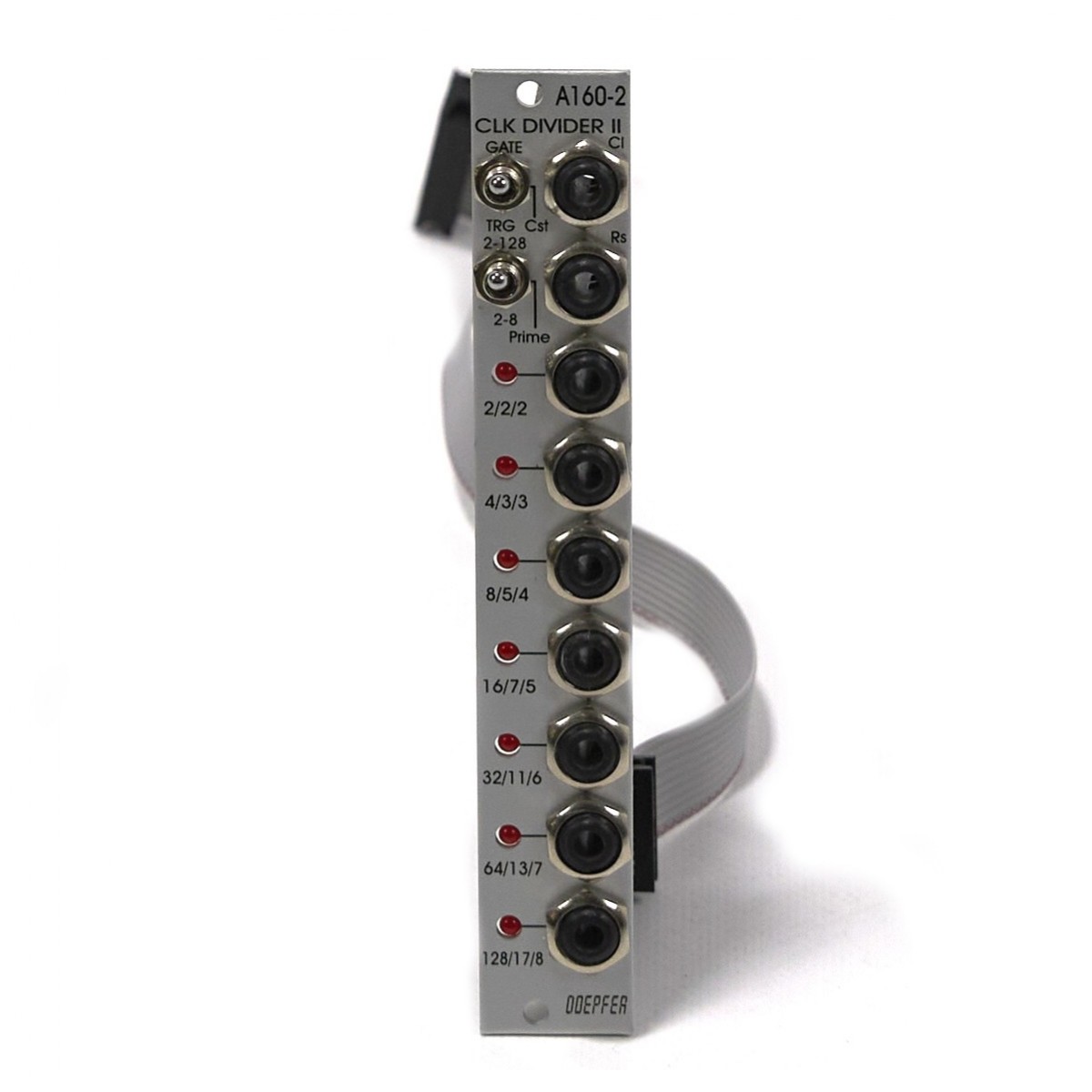

3 Sets Of Dividing Factors

These can be selected using a 3-position switch on the front panel:

• Power Of Two: 2, 4, 8, 16, 32, 64, 128
• Prime Numbers: 2, 3, 5, 7, 11, 13, 17
• Integer: 2, 3, 4, 5, 6, 7, 8

Two Output Modes

These can be selected using a 2-position switch on the front panel:

• Gate Mode: The outputs act the same way the outputs on a typical binary divider would
• Trigger Mode: The outputs are AND-wired with the clock signal (i.e. The clock pulse-width affects the pulse-width of the outputs)

Clock Edge Type

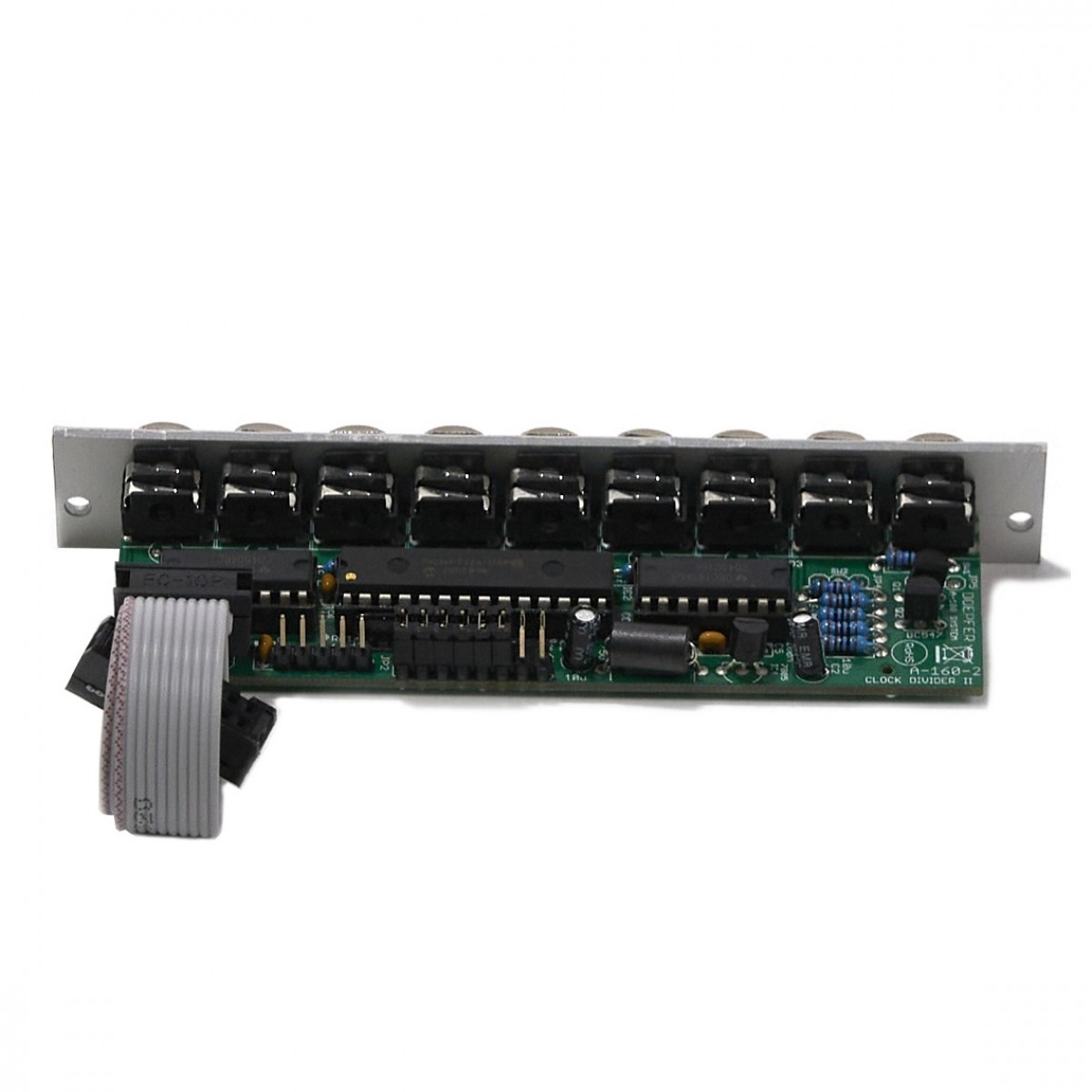

This can be selected by using a jumper on the PCB:

• Positive: The rising edge of the clock signal triggers the state change of the outputs
• Negative: The falling edge of the clock signal triggers the state change of the outputs

Reset Behaviour

This can be adjusted using two jumpers on the PCB:

• Level Triggered: The level at the Reset input triggers the reset
• Edge Triggered: The edge of the signal at the Reset input triggers the reset
• Positive: A high level (greater than 2.5V) or the rising edge at the Reset input triggers the reset
• Negative: A low level (less than 1V) or the falling edge at the Reset input triggers the reset

Output Polarity

This can be selected by using a jumper on the PCB:

• Positive: Non-inverted outputs
• ,b>Negative: All 7 outputs are inverted

Specifications

• Width: 4HP / 20mm
• Depth: 35mm (Measured from the rear side of the front panel)
• Current:
  • +12V: +50mA
  • -12V: -0mA
