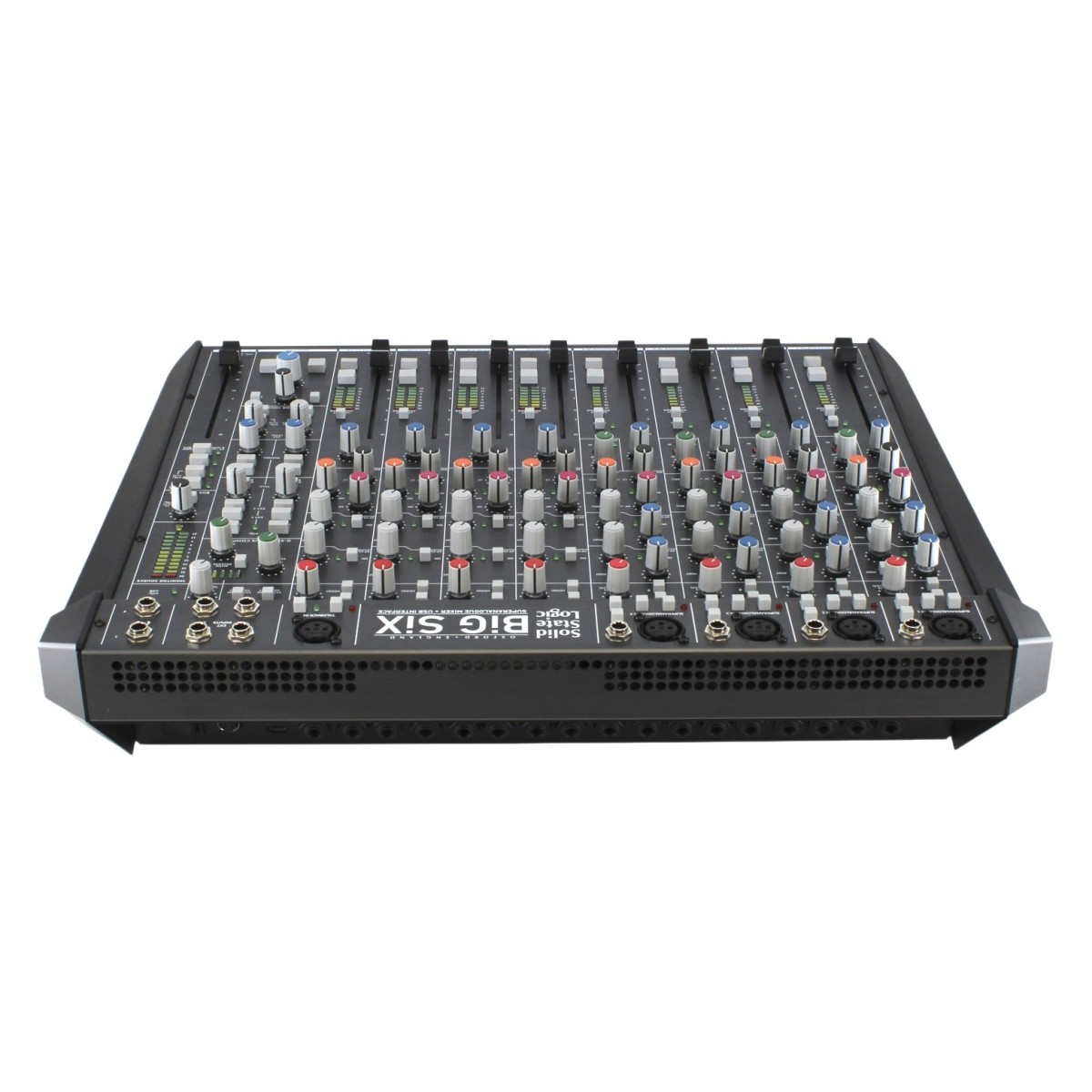

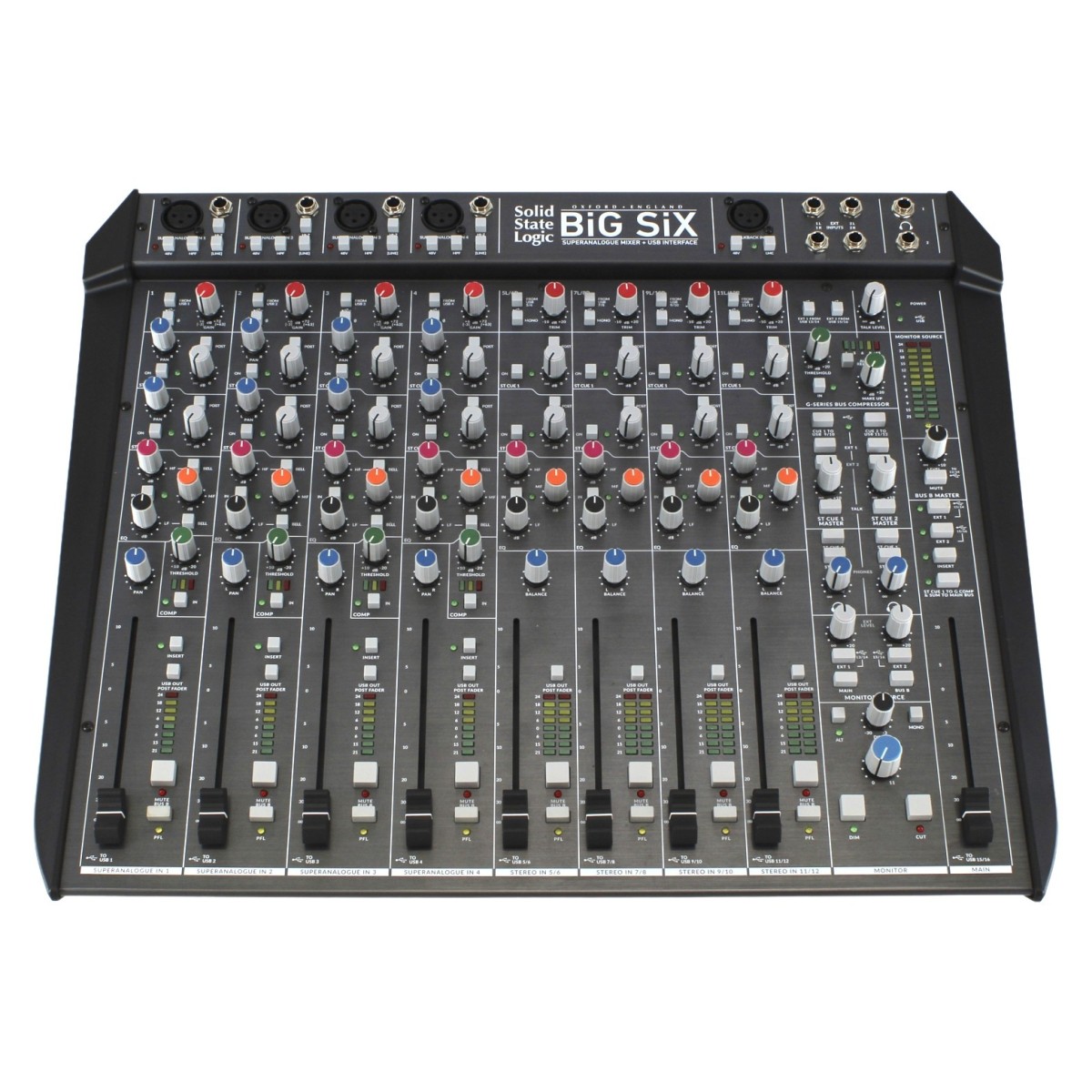

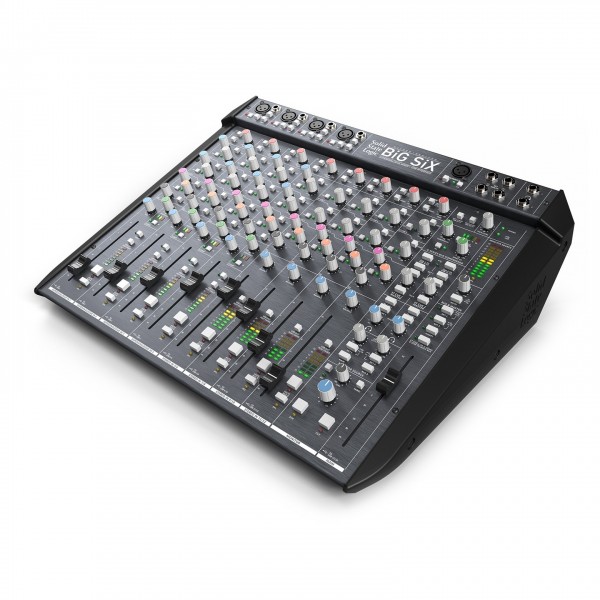

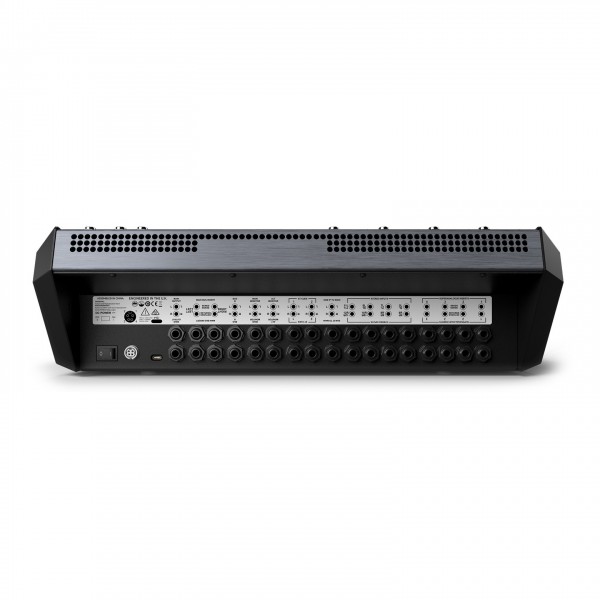

SSL BiG SiX - Secondhand

Full Description

Four SuperAnalogue mono inputs

Four mono channels with SSL SuperAnalogue mic pres - 66dB of gain compared to mid-40s or 50's - provide the main inputs for the Big SiX offering you best in class audio quality. Thanks to its excellent design, the SSL SuperAnalogue design gives you sonic character like no other. The ultra-low noise circuitry means you get perfect sound - every time. The wide dynamic range offers great reproduction no matter what instruments are in your signal chain. It features ultra-low distortion as well as great stereo imaging.

It features Phantom Power to handle any mic you use with it. All four mono channels have a new three-band SSL EQ that may be independently switched between shelf and bell curves, with different centre frequencies for each type. This gives you great control over your signals. The long 100mm faders provide you with accurate controls for setting levels.

Integrated USB interface

Perfect for use with your favourite DAW, the Big SiX features an onboard 96kHz/24-bit USB interface that is compatible with both Mac and PC devices. The interface comes equipped with 16 premium-grade AD/DA converters which are used to process the SuperAnalogue signal chain. Channels 1-12 are distributed across the first 12 inputs and outputs and cane be switched using the pre/post fader. USB channels 13-16 route to/from External inputs and Master buses. Alternatively, sends 9/10 and 11/12 can be fed from the stereo cue buses.

G-Series Bus Compressor

Taken from the SL G-Series console, the BiG SiX incorporates the powerful G-Series Bus Compressor across the mix bus – perfect for ‘glueing’ your sound together for a cohesive production. This iconic compressor circuit features the same topology as the original design. Use it as a starting point for your mix or add some energy and drive to your finished product. It features ‘set and forget’ settings that are renowned for their versatility from larger format SSL consoles.

The legendary SSL channel compressor

Get the classic SSL sound with the onboard channel compression. You can use the compressor for a variety of applications from audio refinement to adding unique character and punch. Designed for versatility, you can use the onboard controls to dial in your required sound. For example, setting the attack time between 8ms-30ms, the release time to around 300ms and with a 2:1 ratio; the compressor will work across a myriad of different audio content. This is just one of the three compression flavours the BiG SiX provides.

Veratile routing options

Professional routing and monitoring features allow you to take full control over your mixdown. These routing paths are taken directly from the larger SSL consoles. The Master section includes main and alt monitor outputs with mono check, dim and out. Giving you deep control over your output. The fader channels all have proper PFL and mute. It even comes with a talkback mic input with Phantom Power to help you keep in touch with your talent.

Specifications

• Gain: Variable from +6 dB to +72 dB (dependent on potentiometer tolerances)
• Input Impedance: 1.2 k ohms
• Max Input Level (1 percent THD): 21 dBu
• Output Headroom: > +27 dBu at onset of clipping
• Frequency Response:
  • 20 Hz to 20 kHz: - +0.0/-0.2 dB
  • -3 dB high rolloff: > 80 kHz
• THD+Noise (-20 dBu applied, +30 dB gain) @ 1 kHz (filter 22 Hz to 22kHz): < 0.0015 percent
• CMRR (-10 dBu applied, +30 dB gain) @100 Hz: > 90 dB
• Equivalent Input Noise EIN (150 ohms termination, maximum gain): < 127.5 dBu (typically -129 dBu)

• Gain: Variable from -3 dB to +63 dB (dependent on potentiometer tolerances)
• Input Impedance: 10 k ohms
• Hi-Z Input Impedance: 1 M ohms
• Max Input Level (1 percent THD): >+27 dBu before clipping
• Output Headroom: > +27 dBu at onset of clipping
• Frequency Response:
  • 20 Hz to 20 kHz: +0.0/-0.2 dB
  • -3 dB high rolloff: > 80 kHz
• THD+Noise (-20 dBu applied, +30 dB gain) @ 1kHz (filter 22 Hz to 22 kHz): < 0.0015 percent
• CMRR (-10 dBu applied, +30 dB gain) @100 Hz: > 80 dB
• Equivalent Input Noise EIN 150 ohms termination, maximum gain: < -120 dBu

• Output Headroom: > +27 dBu at onset of clipping
• THD+Noise +20 dBu @ 1 kHz (filter 22 Hz to 22 kHz): < 0.0015 percent
• Noise: <-87.5 dBu

• Ratio (slope): 2:1
• Threshold: +10 to -20 dB (typical)
• Attack Time: 5 ms
• Release Time: 300 ms
• Output Headroom: > +26 dBu at onset of clipping
• THD+Noise:
  • +10 dBu @ 1 kHz (filter 22 Hz to 22 kHz): < 0.07 percent
  • +20 dBu @ 1 kHz (filter 22 Hz to 22 kHz) Threshold @-20: < 0.7 percent (typical)
• Frequency Response (20 Hz to 20 kHz): +0.2/-0.4 dB
• Noise: < -87.5 dBu

• Gain: Variable from -10 dB to +20 dB
• Input Impedance: 10 k ohms
• Max Input Level 1 percent THD: > +27.5 dBu before clipping
• Output Headroom: > +27 dBu at onset of clipping
• Frequency Response:
  • 20 Hz to 20 kHz: +0.0/-0.2 dB
  • -3 dB high rolloff: > 100 kHz
• THD+Noise (-20 dBu applied, +30 dB gain) @ 1 kHz (filter 22 Hz to 22 kHz): < 0.001 percent
• CMRR: > 55 dB
• Equivalent Input Noise EIN (150 ohms termination, maximum gain): < -93 dBu

• Output Headroom:
  • Into 600 ohms at onset of clipping: > 24 dBu
  • Into 10 k ohms at onset of clipping: > 27.5 dBu
• THD+Noise +20 dBu @ 1 kHz (filter 22 Hz to 22 kHz): < 0.0015 percent
• Frequency Response:
  • 20 Hz to 20 kHz: +0.0/-0.2 dB
  • -3 dB high rolloff: > 80 kHz
• Output Impedance: 100 ohms
• Pot centre detent accuracy: +/-1 dB, typically < 0.5 dB

• Alignment Level (0 dBFS): +24 dBu
• THD+Noise:
  • DAC -10 dBFS @ 1 kHz (filter 22 Hz to 22 kHz): 0.001 percent
  • ADC -4 dBFS @ 1 kHz (filter 22 Hz to 22 kHz): 0.0007 percent
• Dynamic Range:
  • DAC A-weighted: 117dB
  • ADC A-weighted: 117 dB

• Height (from table top inc. feet): 141.2 mm / 5.6"
• Width:
  • 437.2 mm / 17.2" (Excluding Trim)
  • 489.4 mm / 19.3" (Including Trim)
• Power: 38 Watts
• Unboxed Weight: 6.8 kg / 15.0 lbs (Console excluding PSU)
• Boxed Weight: 10.1 kg / 22 lbs
• Product Code: SSL0112
