Legendary sound that won't break the bank
The Vintage 87 strips the concept of a classic studio microphone back to what actually matters in day-to-day recording. By removing pattern switching and committing to a true cardioid response, the signal path becomes more direct and efficient. This results in a cleaner output with a slightly hotter level, which can make gain staging easier at the preamp. It also means fewer variables when positioning the microphone, so you can place it with confidence and get repeatable results. In practical terms, this is the kind of microphone you can set up quickly and trust to behave predictably across different sessions.
Capsule design that holds its balance

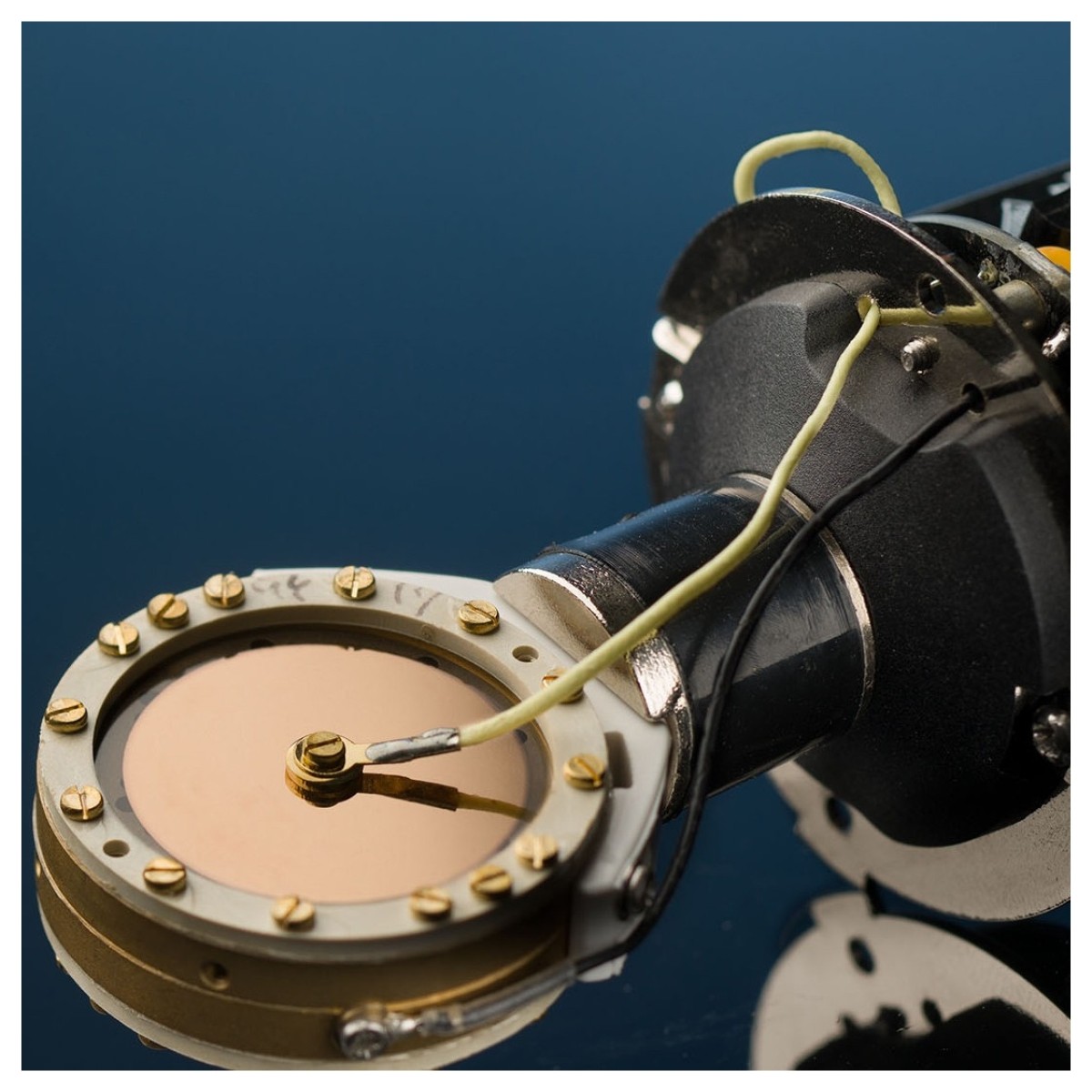

The UT-K87 capsule is central to how this microphone performs. It uses a dual-diaphragm, dual-backplate design, precision milled from brass and fitted with a 6 micron PET film diaphragm with a 24k gold sputtered surface.
The premium-grade components and high-end design deliver a tonal balance associated with classic designs, with a controlled low end, a forward but not aggressive midrange, and a top end that retains detail without exaggeration. It is particularly effective on vocals and acoustic sources where you need clarity and presence without harshness, and it holds that balance across a wide range of input levels.

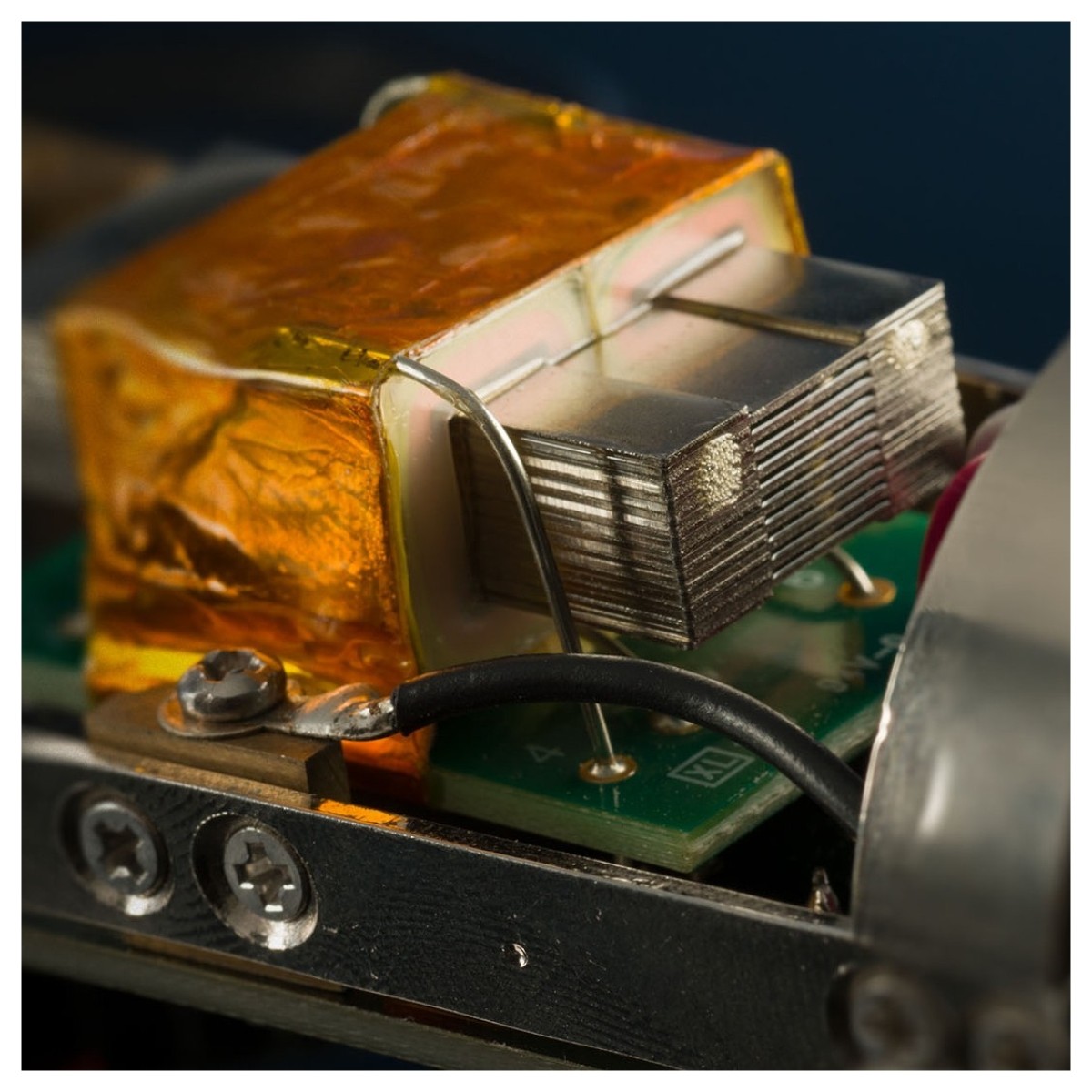

Transformer that maintains depth and headroom
The output transformer is not an afterthought here. United’s custom-wound design uses large, all-nickel laminations and significantly more core material than many comparable microphones. That extra mass allows the signal to pass without the low-frequency loss or compression that can occur in smaller transformers. As a result, you retain a sense of weight and depth in the recording, along with a clear, three-dimensional presentation.
The microphone also handles higher sound pressure levels effectively, reaching up to 127 dB with the pad engaged, so it can be used on louder sources without collapsing or distorting.
Component quality that supports long-term use

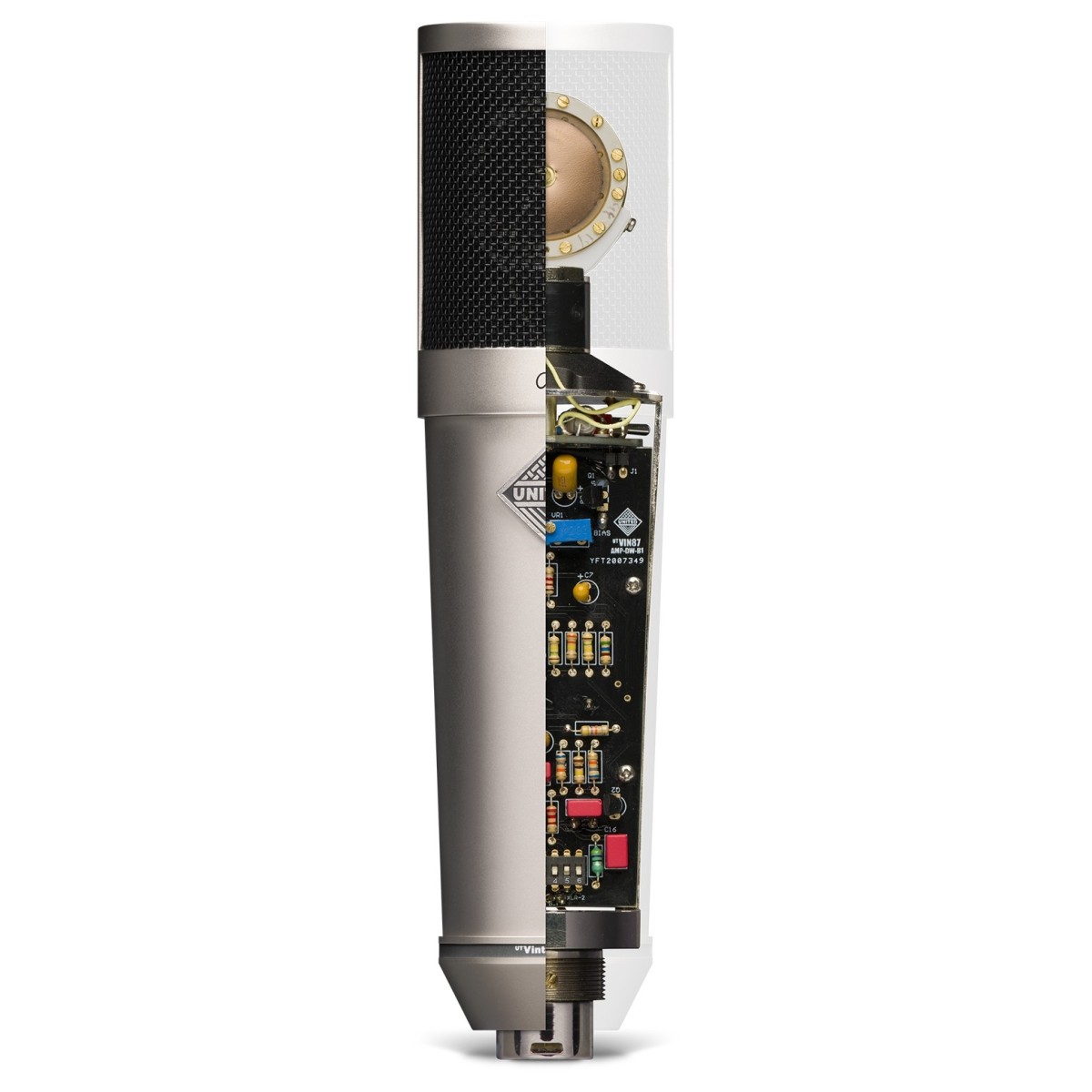

Internally, the Vintage 87 uses a range of high-grade components, including polystyrene, tantalum, multilayer ceramic, and WIMA film capacitors, along with metal and carbon film resistors and carefully selected transistors. This is combined with a field effect transistor amplifier design to maintain a stable and low-noise signal path, with self-noise kept below 10 dB.
The Vintage 87 features a range of onboard sound shaping tools including a 80 Hz high-pass filter and -10 dB pad. The gold-plated XLR output and included shockmount make it suitable for regular studio use without additional setup complications.
Features
- Classic studio tone inspired by iconic condenser microphone designs
- Simplified version focused on a fixed cardioid pickup pattern for consistent results
- Custom large diaphragm capsule built with gold coated dual membranes
- Precision machined brass capsule housing for durability and accuracy
- High quality PET film diaphragm crafted in controlled clean room conditions
- Custom US made output transformer designed for enhanced signal depth and clarity
- Expanded transformer mass supports strong low end and high headroom performance
- Carefully selected premium components for reliable and refined audio output
- FET based circuitry delivering clean and detailed sound reproduction
- Wide frequency range capturing both low and high detail with balance
- Low self noise suitable for professional recording environments
- Switchable filter reduces unwanted interference from external sources
- Integrated pad option allows handling of louder sound sources
- Durable brass body with nickel plating for long lasting build quality
- Gold plated XLR connection ensures stable signal transfer

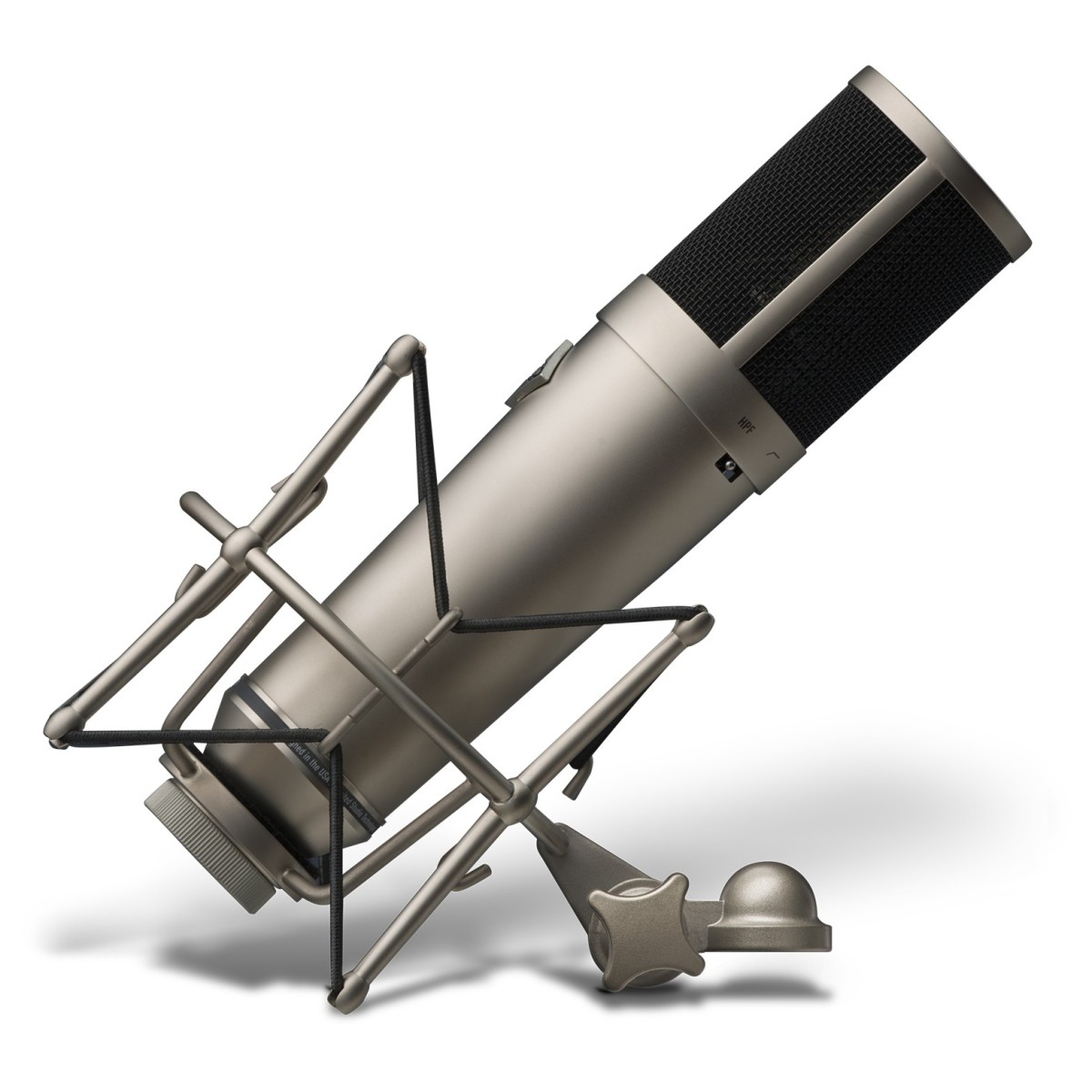

- Includes suspension shock mount to minimize vibration noise
- Powered by standard 48 volt phantom power for studio compatibility
- Designed for timeless performance with modern accessibility
Specifications
- Type: Condenser Microphone
- Capsule: UT Series, 34mm Brass, Insulated Dual Backplate K87
- Diaphragm: Dual-diaphragm, 6 Micron, 24k Gold Sputtered Mylar (Pet Film)
- Capsule Sensitivity: -34db @ 60v
- Frequency Response: 20 Hz - 20 Khz
- Polar Pattern: Cardioid
- SPL: 117 dB (127 dB W/ Pad) @ <.5 THD
- Output Impedance: 27 ?
- Output Connector: 24k Gold Plated XLR, Pin 2 Hot, Pin 1 Gnd
- Amplifier Type: Field Effect Transistor
- Self Noise: <10 dB
- Output: Custom-wound UT Series Transformer, Made In USA
- High Pass Filter: 80hz (12 dB Down Point)
- Pad: -10 dB
- Body: Nickel Electroplated, Solid Milled Brass
- Mount: Suspension Type Shock Mount (Included)
- Ground: Pin 1 XLR(Required)
- Power Input: 48v Phantom Power (Via XLR)
- Included Accessories: Vintage-style Pouch, Shockmount
- Microphone Height: 220 Mm / 8.6″
- Microphone Diameter: 55 Mm / 2.2″
- Shockmount Depth: 118 Mm / 4.64″ - 178mm / 7″
- Product Code: 11002485
